Crimson Trace LG-305 Lasergrips User Manual

Mahsulot tugadiview

The Crimson Trace LG-305 Lasergrips are designed for Smith & Wesson J-Frame revolvers with a round butt. These Lasergrips feature an extended grip length compared to the LG-405, providing enhanced handling. The laser is instinctively activated when the firearm is held in a natural shooting grip, thanks to a front-activated sensor. Constructed with a durable rubber overmold material over a polymer base, the LG-305 offers a secure and comfortable hold.

This product is compatible with various Smith & Wesson J-Frame models, including Airlight, Airweight, Bodyguard, Chief’s Special, Centennial, Ladysmith, and specific models like 36, 37, 38, 49, 60, 63, 317, 331, 332, 337, 340, 342, 351, 360, 442, 637, 638, 640, 642, 649, 651, and 940, provided they have a round butt frame.

Asosiy xususiyatlar

• Yorqinlik: Features a 5mW peak, 620-670nm, Class 3R visible red laser, which is the brightest beam allowed by law.
• Foydalanish qulayligi: Instinctive Activation button engages the laser immediately when the firearm is held in a normal firing grip. This distinguishes Crimson Trace products.
• Ish vaqti: Provides over 4 hours of continuous battery life.
• Ishonchlilik: User-installable with no gunsmithing required. Factory sighted at 50 feet, with full user adjustability for Windage and Elevation using the provided tool.
• Moslik: Specifically designed to fit Smith & Wesson J-Frame Round Butt Revolvers.
• Lazer xususiyatlari: Class IIIA (IIIR) Red laser sight with a maximum output power of ≤ 5mw, wavelength of 650 nm, and a beam range of 40 meters in high illumination (lux) direct sunlight conditions to over 400 meters at night.

O'rnatish va sozlash

The LG-305 Lasergrips are designed for user installation and do not require professional gunsmithing. Follow these steps for proper installation and initial setup:

1. Birinchi navbatda xavfsizlik: Ensure the firearm is unloaded and cleared before beginning any installation or maintenance. Remove all ammunition from the area.
2. Remove Existing Grips: Carefully remove the existing grips from your Smith & Wesson J-Frame revolver according to the firearm manufacturer's instructions.
3. Install Lasergrips: Position the Crimson Trace LG-305 Lasergrips onto the revolver frame. Ensure proper alignment with the grip screw hole.
4. Secure Grips: Use the provided hardware to secure the Lasergrips firmly to the frame. Do not overtighten.
5. Batareyani o'rnatish: Install the batteries into the designated compartment within the Lasergrips. Ensure correct polarity.
6. Dastlabki funktsiyani tekshirish: With the firearm still unloaded and pointed in a safe direction, activate the laser by gripping the firearm naturally. Verify the laser beam is emitted.

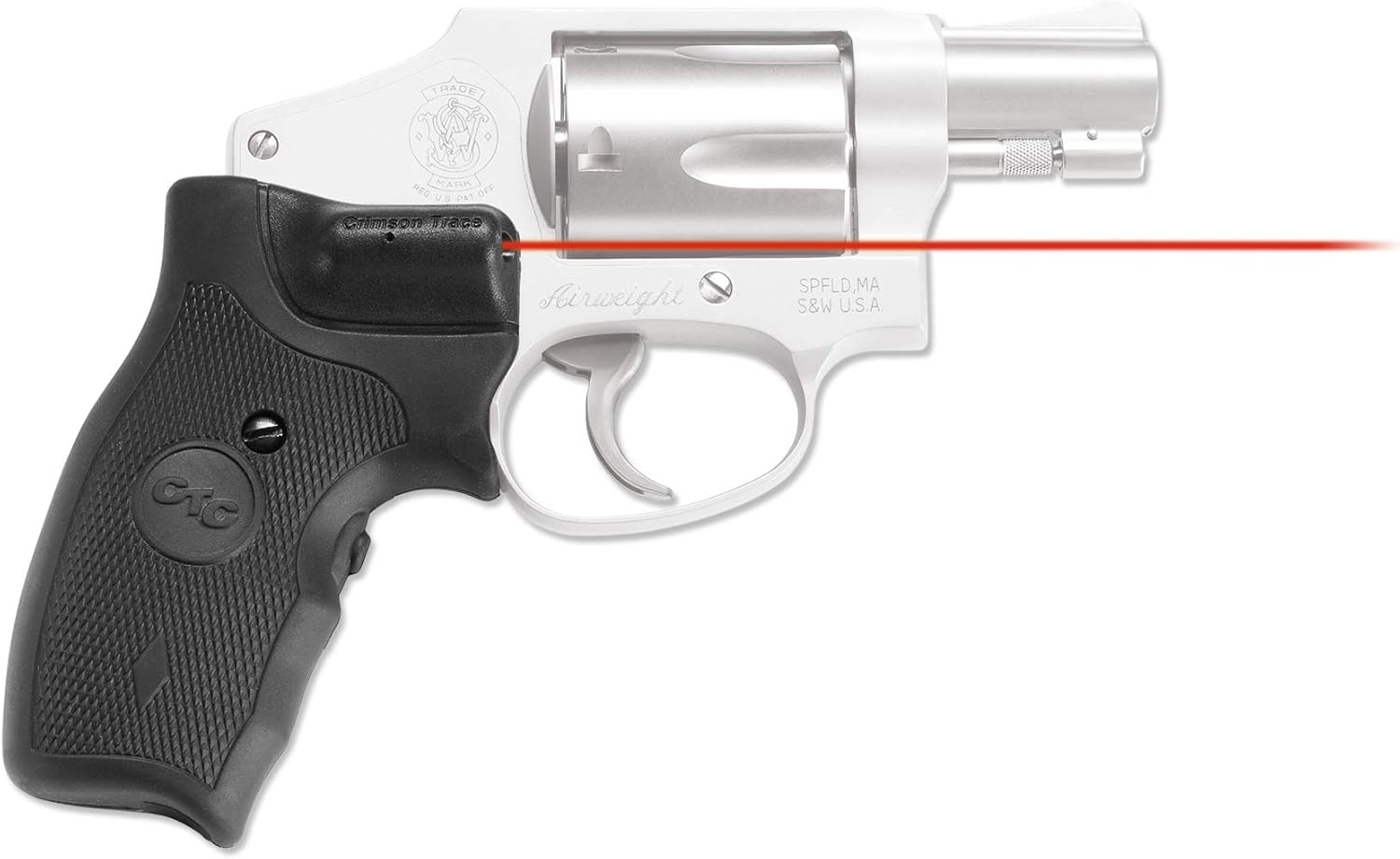

Image: Crimson Trace LG-305 Lasergrips installed on a Smith & Wesson J-Frame revolver, demonstrating the laser activation and beam path.

Foydalanish bo'yicha ko'rsatmalar

The LG-305 Lasergrips are designed for intuitive operation. The primary method of activation is through the Instinctive Activation™ system.

1. Instinctive Activation: The laser is designed to activate automatically when you assume a natural firing grip on the revolver. Pressure from your hand on the front activation pad will turn the laser on.
2. Asosiy yoqish/o'chirish tugmasi: For situations where the laser is not desired, a master on/off switch is located on the grip. This allows you to completely disable the laser function. Refer to the diagram below for its location.
3. Shamol va balandlikni sozlash: The laser is factory sighted at 50 feet. However, you can fine-tune the point of aim using the provided adjustment tool.
   • Shamolni sozlash: Adjusts the laser horizontally (left/right).
   • Balandlikni sozlash: Adjusts the laser vertically (up/down).
   Make small adjustments and test the laser's point of impact to achieve desired accuracy.

Image: Detailed diagram highlighting key operational features of the LG-305 Lasergrips, including adjustment points and activation methods.

Xizmat

Proper maintenance ensures the longevity and reliable performance of your Crimson Trace LG-305 Lasergrips.

• Tozalash: Use a soft, dry cloth to wipe down the Lasergrips. Avoid using harsh chemicals or abrasive cleaners, as these can damage the rubber overmold or laser components.
• Batareyani almashtirish: Replace batteries as needed to maintain optimal laser brightness and runtime. Refer to the specifications for battery type. Always dispose of old batteries responsibly.
• Saqlash: Store the Lasergrips in a cool, dry place, away from extreme temperatures and direct sunlight. If storing for extended periods, consider removing the batteries to prevent leakage.
• Tekshirish: Periodically inspect the grips for any signs of wear, damage, or loose components. Ensure the grip screws remain secure.

Muammolarni bartaraf qilish; nosozliklarni TUZATISH

If you encounter issues with your LG-305 Lasergrips, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Crimson Trace customer support for further assistance.

Texnik xususiyatlari

Kafolat va qo'llab-quvvatlash

Kafolat: This product is covered by the Crimson Trace Protect Limited Lifetime Warranty. For detailed information regarding the warranty policy, please visit the official Crimson Trace websayt.

Qo'llab-quvvatlash: For any questions, concerns, or technical assistance not covered in this manual, please refer to the support section of the Crimson Trace website or contact their customer service directly. A user guide in PDF format is also available for download from the product's Amazon page for additional reference.

Official Warranty Information: https://www.crimsontrace.com/support/warranty
