1. Mahsulot tugadiview
The A-ZONE AZB4 Wireless Outdoor Security Camera System provides comprehensive surveillance with its 13.3-inch IPS monitor and four 3MP cameras. Designed for easy installation without complex wiring, this system features advanced functionalities such as audio recording, multiple recording modes, motion detection, and remote viewing capabilities. The IP66 waterproof and dustproof rating ensures reliable performance in various outdoor conditions.
1 -rasm: tugadiview of the A-ZONE Wireless Outdoor Security Camera System, showing the 13.3-inch monitor and four cameras.
Asosiy xususiyatlar:
- Oson sozlash: Wireless connection between cameras and NVR. Pre-paired for plug-and-play functionality. No internet required for local viewing.
- Yuqori aniqlik: 3MP (2048x1536) cameras with a 13.3-inch IPS monitor for clear, detailed images.
- Tungi ko'rish: 24 infrared LEDs and IR-CUT for clear night vision up to 20 meters.
- Audioyozuv: Built-in microphone for simultaneous video and audio recording.
- Bir nechta yozish rejimlari: Continuous, motion detection, schedule, manual, and infrared recording options.
- Kengaytiriladigan tizim: 8-channel NVR supports up to 8 cameras (4 included, 4 expandable).
- Repeater Function: Extends Wi-Fi range for cameras, doubling communication distance.
- Ob-havoga chidamli: IP66 waterproof and dustproof rating for outdoor use.
- Masofaviy monitoring: View jonli footage and playback via mobile app.
2. Paket tarkibi
Quyida sanab o'tilgan barcha narsalar paketingizga kiritilganligini tekshiring. Agar biror narsa etishmayotgan yoki shikastlangan bo'lsa, mijozlarni qo'llab-quvvatlash xizmatiga murojaat qiling.

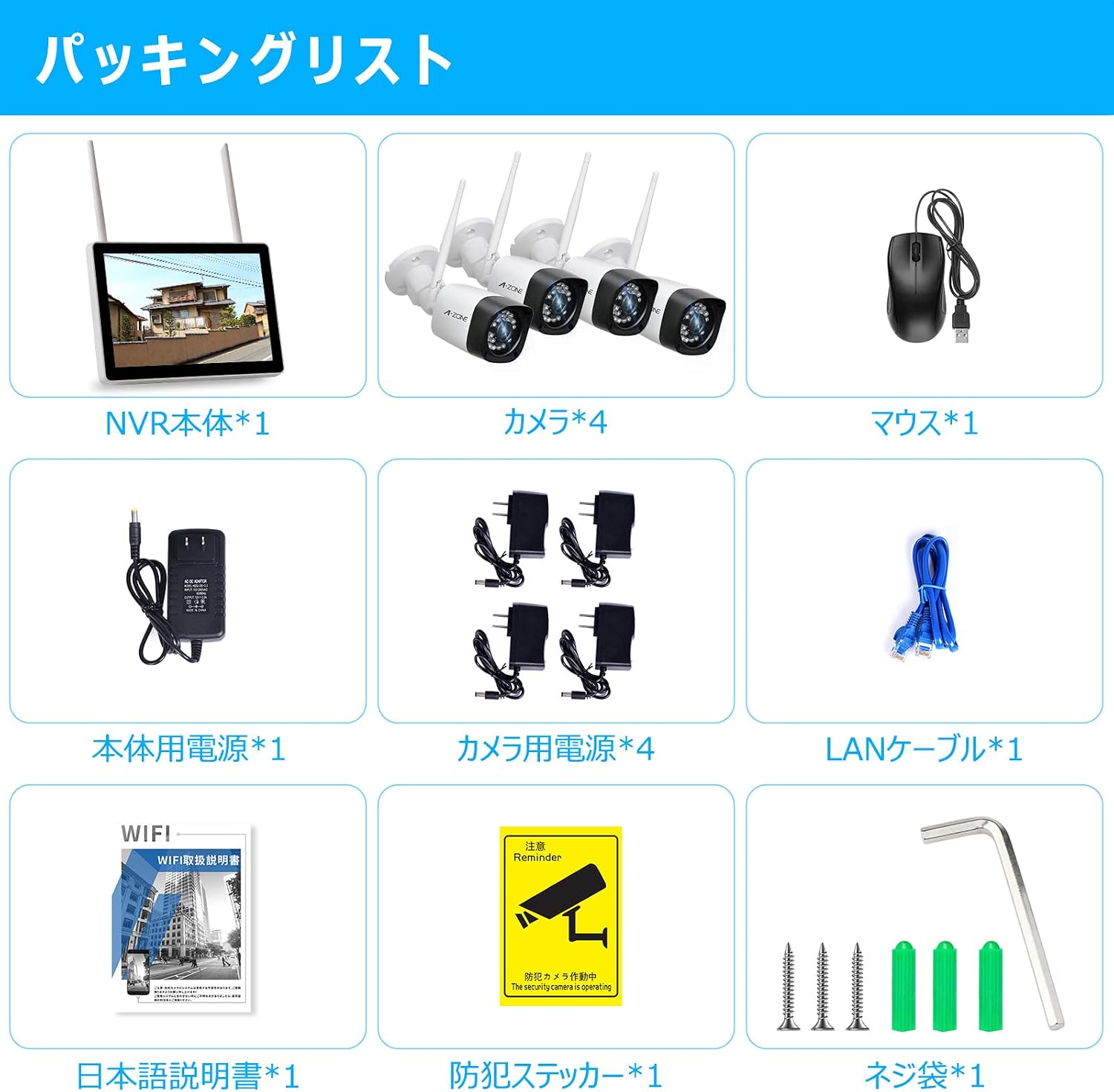

Figure 2: Visual representation of the package contents.
Kiritilgan narsalar:
- 1x 13.3-inch IPS NVR Monitor
- 4x 3MP Wireless Cameras
- 1x NVR quvvat adapteri
- 4x Camera Power Adapters
- 1 x USB sichqoncha
- 1x LAN Cable
- 1x Instruction Manual (Japanese)
- 1x Xavfsizlik Stikeri
- O'rnatish vintlari va aksessuarlar
Video: Introduction of Accessories
Video 1: This video provides a detailed introduction to the accessories included in the 10-inch monitor wireless security camera set. It demonstrates each component and its purpose, helping users identify all parts before installation.
3. O'rnatish bo'yicha ko'rsatmalar
The A-ZONE security camera system is designed for easy installation. Follow these steps to set up your system.
3.1 Kamera o'rnatish
Cameras can be mounted on walls or ceilings using the provided screws. Ensure the mounting location provides a clear view and stable Wi-Fi signal.
Figure 3: Illustration of camera installation and connection points on the NVR.
Video: Wireless Security Camera Installation Demo
Video 2: This video demonstrates the step-by-step process of installing a wireless security camera, including marking drill points, drilling, inserting anchors, and securing the camera with screws.
3.2 Tizim ulanishi
Connect the cameras to the NVR and power outlets. The system is pre-paired, so cameras should automatically connect to the NVR once powered on.
Figure 4: Close-up of the NVR monitor's ports, including HDMI, LAN, USB, and power input.
Video: Initial Operation Procedure
Video 3: This video guides users through the initial setup and connection of the security camera system, including connecting power, LAN cables, and the mouse, followed by language selection and camera detection on the monitor.
4. Foydalanish bo'yicha ko'rsatmalar
Learn how to use the various features of your A-ZONE security camera system.
4.1 Yozib olish rejimlari
The system offers five recording modes to suit your surveillance needs:
- Doimiy qayd qilish: Yozuvlar 24/7.
- Harakatni aniqlashni yozib olish: Records automatically when motion is detected. Customize sensitivity and detection areas to reduce false alarms.
- Yozib olish jadvali: Set specific time periods for recording.
- Qo'lda yozib olish: Start recording manually via the monitor.
- Infrared Recording: Records clear images in complete darkness using infrared.
Figure 5: Visual representation of the various recording modes available.
4.2 masofadan boshqarish pulti Viewing
Monitor your property remotely using the dedicated mobile application on your smartphone or tablet, or via PC.
Figure 6: Screenshot showing remote viewing of camera feeds on a smartphone.
Video: Product Function Introduction
Video 4: This video highlights the key functions of the product, including motion detection, remote viewing, and night vision capabilities.
4.3 Tungi ko'rish
The cameras are equipped with 24 infrared LEDs and IR-CUT technology, automatically switching between day and night modes to provide clear images even in complete darkness up to 20 meters.
Figure 7: Comparison of day and night vision footage from the camera, demonstrating clarity in low-light conditions.
5. Xizmat ko'rsatish
Regular maintenance ensures optimal performance and longevity of your security camera system.
- Toza linzalar: Periodically wipe camera lenses with a soft, damp chang va dog'larni olib tashlash uchun mato.
- Ulanishlarni tekshiring: Barcha quvvat va tarmoq kabellari xavfsiz ulanganligiga va shikastlanmaganligiga ishonch hosil qiling.
- Dasturiy ta'minot yangilanishlari: Check for and install any available firmware updates for the NVR and cameras to enhance security and features.
- Saqlash boshqaruvi: Muntazam ravishda qaytaview foo qayd etilditage and manage storage space on the 1TB HDD. Back up important recordings as needed.
- Quvvatlantirish manbai: Ensure cameras and NVR receive stable power. Avoid exposing power adapters to extreme weather.
6. Muammolarni bartaraf qilish; nosozliklarni TUZATISH
If you encounter issues with your A-ZONE security camera system, refer to the following common troubleshooting steps:
- Monitorda tasvir yo'q:
- Check if the NVR monitor is powered on.
- Ensure all cameras are powered on and within range of the NVR.
- Verify camera-NVR pairing. If necessary, re-pair cameras according to the full manual.
- Tasvir sifati past:
- Kamera linzalarini tozalang.
- Kamera maydonidagi to'siqlarni tekshiring view.
- Ensure cameras are receiving sufficient power.
- Harakatni aniqlash haqida ogohlantirishlar yo'q:
- Verify motion detection settings in the NVR menu or mobile app.
- Adjust sensitivity and detection areas.
- Ensure the mobile app has notification permissions enabled.
- Masofadan ViewMuammolar:
- Ensure the NVR is connected to the internet via the LAN port.
- Uydagi internet aloqangizni tekshiring.
- Update the mobile app to the latest version.
- Wi-Fi Signal Weakness:
- Utilize the repeater function of the cameras to extend signal range.
- Relocate cameras or NVR to minimize obstacles.
For more detailed troubleshooting or persistent issues, please refer to the full instruction manual or contact customer support.
7. Texnik shartlar
| Xususiyat | Tavsif |
|---|---|
| Brend | A-ZONA |
| Model raqami | AZB4 |
| Ulanish texnologiyasi | Simsiz |
| Video suratga olish ruxsati | 1536p (3MP) |
| Maxsus xususiyat | Suv o'tkazmaydigan (IP66) |
| Mahsulot o'lchamlari (LxWxH) | 30 x 20 x 30 sm |
| Aloqa interfeysi | Simsiz |
| Video Pixels | 1536p |
| Kamera tavsifi | Old, orqa |
| Tungi ko'rish | Ha |
| Yozish usullari | Schedule, Manual |
| Kiritilgan komponentlar | 1/2-Inch Collet (Note: This seems like a generic item, actual components are listed in Package Contents) |
| Ob'ektiv turi | Keng burchakli linza |
8. Kafolat va qo'llab-quvvatlash
A-ZONE is committed to providing high-quality products and excellent customer service.
8.1 Mahsulot kafolati
Ushbu mahsulot bilan birga keladi 2 yillik sifat kafolati. Our security cameras are PSE and technical compliance certified, and undergo approximately 48 hours of operation testing before shipment to ensure reliability.
8.2 Mijozlarni qo‘llab-quvvatlash
If you have any questions or concerns during your purchase or use of the product, please do not hesitate to contact us. We recommend reviewing the instruction manual before using the product for quick and correct operation.
Aloqa usullari:
- Contact the seller directly through your order history.
- Use the email address or LINE contact information provided in the instruction manual.
