Generic Low Oil Warning Module Instruction Manual for Mercury Mariner Outboard Engines (Models 41470A26, 41470A25, 41470A20, 41470A15)

1. Kirish

This manual provides detailed instructions for the installation, operation, and maintenance of the Generic Low Oil Warning Module. This module is designed to monitor the oil level in compatible Mercury Mariner V6 outboard engines and alert the operator in case of a low oil condition, helping to prevent engine damage.

2. Xavfsizlik ma'lumotlari

Always disconnect the battery before performing any electrical work on your engine to prevent electrical shock or damage.
Ensure the engine is turned off and cooled down before beginning installation.
If you are unsure about any step, consult a qualified marine technician.
Qo'lqop va ko'zoynak kabi tegishli shaxsiy himoya vositalarini (SHV) taqing.
This module is an electrical component. Keep it dry and protected from moisture.

3. Moslik

This Low Oil Warning Module is compatible with various Mercury Mariner V6 outboard engines, including 135 HP, 150 HP, 175 HP, 200 HP, and 225 HP models. It is a direct replacement for the following part numbers:

41470A26
41470A25
41470A20
41470A15

Refer to your engine's service manual or consult a marine professional to confirm compatibility with your specific engine model.

4. Paket tarkibi

1 x Generic Low Oil Warning Module (Model M901/MINE-FBA)

5. O'rnatish

Follow these steps carefully for proper installation of the Low Oil Warning Module:

Tayyorlanishi: Ensure the engine is off and the battery is disconnected. Locate the existing low oil warning module on your engine. It is typically found near the oil reservoir or within the engine's electrical housing.
Disconnect Old Module: Carefully disconnect the electrical connectors from the old module. Note the orientation and connection points for reference.
Eski modulni olib tashlang: Unmount the old module from its position. This may involve unscrewing fasteners or releasing kliplar.
Yangi modulni o'rnatish: Position the new Generic Low Oil Warning Module in the same location as the old one. Secure it using the original fasteners or clips.
Simlarni ulash: Connect the electrical connectors from the engine harness to the new module. Ensure all connections are secure and correctly oriented. Refer to your engine's wiring diagram if necessary.
Batareyani qayta ulash: Once the module is securely installed and all connections are made, reconnect the boat's battery.
Sinov funktsiyasi: Turn the ignition key to the "ON" position (without starting the engine). The low oil warning light or alarm should activate briefly as part of a self-test, then turn off if the oil level is adequate. If the warning persists, refer to the Troubleshooting section.

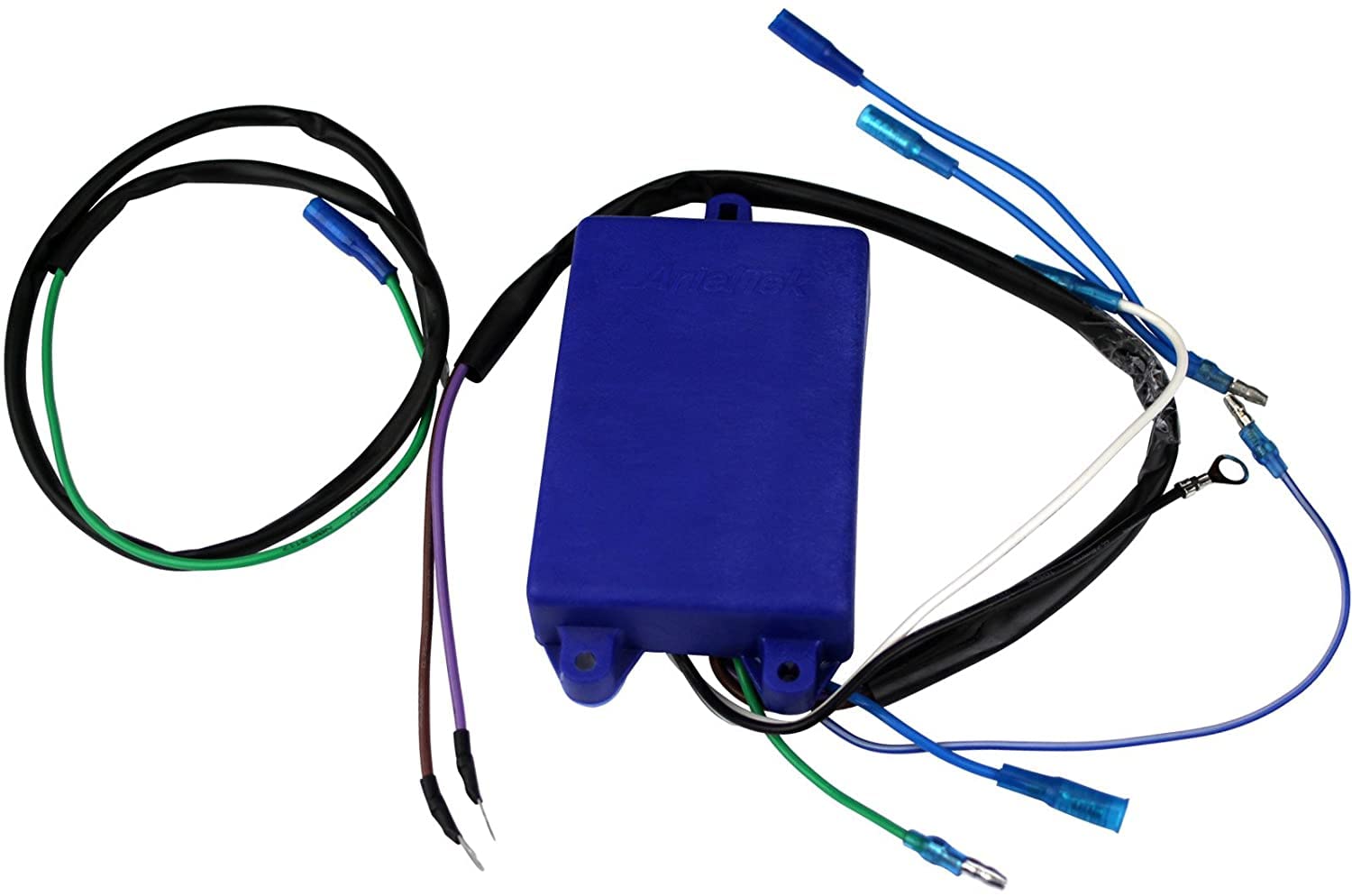

Image: The Generic Low Oil Warning Module, showing its compact design and electrical connectors. This module replaces original equipment part numbers 41470A26, 41470A25, 41470A20, and 41470A15.

6. Ishlash tamoyillari

The Low Oil Warning Module continuously monitors the oil level in your outboard engine's oil reservoir. When the oil level drops below a predetermined safe threshold, the module triggers an audible alarm and/or illuminates a warning light on your boat's dashboard. This alert indicates that the engine requires oil replenishment to prevent potential damage from insufficient lubrication. It is crucial to address a low oil warning immediately by checking and refilling the oil reservoir.

7. Xizmat ko'rsatish

The Low Oil Warning Module itself is a sealed electronic component and requires no routine maintenance. However, it is important to:

Regularly check the oil level in your engine's reservoir as part of your pre-operation checklist.
Keep the module and its connections clean and free from corrosion.
Ensure all wiring connections remain tight and secure.

8. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

Muammo	Mumkin sabab	Yechim
Low oil warning persists after engine start or oil refill.	Actual low oil level. Faulty oil level sensor. Wiring issue to the module. Faulty warning module.	Verify oil level manually and refill if necessary. Inspect oil level sensor for damage or blockage. Barcha sim ulanishlarini bo'shashgan yoki korroziyaga uchraganligini tekshiring. If all else fails, the module may be defective and require replacement.
No low oil warning when oil level is low.	Faulty oil level sensor. Wiring issue to the module. Faulty warning module. Warning light/buzzer malfunction.	Test oil level sensor functionality. Inspect wiring for breaks or poor connections. Test the warning module (requires specialized tools or a marine technician). Check the warning light bulb or buzzer for functionality.

If troubleshooting steps do not resolve the issue, it is recommended to consult a certified marine technician.

9. Texnik shartlar

Model raqami: M901/MINE-FBA
Compatible OEM Part Numbers: 41470A26, 41470A25, 41470A20, 41470A15
Dvigatel mosligi: Mercury Mariner V6 Outboard (135 HP, 150 HP, 175 HP, 200 HP, 225 HP)
Material: Aluminum (as per product specifications, likely for housing)
Ishlash tartibi: Elektr
Yoqilg'i turi: Gasoline (relevant for engine compatibility)

10. Kafolat va qo'llab-quvvatlash

For information regarding warranty coverage or technical support, please refer to the retailer or manufacturer's official website where the product was purchased. Keep your proof of purchase for warranty claims.

M901/MINE-FBA
