Kirish
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Vortopt DR2 1000 GPD Tankless Reverse Osmosis Water Filtration System. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your system. This system is designed to provide clean, filtered water directly from your tap, reducing Total Dissolved Solids (TDS) and other impurities.
Image: The Vortopt DR2 1000 GPD Tankless Reverse Osmosis Water Filtration System, showcasing its compact design and smart faucet.
O'rnatish va o'rnatish
The Vortopt DR2 system features a tankless, compact design for easy under-sink installation, typically completed within 30 minutes. Ensure you have all components and necessary tools before beginning.
Kiritilgan komponentlar:
- Vortopt DR2 Main Unit
- Smart Faucet with TDS Meter
- RO Filter (Reverse Osmosis)
- PAC Composite Filter (2-in-1)
- Suv kirish adapteri
- Egarni to'kib tashlang
- Tubing and Connectors
- Quvvat adapteri
- Foydalanuvchi uchun qo'llanma (ushbu hujjat)
O'rnatishdan oldingi nazorat ro'yxati:
- Verify sufficient space under your sink for the main unit (dimensions: 39L x 39W x 15H cm).
- Ensure access to a cold water supply line and a drain pipe.
- Confirm availability of a standard electrical outlet.
- Gather basic tools: drill, wrench, screwdriver, utility knife.
O'rnatish bosqichlari:
- Suv ta'minotini o'chiring: Locate and turn off the cold water supply valve under your sink.
- Kranni o'rnatish: Drill a hole (if necessary) in your countertop or sink for the smart faucet. Secure the faucet according to the provided instructions.
- Suv kirish joyini ulang: Disconnect the cold water line from your existing faucet. Install the water inlet adapter and connect the system's inlet tubing.
- Install Drain Saddle: Attach the drain saddle to the drain pipe under your sink. Drill a small hole through the drain pipe at the saddle location and connect the drain tubing.
- Filtrlarni o'rnatish: Insert the PAC and RO filters into their respective slots in the main unit. Ensure they are securely locked in place.
- Quvurni ulash: Connect all tubing (inlet, drain, faucet) to the main unit as indicated by the labels or diagrams.
- Position Main Unit: Place the main unit in a stable, upright position under the sink. Its compact design saves approximately 70% of under-sink space compared to traditional systems.
- Quvvatni ulash: Plug the power adapter into the main unit and then into a grounded electrical outlet.
- Suv ta'minotini tiklash: Slowly turn on the cold water supply valve. Check for any leaks.
Image: The Vortopt DR2 system installed under a sink, demonstrating its compact footprint.
Image: Illustration highlighting the space-saving, tankless design of the Vortopt DR2 system under a kitchen sink.
Foydalanish bo'yicha ko'rsatmalar
Dastlabki tozalash:
After installation, it is crucial to flush the system to remove air and carbon fines from the new filters. Turn on the smart faucet and let the water run for at least 10-15 minutes, or until the water runs clear and the TDS reading stabilizes. The system has an automatic flushing feature to maintain membrane performance.
Using the Smart Faucet:
The smart faucet provides real-time information about your water quality and filter status.
- Real-time TDS Display: The digital display on the faucet shows the Total Dissolved Solids (TDS) level of the filtered water, allowing you to monitor water quality.
- Smart Filter Life Indicator: The faucet also indicates the remaining lifespan of both the PAC and RO filters, prompting you when it's time for replacement.
- Tez oqim tezligi: The system delivers a high flow rate of up to 2.65 liters per minute, filling a 200ml cup in approximately 5 seconds.

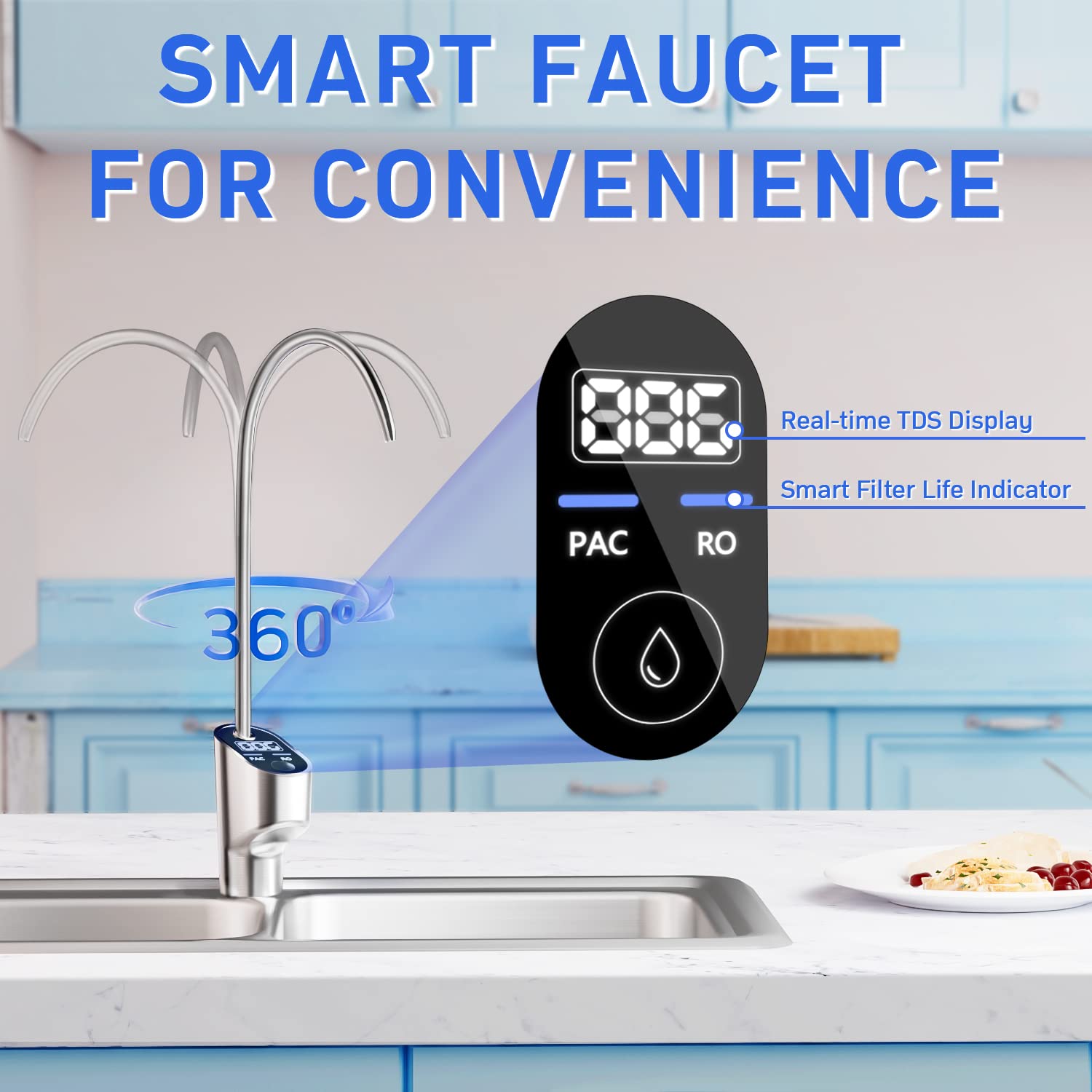

Image: Close-up of the Vortopt smart faucet, showing the digital display for real-time TDS and filter life.
Image: Demonstration of the Vortopt DR2's high flow rate, filling a glass quickly.
Xizmat
Regular maintenance, primarily filter replacement, is essential for optimal performance and water quality.
Filtrni almashtirish:
The Vortopt DR2 system uses two filters: a PAC Composite Filter and an RO Filter. The smart faucet will indicate when a filter needs replacement.
- PAC Composite Filter: Typically lasts 6-12 months, depending on water quality and usage.
- RO filtri: Typically lasts 24-36 months, depending on water quality and usage.
Filtrni almashtirish uchun:
- Tizimga suv ta'minotini o'chiring.
- Twist the old filter counter-clockwise to unlock and remove it.
- Insert the new filter into the housing and twist clockwise to lock it in place.
- Turn on the water supply and flush the system as described in the "Initial Flush" section.
- Reset the filter life indicator on the smart faucet (refer to faucet instructions for specific steps).
Replacement Filter Models:
- For RO Filter: Ni qidirish model B0C5JDR5H5.
- For PAC Composite Filter: Ni qidirish model B0C5JBCCF8.
Image: Visual guide demonstrating the quick and easy filter replacement process for the Vortopt DR2 system.
Muammolarni bartaraf qilish; nosozliklarni TUZATISH
| Muammo | Mumkin sabab | Yechim |
|---|---|---|
| High TDS reading initially | New filters need flushing. | Run water for 10-15 minutes during initial setup or after filter replacement until TDS stabilizes. |
| Sekin suv oqimi | Clogged filters, low incoming water pressure, air in the system. | Check filter life indicator and replace filters if necessary. Ensure water supply valve is fully open. Check for kinks in tubing. |
| Suv oqishi | Loose connections, improperly installed O-rings, damaged tubing. | Turn off water supply immediately. Check all connections and tighten if loose. Inspect O-rings and tubing for damage. Re-seat filters. |
| Unusual taste or odor | Expired PAC filter, system not flushed properly. | Replace PAC filter. Flush the system thoroughly. |
| Smart faucet display not working | No power, loose connection to faucet. | Ensure the system is powered on and the faucet cable is securely connected to the main unit. |
Texnik xususiyatlari
| Xususiyat | Tafsilot |
|---|---|
| Brend | Vortopt |
| Model nomi / raqami | DR2-1000GPD |
| Tozalash usuli | Teskari osmos |
| Imkoniyat | 1000 Gallons Per Day (GPD) / 3785 Liters Per Day |
| Maksimal oqim tezligi | Daqiqada 2.65 litr |
| Pure to Drain Ratio | 3:1 (Pure water to wastewater) |
| Filtrlashning aniqligi | 0.0001 mkm |
| Impurity Removal | 99.99% (TDS, Rust, Sediment, Chlorine, Lead, Bacteria, Odor) |
| Filtrlar | 1x RO Filter, 1x PAC Composite Filter (2-in-1) |
| Max Supported TDS Hardness | 1500 PPM |
| O'rnatish turi | Cho'kish ostida |
| Mahsulot o'lchamlari (U x G x Y) | 39 sm x 39 sm x 15 sm |
| Element og'irligi | 9.3 kilogramm |
| Material | Akrilitritril Butadien stirol |
| Quvvat manbai | Simli elektr |
| Maxsus xususiyatlar | TDS Reduction, Smart Faucet with Real-time TDS Display, Filter Life Indicator, Automatic Flushing, Tankless Design |
Image: Diagram illustrating the multi-stage filtration process of the Vortopt DR2 system, including the RO membrane.
Image: Comparison showing the Vortopt DR2's efficient 3:1 pure to drain ratio versus traditional RO systems.
Kafolat haqida ma'lumot
For detailed warranty information regarding your Vortopt DR2 Reverse Osmosis Water Filtration System, please refer to the warranty card included with your product packaging or visit the official Vortopt websayt. Kafolat shartlari va shartlari mintaqaga va sotib olingan sanaga qarab farq qilishi mumkin.
Mijozlarni qo‘llab-quvvatlash
Should you require technical assistance, have questions about installation, operation, or maintenance, or need to order replacement parts, please contact Vortopt customer service. Contact details can typically be found on the Vortopt official websaytida yoki mahsulot qadoqlarida.
ga ham tashrif buyurishingiz mumkin Vortopt Store on Amazon qo'shimcha mahsulot haqida ma'lumot va qo'llab-quvvatlash resurslari uchun.
