Duendhd M6 LCD Display for E-Bike 36V/48V 5-Pin JN Controller User Manual

1. Kirish

This manual provides detailed instructions for the installation, operation, and maintenance of your Duendhd M6 LCD Display for E-Bikes. Please read this manual thoroughly before use to ensure proper function and safety. This display is designed for use with JN E-Bike controllers and Pasion E-Bike motor kits.

2. Xavfsizlik ma'lumotlari

• Always ensure the E-Bike is powered off before installing or removing the display.
• Do not attempt to modify the display or its wiring. Unauthorized modifications can lead to damage or injury.
• Ensure all connections are secure and waterproof where specified.
• Displeyni toza va quruq holda saqlang. Uzoq vaqt davomida haddan tashqari harorat yoki to'g'ridan-to'g'ri quyosh nuriga ta'sir qilishdan saqlaning.
• If you are unsure about any installation steps, consult a qualified E-Bike technician.
• Muhim muvofiqlik eslatmasi: The JN-LCD-M6 display is specifically designed to be compatible only with JN (JIANNUO) controllers. Using it with other controller brands may result in malfunction or damage.

3. Paket tarkibi

Iltimos, paket tarkibini diqqat bilan tekshiring. Agar biror narsa yo'qolgan yoki shikastlangan bo'lsa, sotuvchingizga murojaat qiling.

• 1 x Duendhd M6 LCD Display (with integrated 5-pin waterproof connector cable)

4. Mahsulot tugadiview

The Duendhd M6 LCD Display is a robust and user-friendly interface for your E-Bike, providing essential ride data and control. It features a clear LCD screen and a durable plastic housing.

Image: Duendhd M6 LCD Display showing its dimensions (96mm width, 62mm height) and the 22.2mm mounting aperture.

Asosiy xususiyatlar:

• jildtage Moslik: 36V / 48V Universal
• Displey turi: JN-LCD-M6
• Mounting Aperture: 22.2 mm
• Ulagich turi: 5-pin Waterproof Connector
• Material: Bardoshli plastik
• Rang: Qora

5. Oʻrnatish va oʻrnatish

Follow these steps to properly install your Duendhd M6 LCD Display on your E-Bike.

5.1 Displeyni o'rnatish

1. Identify a suitable location on your E-Bike handlebars. The display is designed for a 22.2 mm mounting aperture.
2. Loosen the screws on the display's mounting bracket.
3. Position the display on the handlebar at your desired angle.
4. Securely tighten the screws to fix the display in place. Do not overtighten.

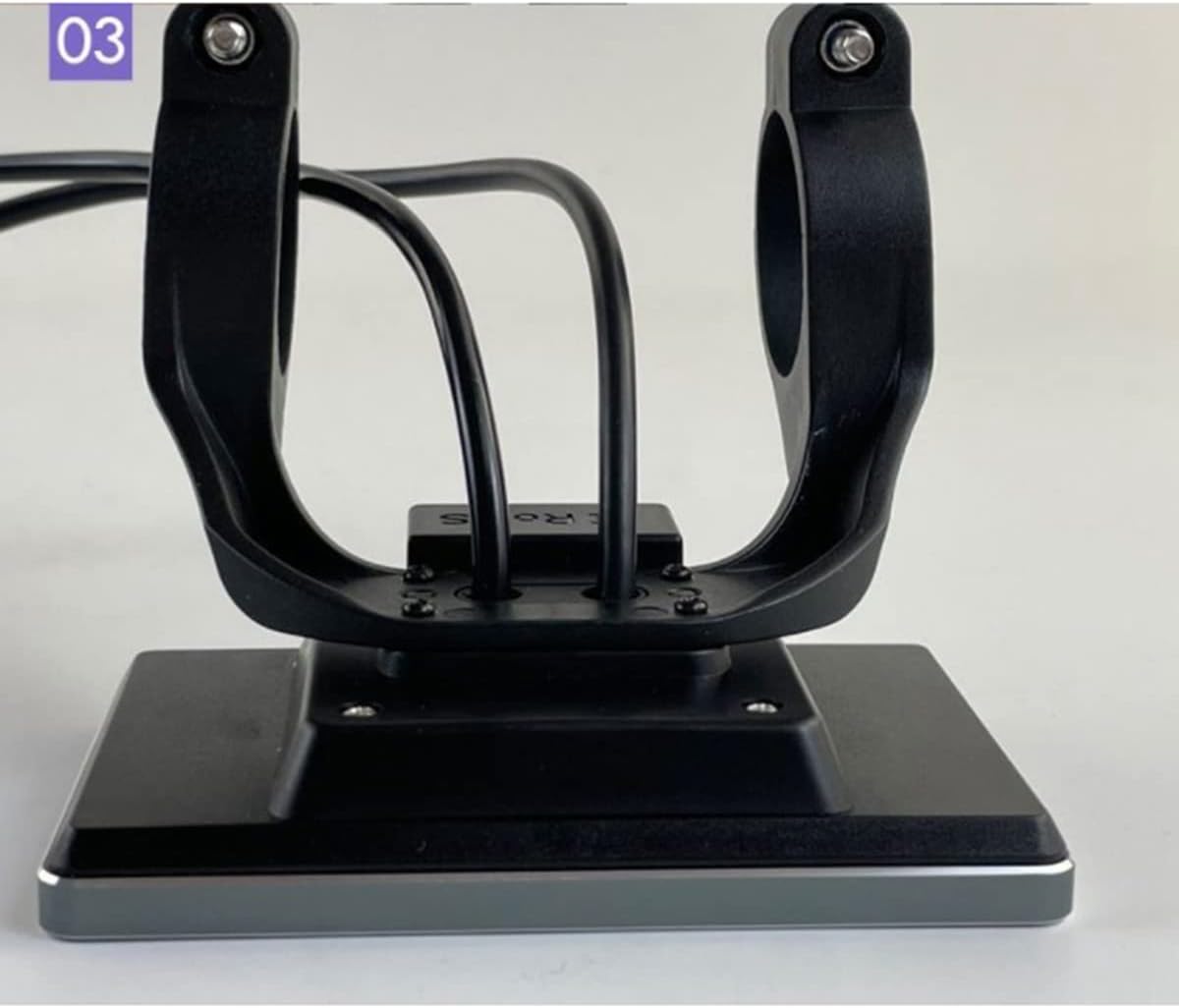

Rasm: yon view of the M6 display showing its mounting bracket and how it sits on the handlebar.

Rasm: orqa view of the M6 display, illustrating the cable routing from the display unit through the mounting bracket.

5.2 Connecting the Display

• Locate the 5-pin waterproof connector cable extending from the M6 display.
• Connect this cable to the corresponding 5-pin waterproof connector on your JN E-Bike controller. Ensure the connectors are aligned correctly before pushing them together firmly.
• The connection should be secure and waterproof.
• Muhim eslatma: This display is designed exclusively for JN (JIANNUO) controllers. Attempting to connect it to a non-JN controller may cause damage to both the display and the controller. If you are unsure about your controller's compatibility, please verify its model or consult your E-Bike manufacturer.

Image: A close-up showing the waterproof 5-pin connector type used by the M6 display, alongside an SM plug for comparison. Ensure you use the correct waterproof connector.

6. Foydalanish bo'yicha ko'rsatmalar

Once installed and connected, the Duendhd M6 LCD Display provides real-time information about your E-Bike's performance.

6.1 Quvvatni yoqish/o‘chirish

• To power on the display, press and hold the power button (if available on your controller or display, specific button not detailed in product info).
• O'chirish uchun quvvat tugmasini yana bosing va ushlab turing.

6.2 Ma'lumotni ko'rsatish

The LCD screen provides various metrics to monitor your ride:

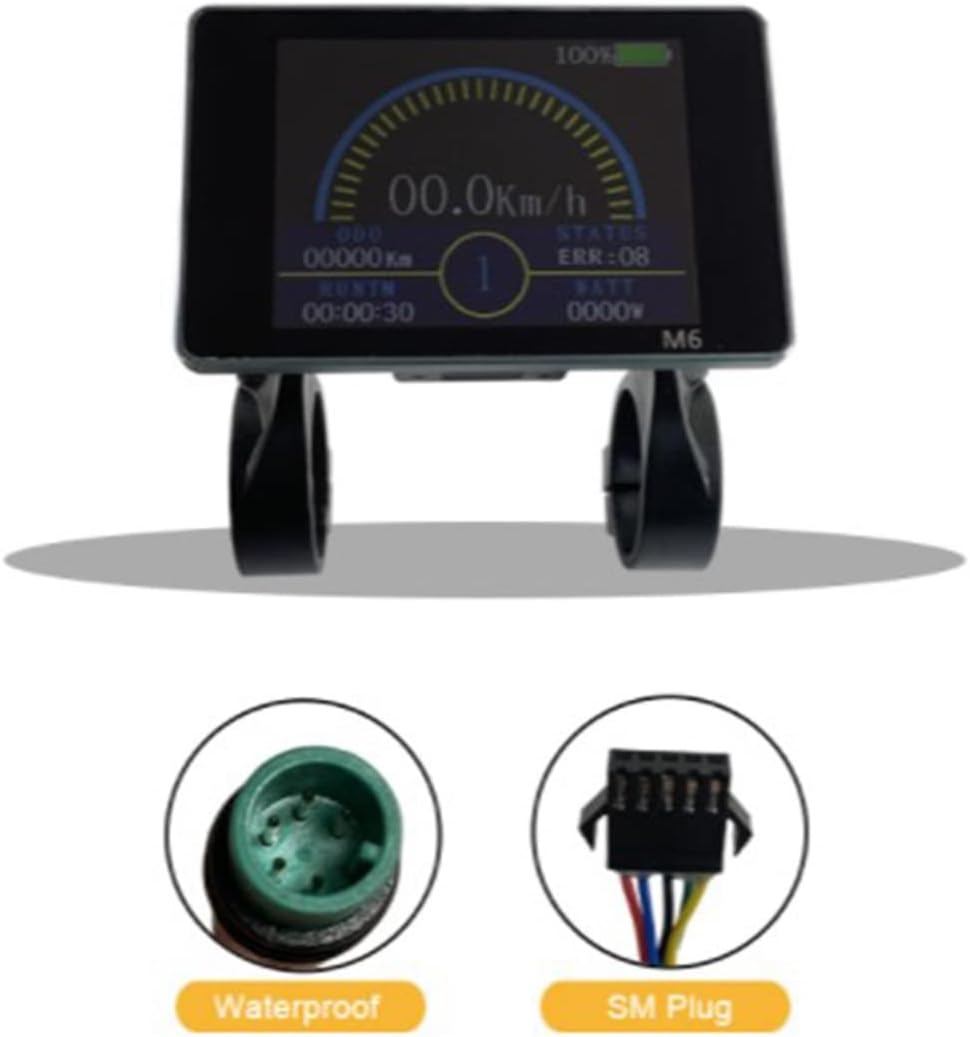

Image: The M6 LCD display showing various operational parameters including current speed (00.0 Km/h), odometer (00000 Km), run time (00:00:30), wattage (0000W), battery level (100%), and error status (ERR:08).

• Tezlik: Current riding speed (e.g., Km/h).
• ODO (Odometr): Total distance traveled.
• RUN TM (Run Time): Duration of the current ride.
• VATT: Real-time power output.
• Batareya darajasi: Qolgan batareya zaryadini ko'rsatish.
• STATUS / ERR: Displays system status or error codes if any issues are detected.

Note: Specific button functions for changing display modes or settings are typically controlled by the E-Bike controller. Refer to your E-Bike's main manual for detailed operational controls.

7. Xizmat ko'rsatish

• Tozalash: Displey ekrani va korpusini yumshoq mato bilan artib oling, damp mato. Abraziv tozalash vositalarini yoki erituvchilarni ishlatmang.
• Suvga ta'sir qilish: While the connector is waterproof, avoid submerging the display. If it gets wet, dry it thoroughly before use.
• Kabel tekshiruvi: Periodically check the cable and connector for any signs of wear, damage, or corrosion.
• Saqlash: When not in use for extended periods, store the E-Bike and display in a cool, dry place away from direct sunlight.

8. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

If you encounter issues with your Duendhd M6 LCD Display, refer to the following common problems and solutions:

If problems persist, contact your retailer or a qualified E-Bike service center.

9. Texnik shartlar

10. Kafolat va qo'llab-quvvatlash

Specific warranty terms and conditions may vary by region and retailer. Please retain your proof of purchase for any warranty claims.

For technical support, troubleshooting assistance, or warranty inquiries, please contact the retailer from whom you purchased the product. You may also refer to the official Duendhd website for general product information, if available.
