EBycco EB7Pro Electric Bike

1. Kirish

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your EBycco EB7Pro Electric Bike. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your electric bicycle.

Figure 1: EBycco EB7Pro Electric Bike

2. Xavfsizlik bo'yicha ko'rsatmalar

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. Perform a pre-ride inspection before each use, checking brakes, tires, battery level, and all connections.

• Har doim sertifikatlangan dubulg'a kiying.
• Ensure all bolts and quick releases are securely tightened.
• Har bir haydashdan oldin shinalar bosimini tekshiring.
• Test brakes for proper function.
• Atrofingizdagi vaziyatdan xabardor bo'ling va himoyada harakatlaning.
• Spirtli ichimliklar yoki giyohvand moddalar ta'siri ostida minmang.
• Ekstremal ob-havo sharoitida velosipedda yurishdan saqlaning.

3. Mahsulot tugadiview va komponentlar

The EBycco EB7Pro is an electric fat tire mountain bike designed for various terrains. Key components include:

• Dual 1000W Brushless Motors: Provides powerful acceleration and climbing capabilities.
• 48V 23Ah Removable Battery: Offers extended range for long rides.
• Full Suspension System: Includes a lockable hydraulic suspension fork and a transverse rear suspension for enhanced comfort on rugged terrain.
• Hydraulic Disc Brakes: Ensures responsive and reliable stopping power.
• 26"x4.0 Fat Tires: Provides superior grip and stability across diverse surfaces.
• Shimano 7-Speed Gear System: Allows for smooth gear changes to adapt to different riding conditions.
• Intelligent Waterproof LCD Display: Shows essential information like speed, pedal-assist level, battery life, and trip distance.
• Integrated Lighting System: Features a bright headlight and a rechargeable tail light for visibility.
• Orqa tokcha: For convenient cargo carrying.

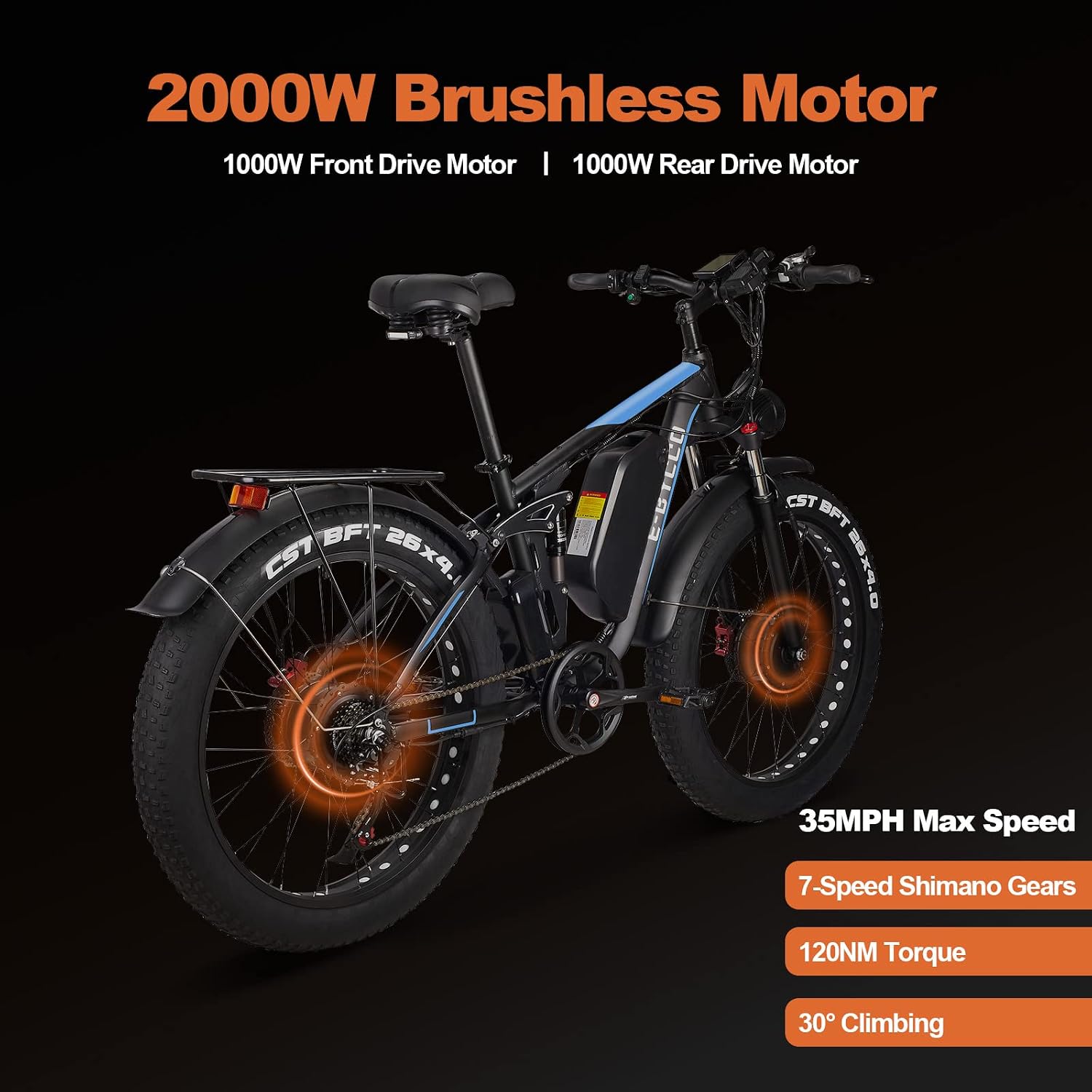

Figure 2: Dual 1000W Brushless Motors

Figure 3: 48V 23AH Removable Battery

4-rasm: To'liq osma tizim

Figure 5: Dual Hydraulic Brake System

Figure 6: 26"x4.0 Fat Tires

7-rasm: Shimano 7 tezlikli uzatmalar tizimi

Figure 8: Handlebar Controls and LCD Display

Figure 9: Safety Lighting System

Figure 10: Rear Rack and Tail Light

4. O'rnatish va yig'ish

The EBycco EB7Pro electric bike arrives 85% pre-assembled. The following steps detail the final assembly process. For a visual guide, please refer to the installation video below.

4.1. Tutqichni o'rnatish

1. Remove the four screws from the handlebar stem.
2. Place the handlebar onto the stem, ensuring proper alignment.
3. Tighten the four screws to secure the handlebar.
4. Tighten the screws to fix the position of the handlebar.

4.2. Old g'ildirakni o'rnatish

1. Remove the protective spacer from the front fork.
2. Remove the bolts from the front wheel axle.
3. Align the notch on the front wheel axle with the fork dropouts.
4. Tighten the screw bolts to secure the front wheel.
5. Connect the motor cable from the front wheel to the main bike harness.

4.3. Pedalni o'rnatish

Ensure you install the pedals correctly. The left pedal is marked with an 'L' and the right pedal with an 'R'.

1. Identify the 'L' and 'R' pedals.
2. Chap pedalni (L) soat miliga teskari yo'nalishda chap krank qo'liga burang.
3. O'ng pedalni (R) soat yo'nalishi bo'yicha o'ng krank qo'liga burang.
4. Kalit bilan mahkam torting.

4.4. Front Fenders and Headlights Installation

1. Attach the front fender to the front fork using the provided hardware.
2. Mount the headlight to the designated bracket on the front fork.
3. Connect the headlight cable to the main bike harness.

4.5. Batareyani o'rnatish

1. Insert the 48V 23Ah battery into the frame's battery compartment.
2. Ensure the battery clicks securely into place.
3. Use the key to lock the battery to the frame for security.

4.6. Rear Rack Installation

1. Attach the rear rack support arms to the designated mounting points on the bike frame near the rear axle.
2. Secure the top of the rear rack to the seat post clamp hudud.
3. Tighten all bolts to ensure the rack is stable.

5. Foydalanish bo'yicha ko'rsatmalar

5.1. Starting the E-Bike

To start the E-bike, long press the 'M' button on the LCD display. The display will illuminate, indicating the bike is ready for operation.

5.2. Haydash rejimlari

Your EBycco EB7Pro offers multiple riding modes to suit your preference and terrain:

• Electric Throttle: Provides power on demand without pedaling.
• Pedal yordami (PAS): Offers 5 different levels of motor assistance while you pedal.
• Pedalda aylanish: Ride the bike like a traditional bicycle with no motor assistance.
• Kruiz rejimi: Maintains a constant speed without continuous throttle input.
• Yurish rejimi: Velosipedda yurish uchun past tezlikda yordam beradi.

Figure 11: Six Riding Modes

5.3. Dual Motor Switching

The EBycco EB7Pro features a green button on the handlebar to switch between single-motor and dual-motor modes. Dual motor mode provides maximum power and climbing capability.

5.4. Yoritish tizimi

Activate the bright headlight for improved visibility during low-light conditions. The rechargeable tail light enhances your presence to others from behind.

6. Xizmat ko'rsatish

Regular maintenance is crucial for the longevity and performance of your EBycco EB7Pro.

6.1. Batareyani parvarish qilish

• Birinchi foydalanishdan oldin batareyani to'liq zaryadlang.
• Faqat taqdim etilgan zaryadlovchidan foydalaning.
• Batareyani to'liq tushirishdan saqlaning.
• Batareya ishlatilmaganda uni salqin va quruq joyda saqlang va uzoq vaqt saqlansa, vaqti-vaqti bilan zaryadlang.

6.2. Brake Maintenance

Regularly inspect the hydraulic disc brakes for wear and tear. Ensure brake fluid levels are adequate and brake pads are not excessively worn. If you notice any decrease in braking performance, consult a professional or contact customer support.

6.3. Shinalarni parvarish qilish

Maintain proper tire pressure as indicated on the tire sidewall. Regularly inspect tires for punctures, cuts, or excessive wear. Fat tires provide excellent traction but can be susceptible to punctures if not properly maintained.

6.4. General Cleaning and Inspection

Velosipedingizni reklama bilan muntazam tozalangamp cloth. Avoid using high-pressure washers directly on electrical components. Periodically check all bolts, nuts, and connections for tightness. Lubricate the chain as needed.

7. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

If you encounter any issues with your EBycco EB7Pro, please refer to the following common troubleshooting tips. For more complex problems, contact customer support.

8. Texnik spetsifikatsiyalar

12-rasm: Mahsulot o'lchamlari va yuk hajmi

9. Kafolat va mijozlarni qo'llab-quvvatlash

EBycco provides a 1-year manufacturer's warranty for the EB7Pro electric bike. For any questions, technical support, or warranty claims, please contact EBycco customer service.

Bog'lanish uchun ma'lumot:

• Email: ebyccous@gmail.com
• Customer support is available Monday to Sunday, 10:00 AM - 11:00 PM PST.
• 24 soat ichida javob kuting.

Please retain your original packaging for at least 30 days in case of returns or shipping issues. Do not return the product without contacting customer support first to prevent package loss.
