1. Kirish
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Falcon FTS18H Split Air Conditioner. Please read this manual thoroughly before using the appliance and retain it for future reference.
The Falcon FTS18H is a high-efficiency split air conditioner designed for both cooling and heating, featuring a high-efficiency compressor, four-way air distribution, and an environmentally friendly R410A refrigerant. It includes an advanced air purification filter to ensure clean air quality.
2. Xavfsizlik ma'lumotlari
Muhim xavfsizlik ko'rsatmalari:
- Qurilmani ishlatishdan oldin barcha ko'rsatmalarni o'qing.
- This appliance must be installed by a qualified technician in accordance with local and national electrical codes.
- Ensure the power supply matches the specifications listed on the unit's rating label.
- Havo kirish/chiqishiga barmoqlar yoki narsalarni kiritmang.
- Jihozni o'zingiz ta'mirlashga yoki o'zgartirishga urinmang. Vakolatli xizmat ko'rsatish xodimlariga murojaat qiling.
- Masofadan boshqarish pultini bolalar qo'li yetmaydigan joyda saqlang.
- Tashqi blok atrofida to'g'ri shamollatishni ta'minlang.
- Elektr shnuri shikastlangan bo'lsa, xavfni oldini olish uchun uni ishlab chiqaruvchi, uning xizmat ko'rsatish agenti yoki shunga o'xshash malakali shaxslar o'zgartirishi kerak.
3. Mahsulot komponentlari
The Falcon FTS18H Split Air Conditioner package typically includes the following components:
- Ichki birlik
- Outdoor Unit (Required)
- Masofadan boshqarish bloki
- User Manual (Catalog)
- Installation Accessories (Piping, wiring, etc. - typically supplied by installer)

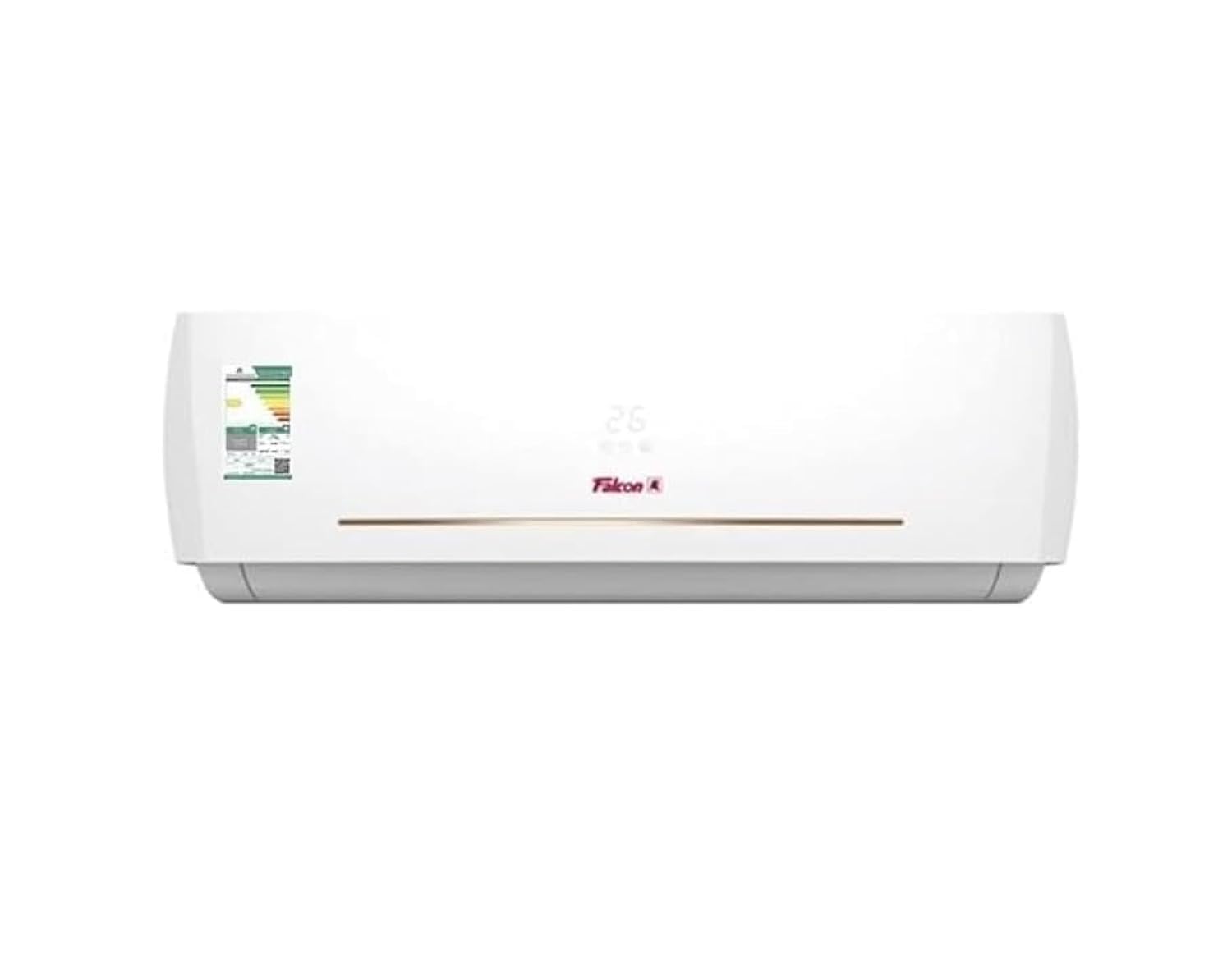

Image 1: Falcon FTS18H Split Air Conditioner Indoor Unit. This image shows the compact design of the indoor unit, typically mounted on a wall.
4. O'rnatish va o'rnatish
Installation of the Falcon FTS18H Split Air Conditioner requires specialized tools and knowledge. It is strongly recommended that installation be performed by a certified and experienced HVAC technician to ensure proper functioning, safety, and warranty validity.
O'rnatishda umumiy fikrlar:
- Manzil: Choose a location for the indoor unit that allows for optimal air distribution and is away from direct sunlight or heat sources. The outdoor unit should be placed in a well-ventilated area, away from obstructions.
- O'rnatish: Securely mount both indoor and outdoor units according to manufacturer guidelines.
- Piping and Wiring: Connect refrigerant pipes and electrical wiring between the indoor and outdoor units. Ensure all connections are tight and insulated.
- Drenaj: Install the condensate drain pipe to ensure proper water removal.
- Quvvatlantirish manbai: Connect the unit to a dedicated 220V power supply circuit.
- Oqish testi: After installation, a leak test must be performed on the refrigerant lines.
5. Foydalanish bo'yicha ko'rsatmalar
Your Falcon FTS18H Air Conditioner is controlled via the included wireless remote control. Familiarize yourself with the remote's buttons and display.
Asosiy operatsiya:
- Quvvatni yoqish/o‘chirish: ni bosing ON/OFF qurilmani ishga tushirish yoki to'xtatish uchun tugma.
- Rejim tanlash: ni bosing REJIM Mavjud rejimlar orasida aylanish uchun tugmani bosing: Ajoyib, Issiqlik, Muxlis, Quruq, va Avtomatik.
- Haroratni sozlash: dan foydalaning TEMP UP (▲) va TEMP PASHAYTIRISH (▼) tugmalarini bosib, kerakli haroratni o'rnating.
- Fan tezligi: ni bosing MUHLIS button to adjust the fan speed (Low, Medium, High, Auto).
- Swing funktsiyasi: ni faollashtiring SWING button for automatic four-way air distribution.
Kengaytirilgan funksiyalar:
- Taymer: Set the unit to turn on or off automatically at a specified time. Refer to the remote control section in the full manual for detailed instructions.
- Kutish rejimi: Qulay uyqu va energiyani tejash uchun harorat va ventilyator tezligini sozlaydi.
- Turbo/Fast Cooling: Activates maximum cooling capacity for rapid temperature reduction.
6. Xizmat ko'rsatish
Muntazam texnik xizmat ko'rsatish konditsioneringizning optimal ishlashini ta'minlaydi va xizmat muddatini uzaytiradi.
Filtrni tozalash:
Havo filtrini ishlatish va havo sifatiga qarab har ikki haftada yoki undan tez-tez tozalash kerak.
- Konditsionerni o'chiring va uni quvvat manbaidan uzing.
- Ichki blokning old panelini oching.
- Havo filtrlarini olib tashlang.
- Filtrlarni changyutgich bilan tozalang yoki iliq suv va yumshoq yuvish vositasi bilan yuving.
- Rinse thoroughly and allow them to dry completely in a shaded area before reinserting.
- Old panelni yoping.
Umumiy parvarish:
- Wipe the indoor unit with a soft, dry cloth. For stubborn dirt, use a damp yumshoq yuvish vositasi bilan matoni arting, keyin quriting.
- Qattiq kimyoviy moddalar, abraziv tozalagichlar yoki erituvchilardan foydalanmang.
- Periodically check the outdoor unit for debris (leaves, dirt) and clear them carefully.
- Annual professional servicing is recommended to check refrigerant levels, clean coils, and inspect electrical components.
7. Muammolarni bartaraf qilish; nosozliklarni TUZATISH
Xizmatga murojaat qilishdan oldin quyidagi umumiy muammolarni tekshiring:
| Muammo | Mumkin sabab | Yechim |
|---|---|---|
| Birlik ishga tushmaydi | Quvvat yo'q, elektron to'xtatuvchi uzilib qoldi, masofadan boshqarish pultidagi batareyalar o'lik. | Elektr ta'minotini tekshiring, o'chirgichni qayta o'rnating, masofaviy batareyalarni almashtiring. |
| Sovutish/isitish yetarli emas | Dirty air filter, windows/doors open, temperature setting incorrect, outdoor unit obstructed. | Clean filter, close openings, adjust temperature, clear obstructions. |
| G'ayrioddiy shovqin | Bo'shashgan qismlar, begona narsalar, birlik tekis emas. | Check for loose parts, remove objects, ensure unit is level. If noise persists, contact service. |
| Ichki blokdan suv oqishi | Drenaj trubkasi tiqilib qolgan, noto'g'ri o'rnatish. | Clear drain pipe. If issue persists, contact a qualified technician. |
Agar ushbu yechimlarni sinab ko'rgandan keyin ham muammo davom etsa, iltimos, vakolatli xizmat ko'rsatish xodimlariga murojaat qiling.
8. Texnik shartlar
| Xususiyat | Spetsifikatsiya |
|---|---|
| Brend | Falcon |
| Model raqami | FTS18H |
| Sovutish quvvati | 12 000 BTU (1.5 tonna) |
| Sovutgich turi | R-410A (Environmentally Friendly) |
| Kompressor turi | Rotary Scroll |
| jildtage | 220 volt |
| Noise Level (High/Mid/Low) | 47/45/42 dB |
| Airflow Efficiency (Indoor) | 1200 m³/soat |
| Mavsumiy energiya samaradorligi koeffitsienti (SEER) | 10.25 |
| BEE yulduz reytingi | 5 yulduz |
| Qo'llash sohasi | 23-35 m² (Bedroom, Living Room, Office) |
| Maxsus xususiyatlar | 4-way air swing, Fast Cooling, Air Purification Filter, Dust Filter, Remote Controlled |
| Mahsulot o'lchamlari (D x G x Y) | 35 x 105 x 40 sm |
| Element og'irligi | 50 kilogramm |
| Asosiy material | Alyuminiy qotishmasi |
| Ishlab chiqaruvchi mamlakat; ta'minotchi mamlakat | Xitoy |
9. Kafolat va qo'llab-quvvatlash
Your Falcon FTS18H Split Air Conditioner comes with a comprehensive warranty to ensure your peace of mind:
- Umumiy kafolat: A 2-year comprehensive warranty provided by the agent (Juffali).
- Kompressor kafolati: A 5-year warranty specifically covering the compressor.
For warranty claims, technical support, or service requests, please contact your authorized dealer or the Juffali service center. Ensure you have your purchase receipt and product model number (FTS18H) available when contacting support.
Eslatma: The warranty may be voided if the unit is not installed by a certified technician or if unauthorized repairs are attempted.
