JAZAVA ZCPL101BK-3C 3-Light Cluster Globe Pendant Instruction Manual

1. Kirish

Sotib olganingiz uchun tashakkurasing the JAZAVA ZCPL101BK-3C 3-Light Cluster Globe Pendant. This modern lighting fixture features three clear glass globes and a matte black finish, designed to provide ample illumination and enhance the aesthetic of various indoor spaces. This manual provides essential information for safe installation, operation, and maintenance of your new pendant light. Please read these instructions carefully before beginning installation and retain them for future reference.

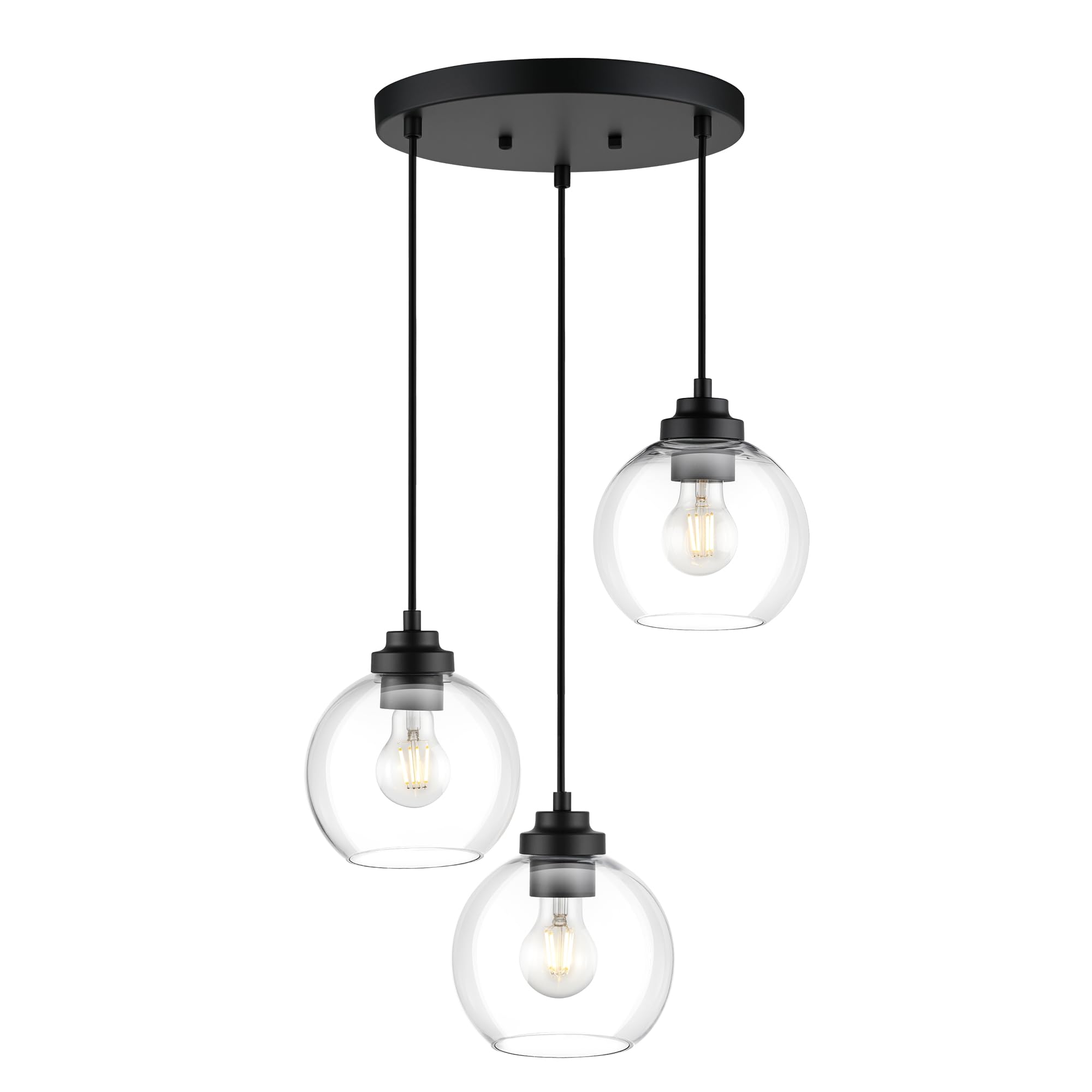

Image 1: JAZAVA ZCPL101BK-3C 3-Light Cluster Globe Pendant in a living room setting.

2. Xavfsizlik ma'lumotlari

• OGOHLANTIRISH: Elektr toki urishi xavfi. O'rnatish yoki xizmat ko'rsatishdan oldin avtomatik o'chirgich yoki sug'urta qutisidagi elektrni uzing.
• Barcha elektr ulanishlari mahalliy qonunlar, qonunlar yoki Milliy elektr kodeksiga (NEC) muvofiq bo'lishi kerak. Elektr simlarini to'g'ri ulash bilan tanish bo'lmasangiz, malakali elektrikchi bilan bog'laning.
• Ushbu moslama faqat bino ichida foydalanish uchun mo'ljallangan. Suv yoki namlikka duchor qilmang.
• O'rnatish yuzasi armatura og'irligini ushlab turishiga ishonch hosil qiling.
• Use only E26 A19 / G16.5 LED Edison bulbs, with a maximum wattage of 60W per bulb. Do not exceed the recommended wattage.
• Shisha qismlarini sinishi oldini olish uchun ehtiyotkorlik bilan ishlang.
• Ushbu armaturani yerga ulanmagan elektr tizimiga ulamang.

3. Paket tarkibi

Verify that all components are present before beginning installation. If any parts are missing or damaged, contact JAZAVA customer support.

• 1 x 3-Light Pendant Light Fixture
• O'rnatish uskunalari (vintlar, simli gaykalar, o'rnatish kronshteyni)
• Qo'llanma

4. Texnik shartlar

Image 2: Detailed dimensions and bulb specifications for the pendant light.

5. O'rnatish va o'rnatish

This fixture is designed for hardwired installation. It is recommended to have a qualified electrician perform the installation if you are not experienced with electrical wiring.

1. Quvvatni o'chiring: Before starting, ensure the power to the circuit is completely off at the main circuit breaker or fuse box.
2. O'rnatish yuzasini tayyorlang: Attach the mounting bracket to the junction box in the ceiling using the provided screws. Ensure the bracket is securely fastened.
3. Kabel uzunligini sozlang: The pendant cords are adjustable. Loosen the set screws on the canopy to adjust each pendant's hanging length to your desired height. Tighten the set screws once the desired length is achieved.
4. Elektr ulanishlarini amalga oshiring:
   • Connect the fixture's black wire to the house's black (live) wire.
   • Armaturaning oq simini uyning oq (neytral) simiga ulang.
   • Connect the fixture's ground wire to the house's ground wire (bare copper or green).
   • Secure all connections with wire nuts and wrap with electrical tape for added safety.
5. Kanopni o'rnatish: Carefully tuck the wires into the junction box and align the canopy with the mounting bracket. Secure the canopy to the bracket using the provided screws.
6. Shisha soyalarni o'rnatish: Carefully attach each clear glass globe to its respective lamp ushlagich.
7. Lampochkalarni o'rnatish: Screw in three E26 A19 / G16.5 LED Edison bulbs (not included) into the sockets. Do not overtighten.
8. Quvvatni tiklash: O'rnatish tugallangandan va barcha ulanishlar xavfsiz bo'lgandan so'ng, o'chirgichdagi quvvatni tiklang.

Image 3: Product details showing flat/sloped ceiling compatibility, matte black finish, and clear glass.

Image 4: Illustration of adjustable cord length for customization.

6. Foydalanish bo'yicha ko'rsatmalar

Once installed and powered, the JAZAVA ZCPL101BK-3C pendant light operates like any standard light fixture.

• Yoqish/o'chirish: Chiroq moslamasini yoqish yoki o'chirish uchun devorga o'rnatilgan tugmachadan foydalaning.
• Karartma funktsiyasi: If you have installed dimmable E26 A19 / G16.5 LED Edison bulbs and connected the fixture to a compatible dimmer switch (sold separately), you can adjust the light intensity to create your desired ambiance.

7. Xizmat ko'rsatish

Muntazam parvarishlash sizning osilgan chiroqingizning ko'rinishi va funksionalligini saqlashga yordam beradi.

• Tozalash: Always turn off the power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or glass.
• Shisha soyalar: The clear glass shades can be carefully removed for more thorough cleaning if necessary. Wash with mild soap and water, rinse thoroughly, and dry completely before reattaching.
• Lampochkani almashtirish: Ensure the power is off and the bulbs have cooled before attempting to replace them. Use only E26 A19 / G16.5 LED Edison bulbs, maximum 60W.

8. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

If you experience issues with your pendant light, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact JAZAVA customer support.

9. Kafolat

The JAZAVA ZCPL101BK-3C 3-Light Cluster Globe Pendant comes with a 1 yillik cheklangan ishlab chiqaruvchi kafolati from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications. Please retain your proof of purchase for warranty claims.

10. Mijozlarni qo'llab-quvvatlash

For any questions, assistance with setup, installation, or troubleshooting, please contact JAZAVA customer support.

• Telefon qo'llab-quvvatlash: Available during business hours (Monday-Friday PT).
• Elektron pochta orqali yordam: For non-urgent inquiries.

Image 5: JAZAVA customer support contact details.
