1. Kirish
This manual provides detailed instructions for the installation, operation, and maintenance of your TOTEDELL LT1050 Carburetor and Air Filter Kit. This kit is designed as a replacement part for Cub Cadet lawn tractors, specifically models 13AQ11CP709, 13AQ11CP712, 13AQ11CP710, SLT1554, and GT1554. Please read this manual thoroughly before beginning any work to ensure proper function and safety.
2. Xavfsizlik ma'lumotlari
OGOHLANTIRISH: Always prioritize safety when working with fuel systems and machinery. Failure to follow these safety guidelines may result in serious injury or property damage.
- Ensure the engine is off and cool before starting any work.
- Disconnect the spark plug wire or battery to prevent accidental starting.
- Yoqilg'i tutunini nafas olishdan saqlanish uchun yaxshi shamollatiladigan joyda ishlang.
- Tegishli shaxsiy himoya vositalarini, shu jumladan qo'lqop va ko'zni himoya qilish vositalarini taqing.
- Handle fuel with extreme care. Do not smoke or use open flames near fuel.
- Dispose of old fuel and parts according to local regulations.
- Agar biron bir qadamga ishonchingiz komil bo'lmasa, malakali texnik bilan maslahatlashing.
3. Paket tarkibi
Quyida keltirilgan barcha komponentlar to'plamingizda mavjudligiga ishonch hosil qiling:
- 1 x LT1050 Carburetor
- 1 x havo filtri
- 1 x Fuel Pump
- 1 x Yoqilg'i liniyasi
- Gaskets (various sizes)
- Clamps (various sizes)

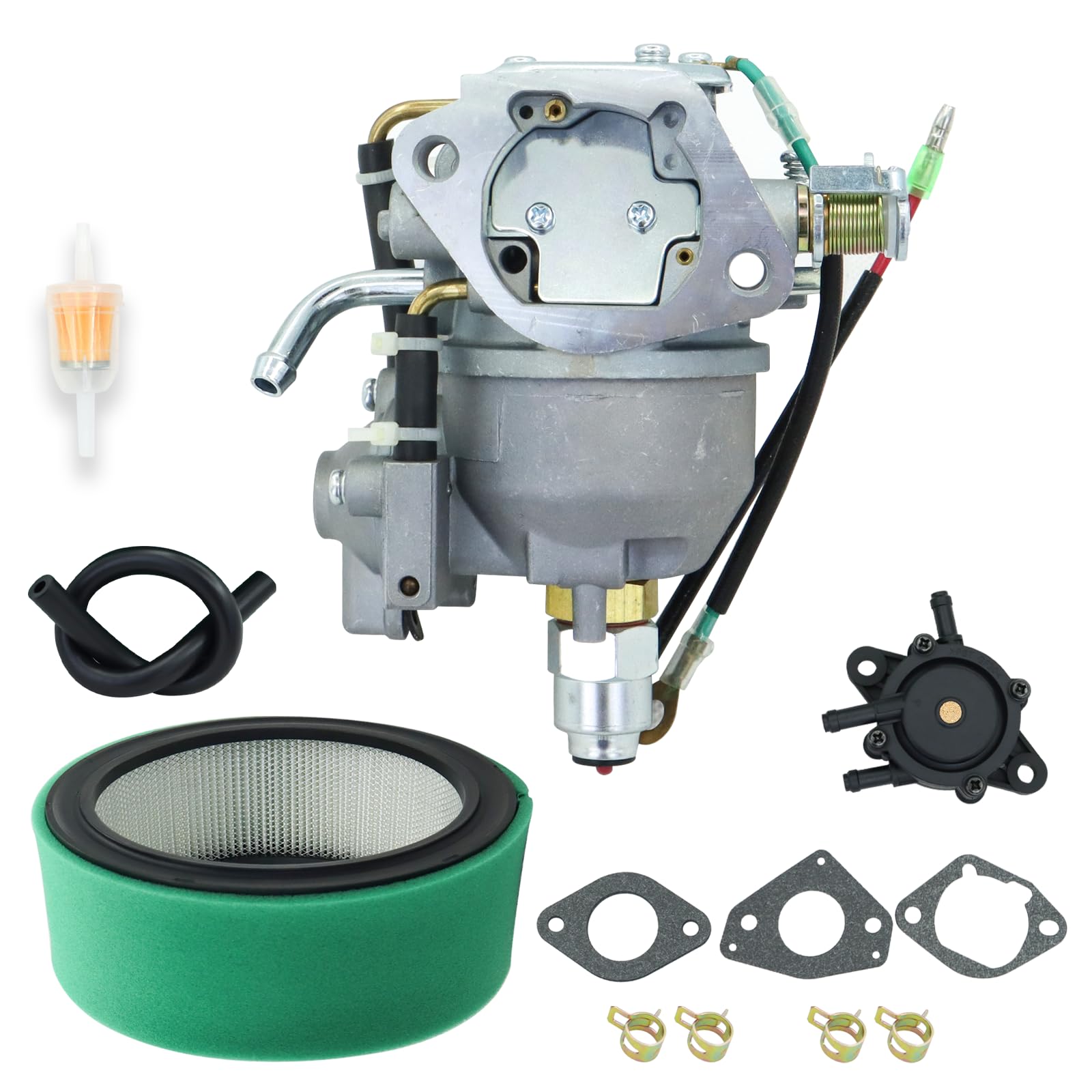

Image 3.1: All components included in the TOTEDELL LT1050 Carburetor and Air Filter Kit.
Video 3.1: Batafsilview of the TOTEDELL LT1050 Carburetor and Air Filter Kit components, showcasing each part included in the package.
4. O‘rnatish (Sozlash)
This section outlines the general steps for replacing the carburetor and air filter. Specific procedures may vary slightly depending on your Cub Cadet model. Always refer to your lawn tractor's service manual for precise instructions.
4.1 Kerakli vositalar (qo'shilmagan)
- Soket kaliti to'plami
- Tornavida to'plami
- Pense
- Yoqilg'i liniyasi Clamp
- Drain Pan for Fuel
4.2 Carburetor Replacement Steps
- Traktorni tayyorlash: Park the lawn tractor on a level surface. Ensure the engine is off and cool. Disconnect the spark plug wire or battery cable for safety.
- Yoqilg'i quyish: Place a drain pan under the fuel tank. Use a fuel line clamp to pinch off the fuel line, then disconnect it from the carburetor and drain any remaining fuel into the pan.
- Havo filtri majmuasini olib tashlang: Loosen and remove the bolts or clamps securing the air filter housing. Carefully detach the air filter assembly.
- Bog'lanishlar va shlanglarni ajratib oling: Note the routing of all fuel lines, vacuum hoses, and throttle/choke linkages connected to the old carburetor. Take photos if necessary for reassembly. Disconnect them carefully.
- Eski karbüratörü olib tashlang: Unbolt the old carburetor from the engine manifold. Remove any old gaskets.
- Yangi karbüratörü o'rnatish: Install new gaskets on both sides of the new carburetor. Mount the new TOTEDELL LT1050 Carburetor onto the engine manifold, ensuring a snug fit. Tighten bolts evenly.
- Komponentlarni qayta ulash: Reattach all fuel lines, vacuum hoses, and throttle/choke linkages to the new carburetor in their original positions. Ensure all connections are secure.
- Install New Air Filter: Place the new air filter into its housing and reattach the air filter assembly.
- Quvvatni qayta ulash: Reconnect the spark plug wire or battery cable.
- Yoqilg'ini to'ldirish: Refill the fuel tank with fresh, appropriate fuel. Check for any leaks.
4.1-rasm: Old view of the LT1050 Carburetor, showing the air intake and fuel inlet connections.
Rasm 4.2: Yon view of the LT1050 Carburetor, highlighting the fuel pump and various hose connections.
5. Operatsiya
Once the TOTEDELL LT1050 Carburetor and Air Filter Kit are correctly installed, the engine's fuel delivery and air intake systems will function as designed. Start the engine according to your lawn tractor's manufacturer instructions. Allow the engine to warm up and check for smooth operation, proper idle, and responsiveness. If any issues arise, refer to the Troubleshooting section.
6. Xizmat ko'rsatish
Regular maintenance ensures the longevity and optimal performance of your carburetor and air filter.
6.1 Havo filtriga texnik xizmat ko'rsatish
- Tekshirish: Inspect the air filter regularly (e.g., every 25 hours of operation or annually, whichever comes first).
- Tozalash: If the air filter is only lightly soiled, it can be gently tapped to remove loose debris. Do not wash or use compressed air, as this can damage the filter media.
- O'zgartirish: Replace the air filter if it is heavily soiled, torn, or damaged. A clogged air filter can lead to reduced engine performance and increased fuel consumption.
6.2 Carburetor Maintenance
- Yoqilg'i sifati: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if the tractor will be stored for extended periods.
- Tekshirish: Periodically check fuel lines for cracks or leaks and replace as needed. Ensure all connections are tight.
- Tozalash: If the carburetor becomes clogged due to fuel deposits, it may require cleaning. This typically involves disassembling the carburetor and cleaning its internal passages with carburetor cleaner. This task is recommended for experienced users or professional technicians.
7. Muammolarni bartaraf qilish; nosozliklarni TUZATISH
If you encounter issues after installation, consult the following troubleshooting guide:
| Muammo | Mumkin sabab | Yechim |
|---|---|---|
| Dvigatel ishga tushmaydi | No fuel reaching carburetor; Clogged fuel filter; Incorrect choke setting; Spark plug issue. | Check fuel level and fuel lines. Replace fuel filter. Ensure choke is set correctly. Check spark plug. |
| Dvigatel qo'pol ishlaydi yoki to'xtab qoladi | Dirty carburetor; Clogged air filter; Old or contaminated fuel; Vacuum leak. | Clean carburetor (if experienced). Replace air filter. Drain old fuel and refill with fresh. Check hose connections. |
| Ish paytida quvvatni yo'qotish | Clogged air filter; Partially clogged carburetor; Fuel delivery issue. | Replace air filter. Inspect and clean carburetor. Check fuel pump and lines. |
| Yoqilg'i oqadi | Loose connections; Damaged gaskets; Cracked fuel line. | Tighten all fuel line connections. Replace damaged gaskets. Replace cracked fuel lines. |
If these steps do not resolve the issue, it is recommended to consult a professional service technician.
8. Texnik shartlar
Key specifications for the TOTEDELL LT1050 Carburetor Kit:
- Brend: TOTEDELL
- Model raqami: LT1050
- UPC: 753829960962
- Moslik: Cub Cadet 13AQ11CP709, 13AQ11CP712, 13AQ11CP710, SLT1554, GT1554 Lawn Tractors
- Komponentlar: Carburetor, Air Filter, Fuel Pump, Fuel Line, Gaskets, Clamps
9. Kafolat va qo'llab-quvvatlash
This TOTEDELL product comes with a manufacturer's warranty. For specific warranty details, please refer to the product packaging or contact TOTEDELL customer support. If you require further assistance or have questions not covered in this manual, please visit the official TOTEDELL websaytga yoki mijozlarga xizmat ko'rsatish bo'limiga murojaat qiling.
Bog'lanish uchun ma'lumot: Iltimos, sotib olish hujjatlariga yoki ishlab chiqaruvchining ma'lumotlariga qarang webeng dolzarb qo'llab-quvvatlash aloqa ma'lumotlari uchun sayt.
