BAOFENG UV-32 GPS 10W Ham Radio User Manual

1. Kirish

The BAOFENG UV-32 is an advanced 10W handheld two-way radio designed for reliable long-range communication. It features a 2-inch large color screen, built-in GPS, NOAA weather reception, and convenient mobile application programming. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your UV-32 radio to ensure optimal performance and user safety.

Asosiy xususiyatlarga quyidagilar kiradi:

• 10W maximum output power with Tri-power selectable levels.
• Integrated GPS functionality for positioning.
• NOAA Weather Receiver and Alarm function for real-time weather alerts.
• Multiple frequency modification methods, including One Key Frequency Match and APP programming.
• AM Aviation Band reception.
• 2500mAh USB-C rechargeable battery with multiple charging options.
• Support for DTMF, VOX, CTCSS, and DCS.

2. Mahsulot tugadiview va komponentlar

Familiarize yourself with the components included with your BAOFENG UV-32 radio and its main parts.

2.1 Qutida nima bor

• 1x BAOFENG UV-32 GPS Radio
• 1x High Gain Original Antenna
• 1x 2500mAh USB-C Battery
• 1x Desktop Charger
• 1x kamar klipi
• 1x Qo'l tasmasi
• 1x Foydalanuvchi uchun qo'llanma

Figure 2.1: BAOFENG UV-32 radio and its complete set of accessories.

2.2 Radio Parts Identification

Figure 2.2: Labeled components of the BAOFENG UV-32 radio.

1. Power & Volume Switch: Radioni yoqish/o'chirish va ovoz balandligini sozlash uchun aylanadi.
2. Chastotani almashtirish: Used for channel or frequency selection.
3. Mikrofon: Uzatish vaqtida ovozli kiritish uchun.
4. Spiker: Ovoz chiqishi uchun.
5. PTT (Push-to-Talk) tugmasi: O'tkazish uchun bosing va ushlab turing, qabul qilish uchun qo'yib yuboring.
6. Customizable SK1 Button: A programmable shortcut key.
7. K Port: For connecting external audio accessories like headsets or programming cables.

3. Sozlash

3.1 Batareyani o'rnatish

To install the 2500mAh USB-C battery:

1. Batareyani radioning orqa tomonidagi oluklar bilan tekislang.
2. Batareyani joyiga mahkam o'rnashguncha yuqoriga suring.
3. Ensure the battery release latch is engaged to prevent accidental detachment.

3.2 Antenna biriktirilishi

Screw the high-gain original antenna clockwise onto the antenna connector at the top of the radio until it is finger-tight. Do not overtighten.

3.3 Batareyani zaryadlash

The BAOFENG UV-32 offers multiple charging methods for convenience.

Figure 3.1: Available charging methods for the UV-32 radio.

• Stol usti zaryadlovchi qurilmasi: Place the radio into the provided desktop charging cradle. Connect the AC adapter to the cradle and a power outlet. The indicator light will show charging status.
• USB-C Direct Charging: The 2500mAh battery supports direct USB-C charging. Connect a standard USB-C cable to the port on the battery and to a USB power source (e.g., laptop, car USB charger, power bank).

A full charge typically provides up to 30 hours of battery life.

4. Foydalanish bo'yicha ko'rsatmalar

4.1 Quvvatni yoqish/o'chirish va ovoz balandligini boshqarish

Rotate the Power & Volume Switch (1) clockwise to turn the radio on and increase volume. Rotate counter-clockwise to decrease volume and turn the radio off.

4.2 Frequency Range and Multi-Band Operation

The BAOFENG UV-32 supports a wide range of frequencies:

• Transmit (TX): 144-148 MGts, 420-450 MGts
• Receive (RX): FM 76-108MHz, AM 108-136MHz (Aviation Band), VHF 136-174MHz, 220-260MHz, UHF 350-390MHz, 400-520MHz

Figure 4.1: Multi-band frequency capabilities of the UV-32.

4.3 Channel Management and Programming

The radio supports up to 1000 channels (10 Zones x 100 Channels).

4.3.1 Mobile APP Programming

The UV-32 can be programmed wirelessly via a mobile application, offering flexible frequency modification.

Figure 4.2: Wireless programming via mobile application.

APPni yuklab olish uchun:

• iOS: Ni qidirish "Radio Frequency Programmer" or "Walkie-talkie Tool" in the App Store.
• Android: Tashrif buyuring walkietalkiesoftware.com, navigate to Software → BAOFENG → UV-32.

4.3.2 One Key Frequency Match

This feature allows for quick frequency copying from another radio.

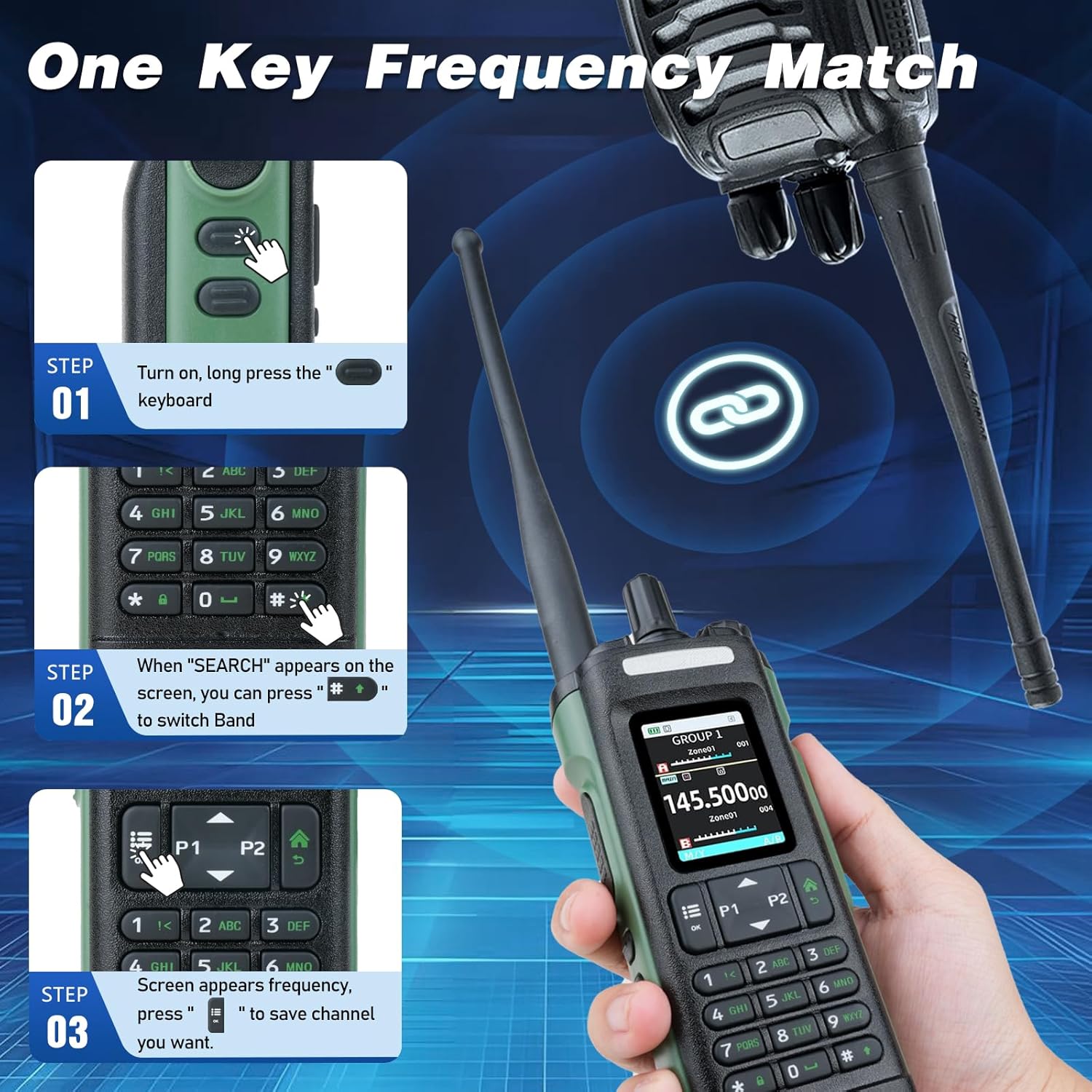

Figure 4.3: Steps for One Key Frequency Match.

1. Turn on the radio. Long press the "OK" button on the keyboard.
2. When "SEARCH" appears on the screen, press the "SEARCH" button to switch bands.
3. Once the desired frequency appears, press "OK" to save the channel.

4.4 GPS funksiyasi

The built-in GPS function provides positioning capabilities, which can be crucial for outdoor activities, search, and rescue operations.

Figure 4.4: GPS positioning feature.

4.5 NOAA Weather Receiver & Alarm

The UV-32 can receive NOAA weather forecasts and emergency alerts, providing critical information during severe weather conditions.

4.6 Displey va interfeys

The 2-inch color large screen display enhances visibility and user experience, especially in low-light conditions.

Figure 4.5: 2-inch color large screen display.

4.7 Power Output Selection

The radio offers 10W max output with Tri-power selectable levels (High/Medium/Low) to optimize battery life and transmission range based on your needs.

4.8 Qo'shimcha xususiyatlar

• DTMF: Dual-Tone Multi-Frequency signaling for various control functions.
• VOX: Voice Operated Exchange allows hands-free transmission.
• CTCSS/DCS: Continuous Tone-Coded Squelch System / Digital Coded Squelch for filtering unwanted signals.

5. Xizmat ko'rsatish

5.1 Batareyani parvarish qilish

• Batareyaning ishlash muddatini uzaytirish uchun uni tez-tez to'liq zaryadsizlantirishdan saqlaning.
• Batareyani uzoq vaqt ishlatilmaganda salqin va quruq joyda saqlang.
• Batareyani haddan tashqari harorat yoki to'g'ridan-to'g'ri quyosh nuriga qo'ymang.

5.2 Tozalash

Radioning tashqi qismini yumshoq, d bilan artingamp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all ports are dry before charging or connecting accessories.

5.3 Saqlash

When storing the radio for a long time, remove the battery and store both components separately in a dry, temperature-controlled environment.

6. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

7. Texnik shartlar

8. Kafolat va qo'llab-quvvatlash

8.1 Kafolat haqida ma'lumot

The BAOFENG UV-32 comes with a 30-day warranty from the date of purchase. Please retain your proof of purchase for any warranty claims.

8.2 Mijozlarni qo‘llab-quvvatlash

For further assistance, technical support, or warranty inquiries, please refer to the official BAOFENG website or contact their customer service channels as provided on their packaging or product documentation.
