1. Kirish
Thank you for choosing the Philips 21W 3000LM Outdoor LED Security Light. This manual provides important information regarding the safe installation, operation, and maintenance of your new security light. Please read these instructions carefully before use and retain them for future reference.
Xavfsizlik ma'lumotlari:
- O'rnatish yoki xizmat ko'rsatishdan oldin har doim elektrni uzib qo'ying.
- O'rnatish mahalliy elektr qoidalariga muvofiq malakali elektrik tomonidan amalga oshirilishi kerak.
- Yoritilganda LED yorug'lik manbasiga to'g'ridan-to'g'ri qaramang.
- Mahsulotning yiqilib tushmasligi uchun mahkam o'rnatilganligiga ishonch hosil qiling.
2. Qutida nima bor
Barcha komponentlar mavjudligini tekshiring:
- Philips Outdoor LED Security Light (1 unit)
- Foydalanuvchi qo'llanmasi (1 nusxa)
- Screws (for mounting)
3. Mahsulot xususiyatlari
Your Philips security light is designed with advanced features for optimal outdoor illumination and security:
High Brightness and Wide Beam Angle
Emits a cool white light at 5000K, providing 3000 lumens of brightness. The two adjustable heads allow for customizable light distribution over a wide area.
Rasm: tugadiview of key product features including durable body, bright light, wired power, adjustable heads, IP54 water resistance, and anti-corrosion.
High Sensitivity PIR Motion Sensor
The PIR sensor detects movement within a range of 0 to 21 meters and an induction angle of 180°. The illumination duration can be set from 1 to 10 minutes.

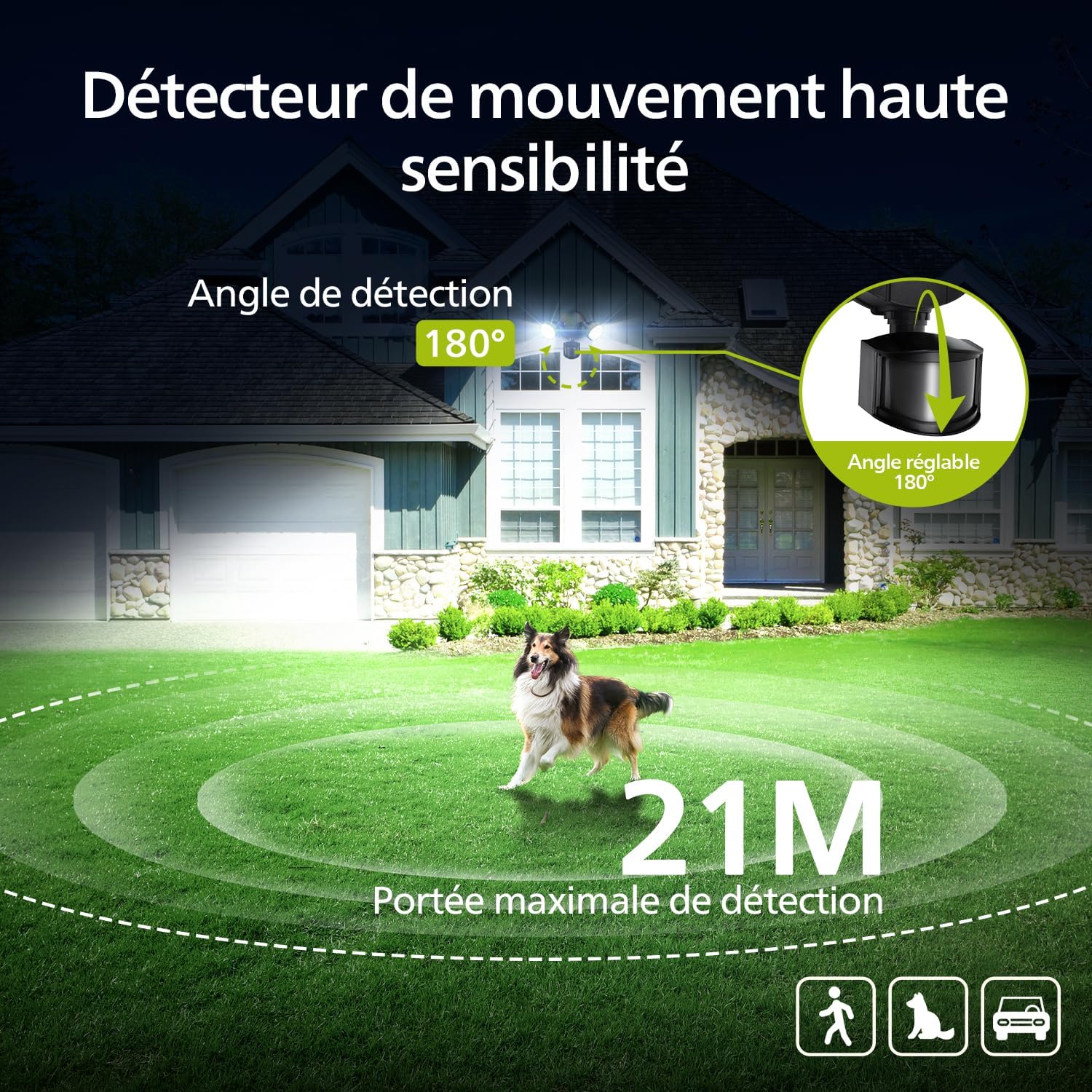

Image: Diagram illustrating the 180-degree detection angle and 21-meter maximum detection range of the motion sensor.
4 yoritish rejimi
Choose from Test Mode, Security Mode, Dusk-to-Dawn Mode, and Manual Mode (permanent illumination at 80% brightness for up to 6 hours).
Image: Visual explanation of the four distinct lighting modes: Test, Sensor, Dusk-to-Dawn, and Priority.
Weather Resistant Design (IP54)
Constructed with an aluminum lamp body, tested for corrosion and rust resistance against heavy rain, high humidity, intense sunlight, UV exposure, and extreme temperatures.

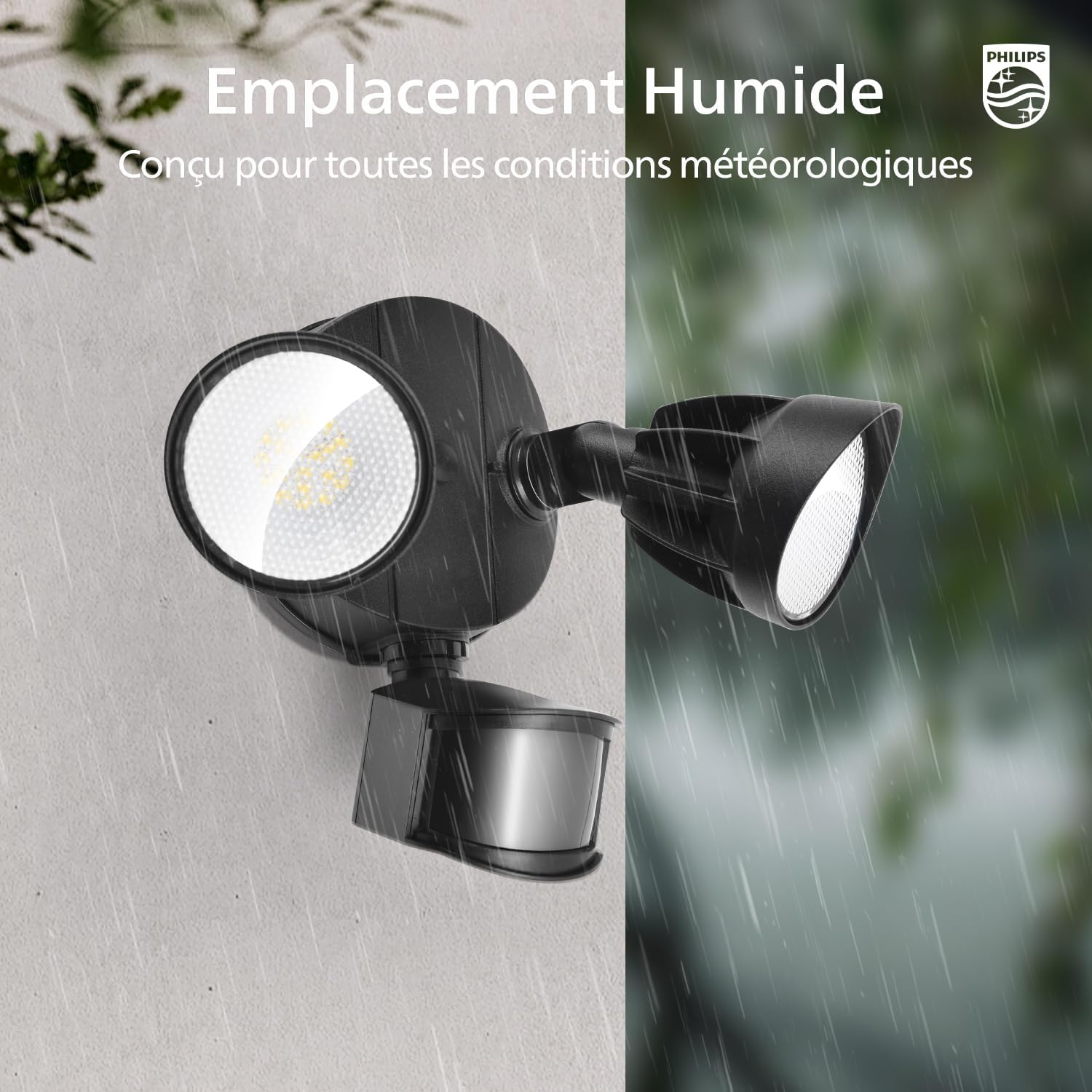

Image: The security light is depicted in both dry and wet environments, highlighting its robust, weather-resistant design for humid locations.
Sozlanishi mumkin bo'lgan boshlar
The two light heads are individually adjustable, allowing you to direct light precisely where needed for tailored illumination.
Image: Illustration demonstrating the flexible adjustment of the light heads for precise light direction.
Economical and Energy Efficient
Equipped with integrated LEDs, eliminating the need for bulb replacement and reducing electricity consumption costs.
4. O'rnatish
The security light is pre-assembled for easy installation. All necessary accessories and instructions are included. No complex wiring is required.
Tavsiya etilgan o'rnatish balandligi: 2.5 metr

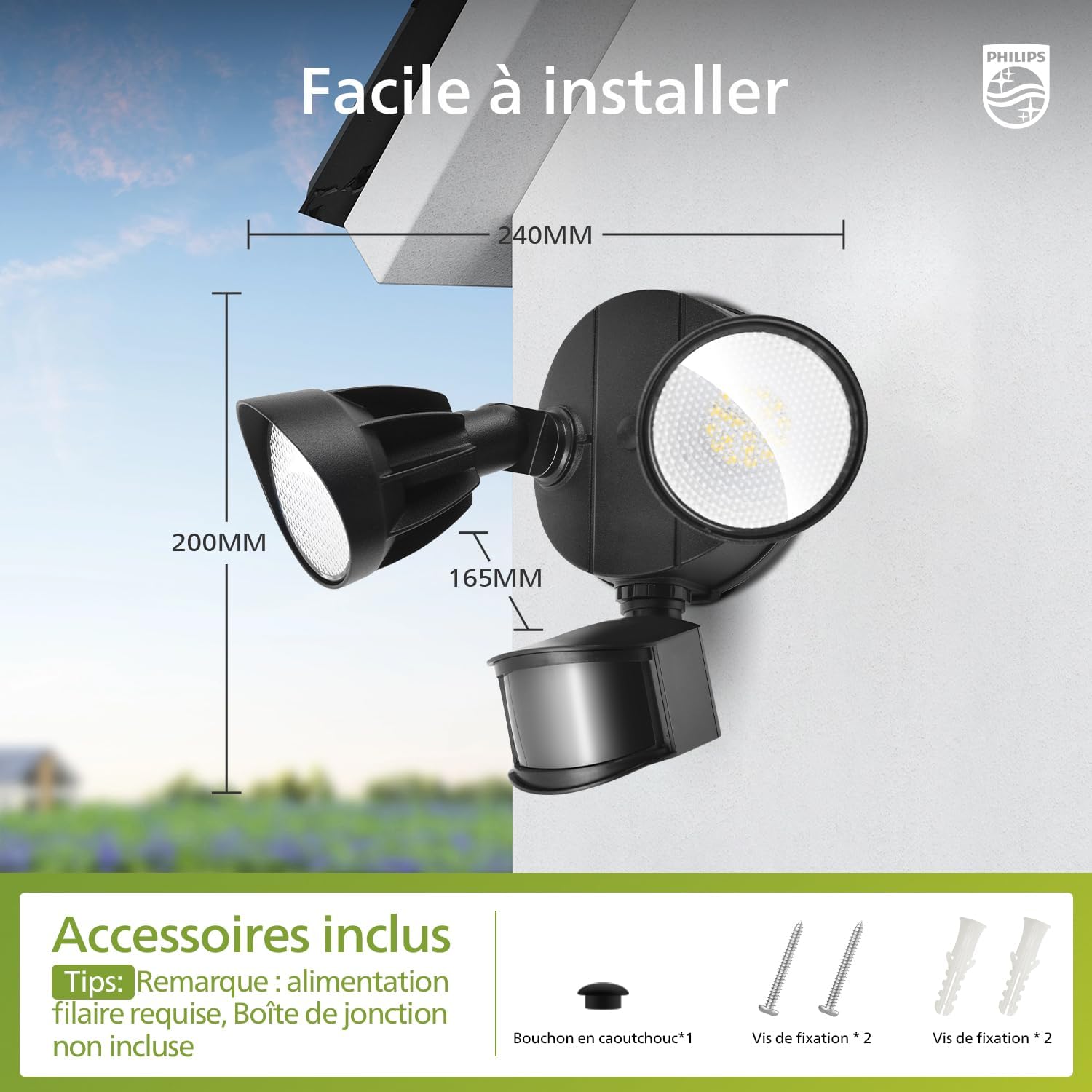

Image: Product dimensions and included accessories for installation.
O'rnatish imkoniyatlari:
The light supports both wall mounting and soffit mounting.
Rasm: Masalanamples of soffit mounting and wall mounting. A waterproof seal between the wall and the lamp is recommended for better water resistance. Soffit mounting may slightly reduce detection range.
O'rnatish bosqichlari:
Image: Step-by-step guide for installing the security light.
- Prepare the mounting surface and ensure power is off.
- Separate the mounting base from the light fixture.
- Secure the mounting base to the desired location using the provided screws.
- Connect the electrical wiring (wired power required, junction box not included).
- O'rnatilgan taglikka yorug'lik moslamasini ulang.
- Adjust the light heads and sensor to the desired angles.
5. Operatsiya
The security light offers various modes and adjustable settings for detection range and illumination duration.
Adjusting Detection Range and Illumination Duration:
Image: Controls for adjusting detection range and illumination time.
- Masofa: Adjust the dial to set the detection range: L (0-6m), M (0-12m), H (0-21m).
- VAQT: Adjust the dial to set the illumination duration after activation: 1 minute, 3 minutes, or 10 minutes.
Yoritish rejimlari:
- Sinov rejimi: Activates day or night. Light turns on for 5 seconds upon motion detection, then turns off. No movement: remains off.
- Xavfsizlik rejimi (Sensor rejimi): Activates only at night. Light turns on for 1/3/10 minutes upon motion detection, then turns off. No movement: remains off.
- Qorong'udan tonggacha rejim: Activates only at night. Automatically turns on at dusk and off at dawn.
- Manual Mode (Priority Mode): Continuous illumination at 80% brightness for up to 6 hours.
Activating/Deactivating Priority Mode:

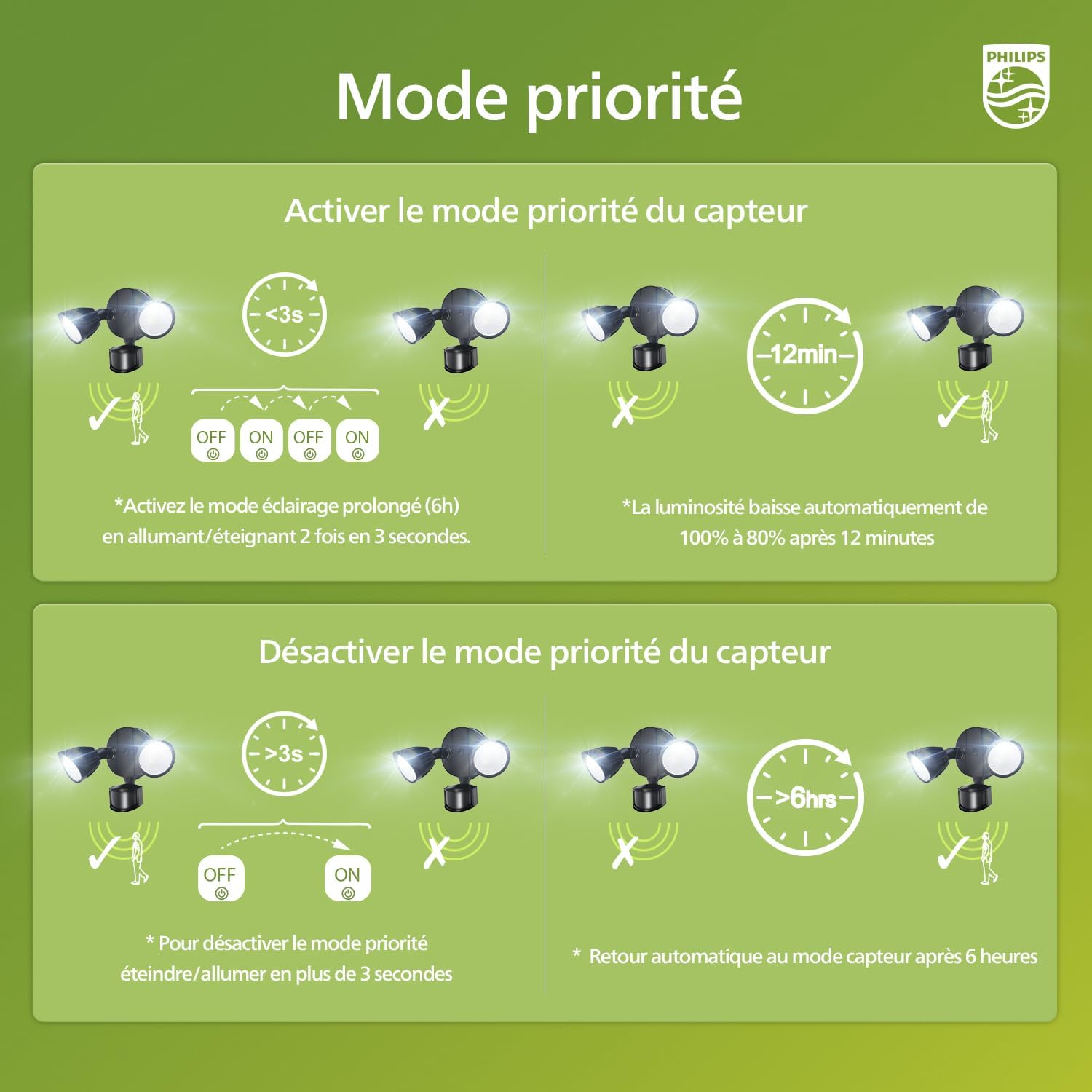

Image: Instructions for activating and deactivating the priority mode.
- To Activate Priority Mode (Prolonged Lighting): Switch the light ON/OFF twice within 3 seconds. The light will stay on at 80% brightness for 6 hours. After 12 minutes, the brightness automatically reduces from 100% to 80%.
- To Deactivate Priority Mode: Switch the light ON/OFF for more than 3 seconds. The light will automatically return to sensor mode after 6 hours.
6. Xizmat ko'rsatish
To ensure optimal performance and longevity of your Philips security light, follow these simple maintenance guidelines:
- Tozalash: Yorug'lik moslamasini vaqti-vaqti bilan yumshoq, d bilan artib turingamp cloth to remove dirt and debris. Do not use abrasive cleaners or solvents, as they may damage the finish or electrical components.
- Tekshirish: Regularly check the mounting hardware for tightness and ensure the light heads and sensor are securely positioned. Inspect the wiring for any signs of wear or damage.
- LEDlar: The integrated LEDs are designed for long-term use and do not require replacement. If the light stops functioning, refer to the troubleshooting section or contact customer support.
7. Muammolarni bartaraf qilish; nosozliklarni TUZATISH
If you encounter issues with your Philips security light, please refer to the following common problems and solutions:
| Muammo | Mumkin sabab | Yechim |
|---|---|---|
| Kechasi yorug'lik yoqilmaydi. | 1. Elektr ta'minoti muammosi. 2. Sensor settings incorrect. 3. Ambient light too high. | 1. Check power connections and circuit breaker. 2. Ensure sensor is set to a night-only mode (Security or Dusk-to-Dawn). Adjust sensitivity. 3. Relocate the light or adjust sensor angle to avoid interference from other light sources. |
| Chiroq doimiy ravishda yonib turadi. | 1. Manual/Priority mode activated. 2. Sensor continuously detecting movement. 3. Sensor noto'g'ri. | 1. Deactivate Priority Mode as per instructions. 2. Adjust sensor angle or sensitivity to avoid constant detection. 3. Muammo davom etsa, mijozlarni qo'llab-quvvatlash xizmatiga murojaat qiling. |
| Yorug'lik miltillaydi yoki xira. | 1. Barqaror quvvat manbai. 2. Loose wiring connection. | 1. Consult an electrician to check power stability. 2. Ensure all wiring connections are secure (power off before checking). |
If the problem persists after trying these solutions, please contact Philips customer support for assistance.
8. Texnik shartlar
| Xususiyat | Tafsilot |
|---|---|
| Brend | Philips |
| Model raqami | 7601908012 |
| Ishlab chiqaruvchi | Belgilash |
| Rang | Qora |
| Material | Plastic (Lamp body: Aluminum) |
| Uslub | Zamonaviy |
| Foydalanish | Outdoor (Driveway, Yard, Garage, Garden, Terrace) |
| Quvvat manbai | Elektr kabeli |
| O'rnatish turi | Devorga o'rnatish |
| Maxsus xususiyatlar | Anti-rust, Motion Detector, Foldable, Energy Efficient, Waterproof |
| Nazorat usuli | Bosish tugmasi |
| Lampochka turi | LED (o'rnatilgan) |
| Lampochkalar soni | 60 |
| jildtage | 220 volt |
| Yengil rang | Sovuq oq |
| Wattage | 21 vatt |
| Yorug'lik samaradorligi | 4200 lm |
| Rang harorati | 5000 Kelvin |
| Maksimal yorug'lik chiqishi | 4200 lumen |
| Suv o'tkazmaydigan daraja | IP54 (Impermeable) |
| Energiya yorlig'i | D |
| Smart Home muvofiqligi | Aqlli uy tizimlariga mos kelmaydi |
| Ishlab chiqaruvchi mamlakat; ta'minotchi mamlakat | Xitoy |
9. Kafolat va qo'llab-quvvatlash
Your Philips security light is covered by a legal guarantee. For detailed information regarding warranty terms and conditions, please refer to the legal guarantee document included with your product or visit the official Philips support websayt.
Image: Legal Guarantee information for products sold in the European Union.
For more information on your rights, visit: europa.eu/youreurope/guarantees
For technical support or service inquiries, please contact Philips customer service through their official channels.
