SONOFF MINI Duo-L Zigbee Smart Switch Instruction Manual

1. Mahsulot tugadiview

The SONOFF MINI Duo-L is a compact, dual-channel Zigbee smart switch designed for easy integration into existing electrical systems, particularly those without a neutral wire. It enables smart control of two independent loads, offering remote operation, automation, and compatibility with various smart home platforms.

Asosiy xususiyatlar:

• No Neutral Wire Smart Switch: Ideal for older homes with single-wire systems, simplifying installation without requiring rewiring.
• Dual Channel Zigbee Switch: Allows independent control of two devices with a total load of up to 12A and 8A per channel.
• Aqlli yangilash: Converts traditional switches into smart switches, enabling remote control and automation.
• Zigbee 3.0 Compatibility: Seamlessly integrates with smart home systems like Home Assistant, enhancing device compatibility and automation possibilities.
• Yilni dizayn: Fits easily into standard switch boxes, even in confined spaces, for discreet modernization.

The device supports various control methods including manual buttons, the eWeLink app, and voice commands via compatible smart assistants. It can be powered by either DC 9-23V or AC 100-240V, making it versatile for different electrical setups.

2. Nimalar kiradi

The SONOFF MINI Duo-L package typically includes the following items:

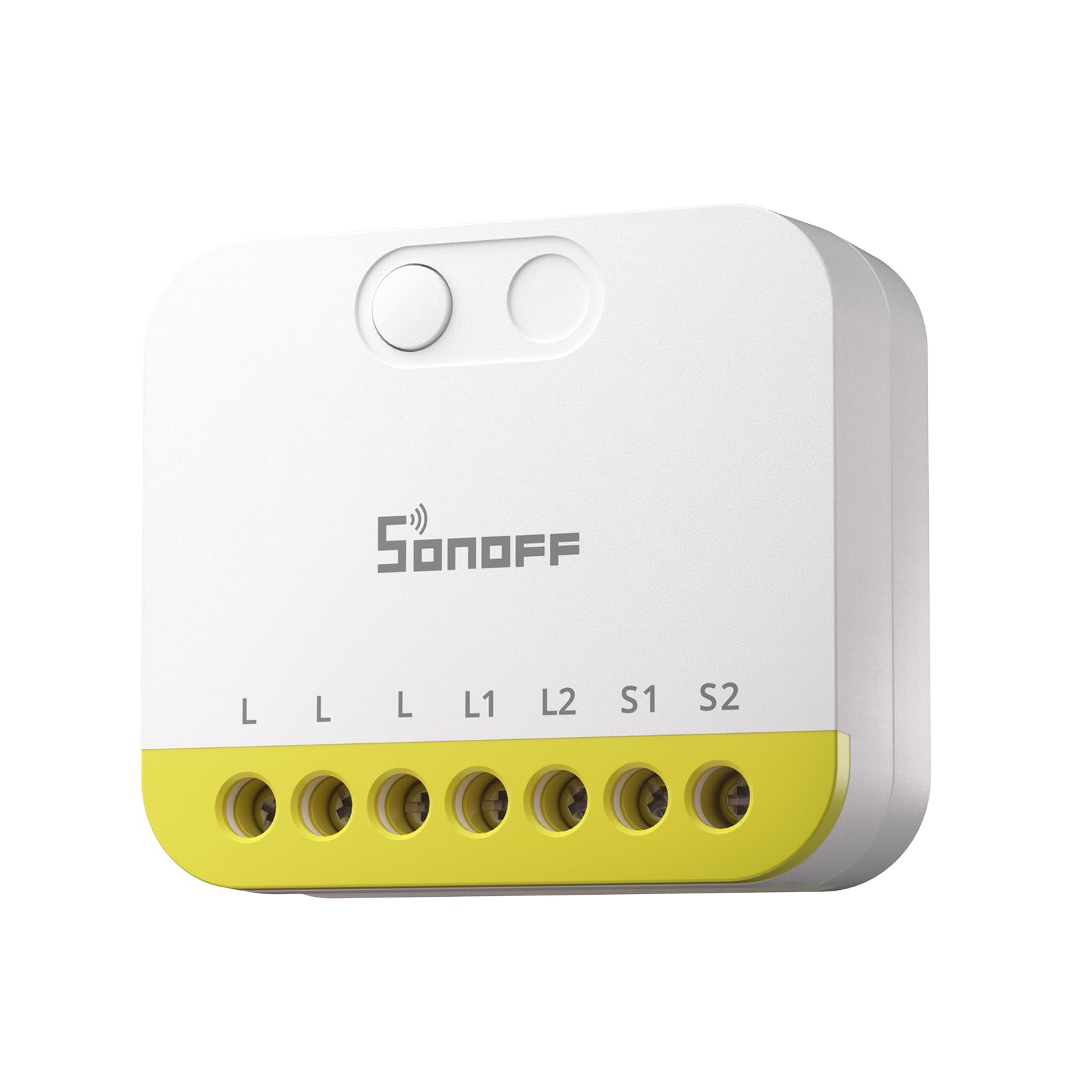

• MINI-ZB2GS-L Smart Switch
• Foydalanuvchi uchun qo'llanma
• O'rnatish kliplari
• Small Screwdriver (for terminal connections)

3. Texnik spetsifikatsiyalar

4. Xavfsizlik ma'lumotlari

Warning: Please install and maintain this device by a professional electrician. To avoid electric shock hazards, do not operate any connection or contact the terminal connector while the device is powered on!

• Always turn off the main power supply at the circuit breaker before performing any installation, wiring, or maintenance.
• Ensure all wiring is done according to local electrical codes and regulations.
• Do not exceed the maximum load ratings of the device (12A total, 8A per channel).
• This device is rated IP00 and is not waterproof. It must be installed in a dry, protected environment or within a waterproof enclosure if used outdoors.
• Qurilmani bolalardan uzoqroq tuting.

5. O'rnatish bo'yicha qo'llanma

5.1 Tayyorlash

• Ensure the power to the circuit you will be working on is completely off at the main circuit breaker.
• Gather necessary tools: screwdriver (included), wire strippers, electrical tape.
• Identify the wires in your wall box: Live wire (L), Load wires (L1, L2 for two channels), and potentially a Neutral wire (N) if your setup includes one. The MINI Duo-L supports no-neutral wiring.

5.2 Jismoniy o'rnatish

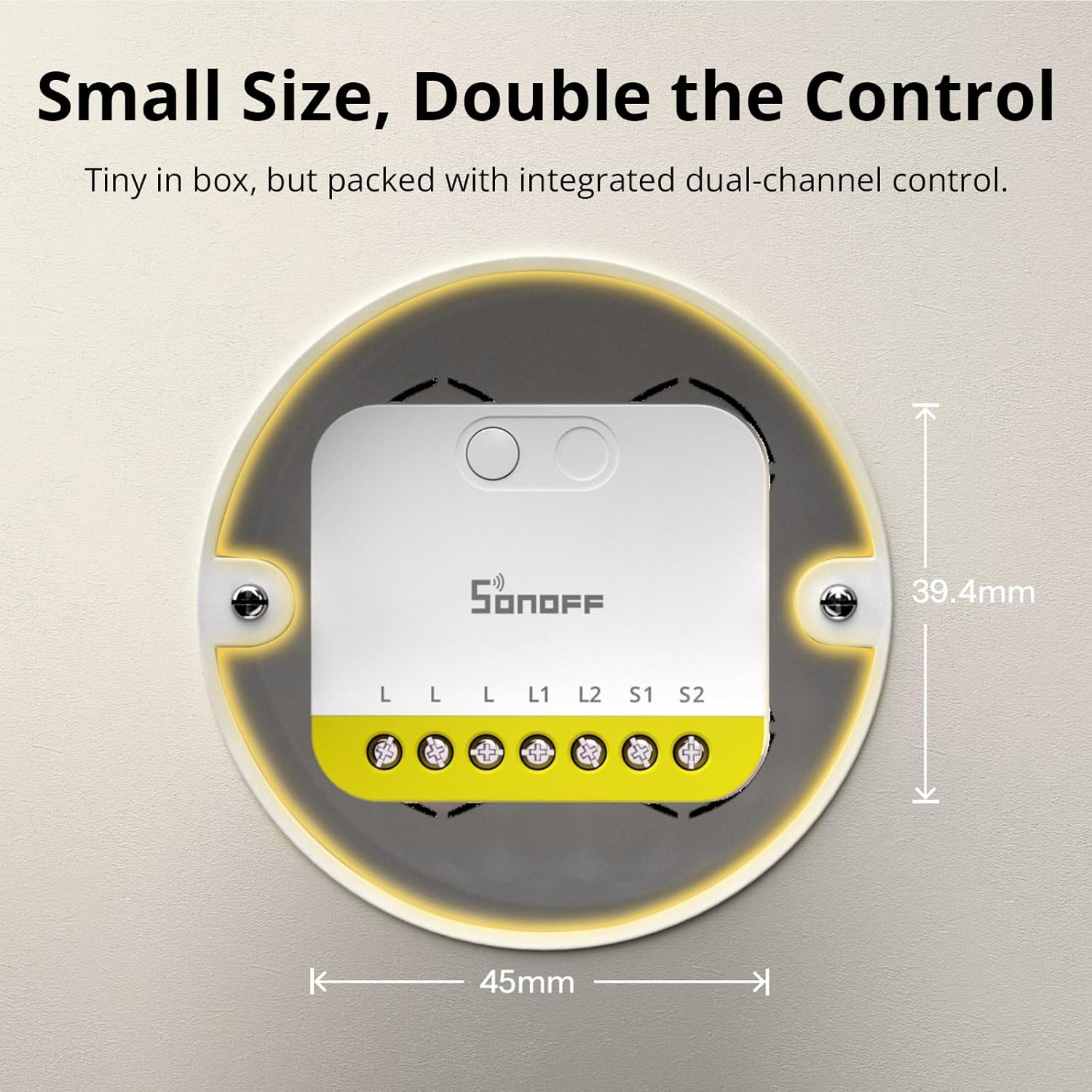

The compact design of the SONOFF MINI Duo-L allows it to fit inside most standard wall switch boxes, converting your existing switches into smart ones.

The device is designed to work without an anti-flicker module for loads as low as 3W, simplifying the setup process.

The MINI Duo-L is compatible with various external switch types, including rocker, momentary, and SPDT switches.

The detach relay feature allows your physical switch button to act as smart triggers for lighting scenes, which is an ideal solution for smart bulbs.

6. Simlarni ulash bo'yicha ko'rsatmalar

Carefully follow the wiring diagrams provided in the user manual and the video below. Ensure all connections are tight and secure to prevent electrical hazards.

• Live Wire (L): Connect the incoming live wire to the 'L' terminal on the device.
• Load Wires (L1, L2): Connect the load wires for your lights/appliances to the 'L1' and 'L2' terminals respectively.
• Switch Wires (S1, S2): Connect the wires from your physical wall switches to the 'S1' and 'S2' terminals for manual control.
• Neutral Wire (N): If your installation has a neutral wire, connect it to the 'N' terminal. If not, the device is designed to operate without it.

7. Qurilmani ulash

After successful wiring, you need to pair your SONOFF MINI Duo-L with your Zigbee gateway using the eWeLink app.

1. Turn the main power back on at the circuit breaker.
2. Yuklab oling va oching eWeLink app smartfoningizda.
3. Ensure your Zigbee gateway is already added and connected within the eWeLink app.
4. In the eWeLink app, tap the '+' icon to add a device.
5. Select 'Scan' and scan the QR code located on the back of the SONOFF MINI Duo-L device.
6. Alternatively, long-press the button on the device for approximately 5 seconds until the LED indicator flashes slowly. This indicates the device is in pairing mode.
7. Follow the on-screen instructions in the eWeLink app to complete the pairing process.

The SONOFF MINI Duo-L is compatible with multiple Zigbee hubs, including SONOFF Zigbee Bridge Pro, Zigbee Bridge Ultra, iHost, NSPanel Pro, and various Dongle Plus models.

8. Operating Your Smart Switch

8.1 Qo'lda boshqarish

You can continue to use your existing physical wall switches to control the connected lights or appliances. The smart switch will respond to these manual actions.

8.2 Ilovalarni boshqarish

Once paired, open the eWeLink app to remotely control the two channels of your SONOFF MINI Duo-L. You can turn each channel on or off independently from anywhere with an internet connection.

8.3 Ovozli boshqaruv

If integrated with a compatible Zigbee hub and voice assistant (e.g., Amazon Alexa, Google Home), you can control your lights and appliances using voice commands. For example, "Alexa, turn on living room light 1."

8.4 Aqlli sahnalar va avtomatlashtirish

Utilize the eWeLink app or your smart home system to create personalized smart scenes and schedules. This allows for automated control based on time, events, or other smart devices in your home.

9. Xizmat ko'rsatish

• Muntazam tekshiruvlar: Periodically inspect all wiring connections to ensure they remain tight and free from corrosion or damage.
• Tozalash: Keep the device clean and free from dust. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
• Atrof-muhit: Ensure the device is not exposed to moisture, direct sunlight, or extreme temperatures outside its operating range (0°C to 40°C).
• Dasturiy ta'minotni yangilash: Check the eWeLink app regularly for available firmware updates to ensure optimal performance and security.

10. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

10.1 Qurilma javob bermayapti

• Quvvatlantirish manbai: Verify that the main power supply to the device is on and the circuit breaker has not tripped.
• Zigbee Network: Ensure your Zigbee gateway is online and functioning correctly. Check the signal strength between the switch and the gateway.
• Qayta ulash: If the issue persists, try re-pairing the device with your Zigbee gateway as described in Section 7.

10.2 Lights Flickering (No Neutral Wire Setup)

• The SONOFF MINI Duo-L is designed to work without a neutral wire and typically does not require a bypass for loads above 3W.
• If flickering occurs with very low wattage LED bulbs (below 3W), consider installing a bypass capacitor (not included) in parallel with the load to stabilize the circuit.

10.3 Ulanish muammolari

• Yaqinlik: Ensure the device is within close range of your Zigbee gateway during the pairing process.
• Tarmoq turi: Confirm that your Wi-Fi network is 2.4GHz, as the device may not support 5GHz networks for initial setup.
• Qayta o'rnatish: Perform a factory reset on the device by long-pressing the button for 5 seconds until the LED flashes slowly, then attempt pairing again.

11. Kafolat va qo'llab-quvvatlash

Kafolat:

This SONOFF product comes with a two-year warranty from the date of purchase.

Mijozlarni qo‘llab-quvvatlash:

For technical assistance, troubleshooting, or any product-related inquiries, please contact SONOFF customer support at support@itead.cc.
