Targa TG-4.8KZ 2000W RMS Monoblock AmpFoydalanuvchi uchun qo'llanma

1. Mahsulot tugadiview

The Targa TG-4.8KZ Competition Series Monoblock Amplifier is designed for high-power subwoofer systems, providing clarity and control. It features a Class D MOSFET power supply, delivering 2000W RMS of efficient power with minimal distortion. The TG-4.8KZ is 1-ohm stable, suitable for demanding audio setups. It includes adjustable gain, low-pass and subsonic filters, and a variable bass boost for precise audio tuning. Heavy-duty terminals and a heat-sink design ensure durability and stable operation.

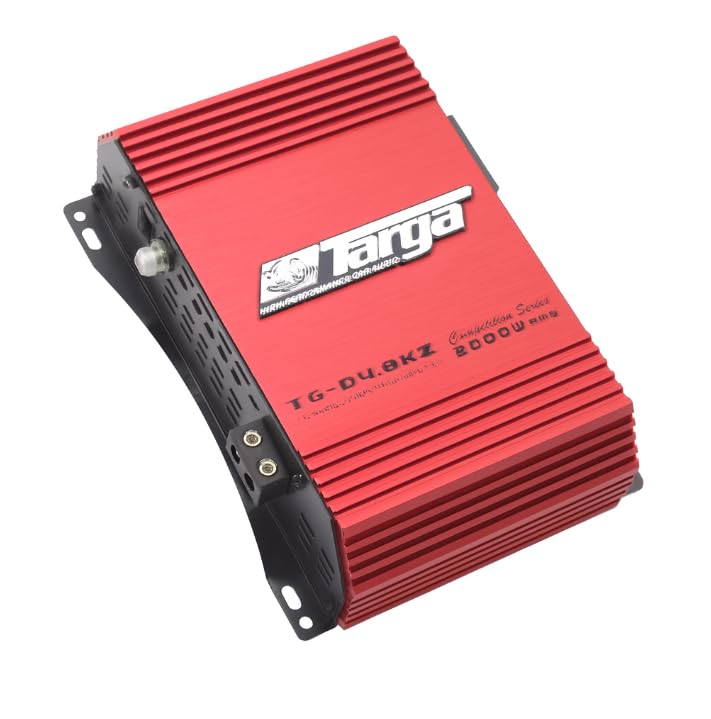

1.1-rasm: Old view of the Targa TG-4.8KZ Monoblock Ampko'taruvchi, ko'rsatuvchiasing its robust design and connection terminals.

2. Xavfsizlik ma'lumotlari

Read all instructions carefully before installing and operating the amplifier. Failure to follow these instructions may result in damage to the amplifier, speakers, or vehicle, and may void your warranty.

• Professional o'rnatish tavsiya etiladi: Due to the complexity of car audio systems and high power requirements, professional installation is highly recommended.
• Quvvatli ulanishlar: Har qanday quvvat ulanishini amalga oshirishdan oldin har doim avtomobilning batareyasining salbiy terminalini ajratib oling. Qisqa tutashuvlarning oldini olish uchun barcha quvvat va yerga ulangan ulanishlar xavfsiz va to'g'ri izolyatsiya qilinganligiga ishonch hosil qiling.
• Elektr simlari: Use appropriate gauge wiring for power, ground, and speaker connections. Undersized wiring can lead to overheating and potential fire hazards.
• O'rnatish: ni o'rnating amplifier securely in a location that allows for adequate ventilation. Avoid mounting in areas exposed to direct sunlight, excessive heat, moisture, or dust.
• Ovoz darajasi: Uzoq vaqt davomida yuqori ovoz balandligiga ta'sir qilish eshitish qobiliyatiga zarar yetkazishi mumkin. Ovoz balandligini mas'uliyat bilan sozlang.
• Sigortalar: Always replace fuses with the same type and rating. Using incorrect fuses can cause serious damage.

3. Paket tarkibi

Paketda barcha elementlar mavjudligiga ishonch hosil qiling:

• 1 × Targa TG-4.8KZ Monoblock Amphayotiyroq
• Foydalanuvchi uchun qo'llanma (ushbu hujjat)
• O'rnatish uskunalari (vintlar va boshqalar - paketga qarab farq qilishi mumkin)

4. Xususiyatlari

The Targa TG-4.8KZ Monoblock Amplifier incorporates several features for high-performance audio:

• 2000W RMS quvvat chiqishi: Delivers substantial power for competition-level subwoofers.
• 1-Ohm Stable: Capable of handling low-impedance loads with reliable performance and stability.
• High-Efficiency Class D Design: Offers a compact size, reduced heat generation, and maximum current flow.
• Sozlanishi boshqaruv elementlari: Includes gain, subsonic filter, and low-pass filter adjustments for precise sound tuning.
• O'zgaruvchan Bass Boost: Allows for custom enhancement of bass frequencies.
• Og'ir qurilish: Features an aluminum heat sink with integrated over-voltage and thermal protection for durability and safe operation.
• Brushed Aluminium Alloy Enclosure: Provides a robust and efficient heat dissipation solution.

5. O'rnatish va sozlash

To'g'ri o'rnatish optimal ishlash va xavfsizlik uchun juda muhimdir. O'rnatishni malakali mutaxassis amalga oshirish tavsiya etiladi.

5.1 O'rnatish joyi

O'rnatish joyini tanlang:

• Dry and free from moisture.
• Issiqlik tarqalishini ta'minlash uchun yaxshi shamollatilgan.
• Secure, preventing movement during vehicle operation.
• To'g'ridan-to'g'ri quyosh nuri yoki issiqlik manbalaridan uzoqroq tuting.

5.2 Simli ulanishlar

Har qanday ulanishni amalga oshirishdan oldin, avtomobilning salbiy batareya terminalini ajratib oling.

1. Quvvat (B+): Connect a heavy-gauge power cable (e.g., 4 AWG or larger for 2000W RMS) directly from the positive terminal of the vehicle's battery to the amplifier's B+ terminal. Install an appropriate fuse holder (rated for the amplifier's current draw) within 18 inches (45 cm) of the battery.
2. Yer (GND): Connect a heavy-gauge ground cable of the same size as the power cable from the amplifier's GND terminal to a clean, unpainted metal surface of the vehicle chassis. Ensure a solid, low-resistance connection.
3. Masofadan yoqish (REM): Connect a smaller gauge wire (e.g., 18 AWG) from the head unit's remote output to the ampko'targichning REM terminali. Bu sim aylantiradi ampbosh blok bilan ko'targichni yoqish va o'chirish.
4. RCA kirishlari: Connect RCA cables from the head unit's subwoofer or pre-amp ga chiqadi ampko'targichning RCA kirish raz'emlari.
5. Dinamik chiqishlari: Sabvufer(lar)ingizni ulang amplifier's speaker output terminals. Ensure correct polarity (+ to + and - to -) and verify the total impedance of your subwoofer configuration is 1 ohm or higher.

Note: Refer to your subwoofer's specifications for proper wiring configurations (series or parallel) to achieve the desired impedance.

6. Boshqaruv va sozlashlar

The TG-4.8KZ amplifier features several controls to fine-tune its performance:

• GAIN boshqaruvi: Kirish sezgirligini sozlaydi ampchiqish hajmiga mos keladigan ko'taruvchitagBosh qurilmangizning ovoz balandligi. Minimal kuchaytirishdan boshlang va kerakli hajm buzilishsiz erishilguncha uni asta-sekin oshiring.
• Pastki o'tish filtri (LPF): Ushbu boshqaruv chastotasi uchun yuqori chastota chegarasini o'rnatadi amplifier's output. Only frequencies below the set point will be passed to the subwoofer. Typically set between 50Hz and 150Hz for subwoofers.
• SUBSONIK FILTR: This high-pass filter removes extremely low frequencies (below the set point) that are inaudible and can cause damage to subwoofers. Typically set between 10Hz and 30Hz.
• BASS KO'CHIRISH: Provides an adjustable boost to bass frequencies, usually centered around 45Hz. Use sparingly to avoid distortion and potential speaker damage.

7. Foydalanish bo'yicha ko'rsatmalar

Once properly installed and configured, operating the Targa TG-4.8KZ amplifier is straightforward:

1. Yoqilgan: The amplifier will automatically turn on when your head unit is powered on, provided the remote turn-on wire is correctly connected. A power indicator light on the amplifier will illuminate.
2. Audio tinglash: Begin playing audio through your head unit.
3. Ovoz balandligini sozlash: Adjust the volume from your head unit. The amplifier's gain control should be set to match the head unit's output, not used as a volume control.
4. Tinglash: Listen for clear, undistorted bass. If distortion is heard, reduce the gain setting or bass boost.
5. O'chirish: The amplifier will turn off automatically when the head unit is powered off.

8. Xizmat ko'rsatish

Muntazam texnik xizmat ko'rsatish sizning qurilmangizning uzoq umr ko'rishi va ishlashini ta'minlashga yordam beradi ampumrbod:

• Tozalash: Vaqti-vaqti bilan tozalang amplifier's exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure ventilation fins are free from dust and debris.
• Ulanishni tekshirish: Annually, inspect all power, ground, and speaker connections to ensure they remain tight and free from corrosion.
• Ventilyatsiya: Bunga ishonch hosil qiling amplifier's mounting location continues to provide adequate airflow. Do not obstruct the heat sink.

9. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

If you experience issues with your Targa TG-4.8KZ ampko'tarish moslamasi uchun quyidagi muammolarni bartaraf etish qo'llanmasiga qarang:

If problems persist after attempting these solutions, contact Targa customer support or a qualified car audio technician.

10. Texnik shartlar

11. Kafolat va qo'llab-quvvatlash

The Targa TG-4.8KZ Monoblock Ampliifier a bilan keladi 6 oylik kafolat from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by improper installation, misuse, accident, neglect, unauthorized modification, or normal wear and tear.

For warranty claims or technical support, please contact your authorized Targa dealer or the point of purchase. Ensure you retain your proof of purchase for warranty validation.
