Sony RCD-W500C CD pleer / magnitafon uchun qo'llanma

1. Kirish

This manual provides detailed instructions for the operation and maintenance of your Sony RCD-W500C CD Player / Recorder. This unit features a 5-CD/Dual Deck design, offering capabilities for 4x High Speed Dubbing, and playback of CD, CD-R, CD-RW, and MP3 formats. It supports recording onto CD-Recordable and CD-ReWritable Discs, incorporates Super Bit Mapping® Recording, High Speed Finalizing, and CD Text Entry. Additional functionalities include 24-Step Program Play, One-Touch Synchro Start/Record, and control via the supplied Remote Commander® Remote Control. Please note that CD-R/RW Playback compatibility may vary depending on recording conditions.

2. Xavfsizlik ma'lumotlari

For safe operation, always adhere to the following guidelines:

• Haddan tashqari issiqlikning oldini olish uchun jihoz atrofida to'g'ri shamollatilishini ta'minlang.
• Yong'in yoki elektr toki urishi xavfini kamaytirish uchun jihozni yomg'ir yoki namlik ta'siriga qo'ymang.
• Suyuqlik bilan to'ldirilgan narsalarni, masalan, vazalarni jihozga qo'ymang.
• Shkafni ochmang. Xizmat ko'rsatish uchun faqat malakali xodimlarga murojaat qiling.
• Faqat belgilangan quvvat manbaidan foydalaning.

3. Paket tarkibi

Paketdan chiqargandan so'ng, quyida sanab o'tilgan barcha narsalar mavjudligiga ishonch hosil qiling:

• Sony RCD-W500C CD Player / Recorder Unit
• Remote Commander® Remote Control
• Foydalanuvchi uchun qo'llanma (ushbu hujjat)
• 2 ta AA batareya (masofadan boshqarish uchun)

4. Mahsulot xususiyatlari

The Sony RCD-W500C offers a range of advanced features for an enhanced audio experience:

• 5-CD/Dual Deck: Conveniently manage and play multiple compact discs.
• 4x High Speed Dubbing: Quickly duplicate audio from one CD to another.
• Ko'p qirrali ijro: Supports CD, CD-R, CD-RW, and MP3 formats.
• CD-R/RW Recording: Create your own audio CDs.
• SBM - Super Bit Mapping® Recording: Enhances recording quality.
• High Speed Finalizing: Finalize recorded discs efficiently.
• CD Text Entry: Add track and album information to your recordings.
• 24-Step Program Play: Customize your playback order.
• One-Touch Synchro Start/Record: Simplifies recording from external sources.
• Ulanish: Includes Analog RCA, Digital Optical inputs and Analog RCA, Digital Optical outputs.

5. O'rnatish bo'yicha qo'llanma

Follow these steps to set up your CD Player / Recorder:

5.1. Paketni ochish va joylashtirish

• Jihozni va barcha aksessuarlarni qadoqdan ehtiyotkorlik bilan olib tashlang.
• Jihozni to'g'ridan-to'g'ri quyosh nuri, issiqlik manbalari va ortiqcha chang yoki namlikdan uzoqda, barqaror, tekis yuzaga qo'ying.
• Ensure adequate space around the unit for proper ventilation.

5.2. Quvvatga ulanish

• Connect the power cord to the AC IN jack on the rear of the unit.
• Plug the other end of the power cord into a standard AC wall outlet.

5.3. Ovozli ulanishlar

Connect the RCD-W500C to your audio system using the appropriate cables:

• Analog ulanish: Use RCA audio cables to connect the ANALOG OUT jacks (L/R) on the RCD-W500C to the corresponding audio input jacks on your ampko'taruvchi yoki qabul qiluvchi.
• Raqamli optik ulanish: For digital audio output, connect an optical cable from the DIGITAL OPTICAL OUT jack on the RCD-W500C to a digital optical input on your ampko'taruvchi yoki qabul qiluvchi.
• Yozuv kiritish: To record from an external source, connect the source's audio output to the ANALOG IN or DIGITAL OPTICAL IN jacks on the RCD-W500C.

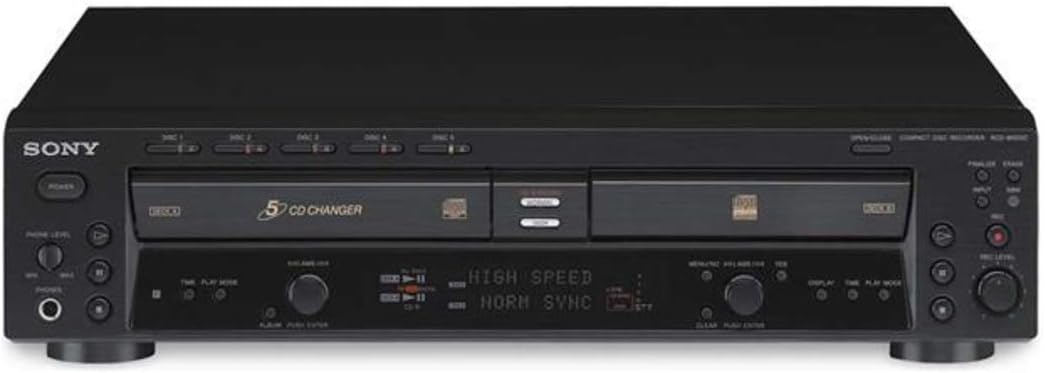

1-rasm: Old view of the Sony RCD-W500C CD Player / Recorder, showing the 5-CD changer tray and dual deck design.

Figure 2: Rear panel of the Sony RCD-W500C, illustrating the various audio input and output connections including Analog RCA and Digital Optical ports.

6. Foydalanish bo'yicha ko'rsatmalar

6.1. Loading and Ejecting Discs

1. Disk tepsisini ochish uchun OPEN/CLOSE tugmasini bosing.
2. Place up to five CDs onto the disc tray, ensuring they are seated correctly with the label side up.
3. Press the OPEN/CLOSE button again to close the tray.
4. To eject a single disc, press the corresponding DISC SELECT button (1-5) and then the OPEN/CLOSE button.

6.2. Asosiy ijro

1. Qurilmani yoqish uchun POWER tugmasini bosing.
2. Select the desired disc using the DISC SELECT buttons (1-5).
3. Press the PLAY button (►) to start playback.
4. Use the SKIP buttons (◀◀ / ►►) to navigate between tracks.
5. Press the PAUSE button (▐▐) to temporarily stop playback, and PLAY to resume.
6. Press the STOP button (■) to end playback.

6.3. Recording CDs (Dubbing)

The RCD-W500C allows you to record audio from one CD to another (dubbing) or from an external source.

1. Insert the source CD into Deck A and a blank recordable CD-R or CD-RW into Deck B.
2. Select the desired recording mode (e.g., 4x High Speed Dubbing, Normal).
3. For CD-to-CD dubbing, press the CD SYNCHRO button, then press PLAY on Deck A. Recording will start automatically.
4. For recording from an external source, select the appropriate input (Analog or Digital Optical), then press RECORD on Deck B and PLAY on your external source.
5. After recording, finalize the disc by pressing the FINALIZE button. This makes the disc playable on other CD players.

6.4. CD Text Entry

You can add text information (album title, track names) to your recorded CDs:

1. During recording or after finalizing, enter CD Text mode (refer to the full user manual for specific button presses).
2. Use the control knob and buttons to input characters for album and track titles.
3. Save the entered text.

7. Xizmat ko'rsatish

To ensure the longevity and optimal performance of your Sony RCD-W500C, follow these maintenance tips:

• Jihozni tozalash: Wipe the exterior with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• Disk bilan ishlash: Always handle CDs by their edges. Keep them free from dust, fingerprints, and scratches. Store discs in their cases when not in use.
• Ob'ektivni tozalash: If playback issues occur due to a dirty lens, use a commercially available CD lens cleaner disc.
• Ventilyatsiya: Ensure that the ventilation openings on the unit are not blocked to prevent internal heat buildup.

8. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

If you encounter issues with your RCD-W500C, refer to the following common problems and solutions:

9. Texnik shartlar

10. Kafolat va qo'llab-quvvatlash

10.1. Kafolat haqida ma'lumot

This Sony CD recorder/player is sold with a one-year replacement or refund warranty. If you are not completely satisfied with the quality of this Sony product, you may return it for a refund of your purchase price.

10.2. Mijozlarni qo'llab-quvvatlash

For further assistance, technical support, or warranty claims, please contact Sony customer service through their official websayt yoki xaridingiz hujjatlari bilan ko'rsatilgan aloqa ma'lumotlari.
