1. Mahsulot tugadiview
The Visteon 556 Radiator is an essential component designed for efficient engine cooling. It is engineered to optimize heat transfer and pressure drop across various configurations, ensuring reliable performance and high thermal efficiency for your vehicle's cooling system.
Key features of the Visteon 556 Radiator include:
- Efficient thermal cycle and pressure cycle durability.
- Robust vibration resistance for long-term reliability.
- Globally standardized tube geometrics for consistent performance.
- Optimized heat transfer and pressure drop for superior cooling.
- High thermal efficiency, contributing to optimal engine temperature.
- Designed for low maintenance requirements.

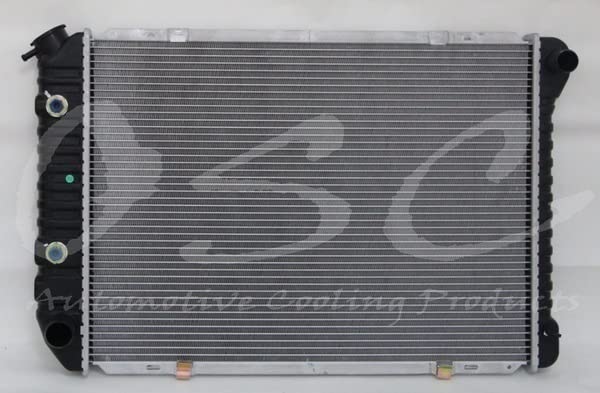

Figure 1: The Visteon 556 Radiator, showcasing its core and end tanks, designed for optimal heat dissipation.
2. Xavfsizlik ma'lumotlari
Always prioritize safety when working with automotive components. Failure to follow these guidelines may result in injury or damage to the vehicle.
- Ensure the engine is completely cool before attempting any work on the cooling system. Hot coolant and engine parts can cause severe burns.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, to protect against splashes and sharp edges.
- Disconnect the vehicle's battery before starting any installation or maintenance to prevent electrical hazards.
- Dispose of old coolant responsibly according to local environmental regulations. Coolant is toxic.
- Agar biron bir qadam haqida ishonchingiz komil bo'lmasa, malakali avtomobil ustasiga murojaat qiling.
3. O‘rnatish (Sozlash)
Installation of the Visteon 556 Radiator typically requires mechanical knowledge and tools. If you are not comfortable performing this procedure, it is recommended to seek professional assistance.
- Tayyorlanishi: Park the vehicle on a level surface and allow the engine to cool completely. Place a drain pan beneath the radiator.
- Sovutgichni to'kib tashlang: Open the radiator drain cock (petcock) or disconnect the lower radiator hose to drain the old coolant into the pan.
- Shlanglar va sensorlarni ajratib oling: Carefully disconnect the upper and lower radiator hoses, overflow hose, and any electrical connectors for sensors (e.g., fan switch) attached to the radiator.
- O'rnatish uskunasini olib tashlang: Unbolt or unclip the radiator from its mounting points. Note the position of any rubber isolators or bushings.
- Eski radiatorni olib tashlash: Carefully lift the old radiator out of the engine bay. Be mindful of any attached components like fan shrouds.
- Yangi radiatorni o'rnatish: Position the new Visteon 556 Radiator into the engine bay, ensuring it seats correctly on its mounting points and isolators.
- Xavfsiz o'rnatish uskunasi: Reattach all bolts, clips, and fan shrouds removed earlier.
- Reconnect Hoses and Sensors: Reconnect the upper and lower radiator hoses, overflow hose, and any electrical connectors. Ensure all clamplar xavfsiz.
- Sovutgichni to'ldirish: Close the radiator drain cock. Slowly fill the radiator with the manufacturer-recommended coolant mixture.
- Havoni chiqarish: Start the engine with the radiator cap off (or reservoir cap off, depending on system design) and allow it to reach operating temperature. As the thermostat opens, air bubbles will escape. Top off coolant as needed. Squeeze radiator hoses to help release trapped air.
- Oqishlarni tekshiring: After the engine cools, recheck coolant levels and inspect all connections for any signs of leaks.
4. Operatsiya
The Visteon 556 Radiator operates passively as part of your vehicle's closed-loop cooling system. Its primary function is to dissipate heat from the engine coolant to the ambient air, maintaining optimal engine operating temperature.
Proper operation relies on:
- Adequate Coolant Level: Ensure the coolant reservoir is filled to the recommended level. Low coolant can lead to overheating.
- Proper Coolant Mixture: Use the correct antifreeze/water mixture as specified by your vehicle manufacturer to ensure proper freezing and boiling point protection.
- Functional Thermostat: A properly working thermostat is crucial for regulating coolant flow through the radiator.
- Operational Cooling Fan(s): Electric or mechanical cooling fans assist in airflow through the radiator, especially at low speeds or when stationary.
- Intact Cooling System: Hoses, clamps, and the radiator cap must be in good condition to maintain system pressure and prevent leaks.
5. Xizmat ko'rsatish
Regular maintenance helps ensure the longevity and efficiency of your Visteon 556 Radiator and the entire cooling system.
- Sovutgich darajasini tekshirish: Periodically check the coolant level in the reservoir when the engine is cold. Top up with the correct coolant mixture if necessary.
- Vizual tekshirish: Regularly inspect the radiator for signs of leaks, corrosion, or damage to the fins. Look for discolored areas or dried coolant residue.
- Clean Radiator Fins: Over time, debris (leaves, insects, dirt) can accumulate on the radiator fins, reducing airflow and cooling efficiency. Carefully clean the fins with a soft brush or low-pressure air/water spray. Avoid bending the fins.
- Shlang va Clamp Tekshirish: Check radiator hoses for cracks, swelling, or softness. Ensure all hose clamps are tight and secure.
- Coolant Flush: Follow your vehicle manufacturer's recommendations for coolant flush intervals. This removes old, degraded coolant and prevents internal corrosion.
- Radiator Cap Check: Inspect the radiator cap for a worn or damaged seal. A faulty cap can lead to coolant loss and overheating.
6. Muammolarni bartaraf qilish; nosozliklarni TUZATISH
This section provides guidance on common issues related to the cooling system. For complex problems, consult a professional technician.
| Muammo | Mumkin sabab | Yechim |
|---|---|---|
| Dvigatelning haddan tashqari qizishi | Low coolant level, clogged radiator fins, faulty thermostat, malfunctioning cooling fan, internal radiator blockage. | Check and top up coolant. Clean radiator fins. Inspect thermostat and cooling fan. Consider a professional cooling system flush or radiator replacement if blockage is suspected. |
| Sovutish suvi oqishi | Damaged radiator, loose hose clamps, cracked hoses, faulty radiator cap, water pump seal failure. | Inspect radiator for visible damage. Tighten hose clamps. Replace damaged hoses or radiator cap. If leaks persist, professional diagnosis is recommended. |
| Sovutish suvi darajasi past (tez-tez) | Slow leak in the system, coolant evaporation (less common with proper mixture), head gasket issue. | Thoroughly inspect the entire cooling system for small leaks. Check for signs of coolant in engine oil or exhaust. Address any identified leaks promptly. |
7. Texnik shartlar
Detailed technical specifications for the Visteon 556 Radiator:
- Ishlab chiqaruvchi: Visteon
- Brend: Visteon
- Mahsulot og'irligi: 13 funt
- Mahsulot o'lchamlari: 32.28 x 21.26 x 5.91 dyuym
- Model raqami: 556
- Ishlab chiqaruvchi qism raqami: 556
- OEM qism raqami: F1ZZ8005A
- ASIN: B000CLITV4
- Birinchi mavjud sana: 10 yil 2007 oktyabr
8. Kafolat va qo'llab-quvvatlash
For specific warranty information regarding your Visteon 556 Radiator, please refer to the official warranty documentation provided by Visteon or the retailer at the time of purchase. Warranty terms and conditions may vary.
For technical support, installation inquiries, or further assistance, please contact Visteon customer service or visit their official website. Always provide your product model number (556) and any relevant purchase details when seeking support.
Note: This manual provides general guidance. Always consult your vehicle's service manual for specific procedures and specifications.
