Kirish
The BenQ SP890 is a high-performance Full HD 1080p projector designed for conference rooms and large venues. It delivers exceptional brightness and resolution, ensuring clear and vibrant presentations. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your BenQ SP890 projector.
Image: The BenQ SP890 projector displaying a large, detailed image of a cathedral interior with stained glass windows, demonstrating its high-resolution projection capabilities suitable for large-scale presentations.
Asosiy xususiyatlar
- Premium Full HD 1080p Resolution: Delivers crisp and detailed images with 1920 x 1080 resolution.
- Brilliant Visual Performance: Features 4000 ANSI lumen brightness and a 50,000:1 contrast ratio for vivid and clear projections.
- Hollywood Quality Video (HQV) Image Quality: Advanced processing enhances both HD and standard definition content to true 1080p quality.
- Vivid Color with BrilliantColor Technology: Boosts mid-tone colors and overall brightness for a more lifelike picture.
- VIDI Lamp Texnologiya: Collaborates with Philips and Texas Instruments to dynamically control lamp brightness for optimal color ratios across different scenes.
Image: A side-by-side comparison illustrating the enhanced color and vibrancy achieved by the projector's advanced color technologies, with the right image showing improved visual quality.
Paket tarkibi
Ochishda barcha narsalarning mavjudligiga ishonch hosil qiling:
- BenQ SP890 Projector
- Quvvat kabeli
- VGA Cable (D-Sub 15pin)
- Batareyalar bilan masofadan boshqarish
- Foydalanuvchi uchun qo'llanma CD
- Tez boshlash uchun qo'llanma
- Kafolat kartasi
Sozlash; o'rnatish
1. Proyektorni joylashtirish
Place the projector on a stable, flat surface or mount it securely to the ceiling. Ensure there is adequate ventilation around the projector to prevent overheating. Position the projector at an appropriate distance from the screen to achieve the desired image size.
2. Qurilmalarni ulash
The BenQ SP890 offers various connectivity options. Refer to the diagram below for port identification.
Image: The rear connection panel of the BenQ SP890 projector, detailing all available input and output ports for various devices, labeled for easy identification.
- A: IR Receiver - For remote control signals.
- B: AC Power Input - Connect the power cord here.
- C: LAN Port - For network control and monitoring.
- D: Security Slot - For attaching a security cable.
- E: HDMI Input - Connect HDMI-enabled devices (e.g., Blu-ray player, laptop).
- F: Video Input - Composite video connection.
- G: S-Video Input - S-Video connection.
- H: USB Port - For service or firmware updates.
- I: RS232 Port - For serial control.
- J: 12V Trigger - For automated screen control.
- K: Component Video Input - For high-quality analog video.
- L: PC Input (VGA) - Connect a computer via VGA cable.
- M: Monitor Out (VGA) - Output signal to an external monitor.
- N: Audio In - Connect audio from external sources.
- O: Audio Out - Output audio to external speakers.
Connect your desired video and audio sources to the corresponding ports. For optimal quality, use the HDMI input for Full HD content.
3. Yoqish
- Connect the power cord to the projector's AC input (B) and then to a power outlet.
- Press the Power button on the projector's control panel or the remote control. The power indicator light will turn on.
- Allow a few moments for the projector lamp to warm up and display the image.
Proyektorni ishlatish
1. Asosiy boshqaruv elementlari
Use the control panel on the projector or the remote control to navigate menus and adjust settings. Common buttons include Power, Menu, Exit, Arrow keys, and Source.
2. Kirish manbasini tanlash
Press the "Source" button on the remote or control panel to cycle through available input sources (HDMI, PC, Video, S-Video, Component). Select the input corresponding to your connected device.
3. Tasvirni sozlash
- Fokus halqasi: Tasvir aniq va tiniq ko'rinmaguncha proyektor linzalaridagi fokus halqasini aylantiring.
- Kattalashtirish halqasi: Adjust the zoom ring to change the image size without moving the projector.
- Asosiy toshni tuzatish: If the image appears trapezoidal, use the keystone correction function (usually found in the OSD menu) to square the image.

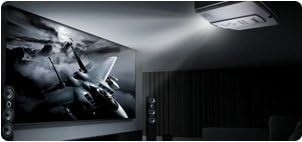

Image: The BenQ SP890 projector, ceiling-mounted, projecting a large, high-definition image of a jet fighter onto a screen in a dark room, illustrating its powerful projection and image quality.
4. Picture Modes
The projector offers various picture modes optimized for different content and environments. Access the "Picture" menu in the On-Screen Display (OSD) to select modes such as Presentation, Cinema, Dynamic, or User-defined settings.
Xizmat
1. Lamp O'zgartirish
Proektor lamp cheklangan umrga ega. Qachon lamp indikator yonadi yoki tasvir xiralashgan bo'lsa, l ni almashtirish vaqti keldiamp. Refer to the full user manual for detailed lamp replacement instructions. Always allow the projector to cool down completely before attempting lamp almashtirish.
2. Havo filtrini tozalash
Regularly clean the air filter to ensure proper ventilation and prevent dust buildup, which can affect performance and lamp life. The filter location is typically on the side or bottom of the projector. Use a soft brush or vacuum cleaner to remove dust.
3. Cleaning the Lens and Casing
Use a soft, lint-free cloth and a mild lens cleaning solution to gently clean the projector lens. For the casing, yumshoq, quruq matodan foydalaning. Abraziv tozalagichlar yoki erituvchilardan saqlaning.
Muammolarni bartaraf qilish; nosozliklarni TUZATISH
| Muammo | Mumkin sabab | Yechim |
|---|---|---|
| Hech qanday rasm ko'rsatilmagan |
|
|
| Tasvir loyqa |
|
|
| Rasm trapezoidaldir |
|
|
| Ovoz yo'q |
|
|
Texnik xususiyatlari
| Xususiyat | Tafsilot |
|---|---|
| Model raqami | SP890 |
| Displey ravshanligi | 1920 x 1080 (Full HD) |
| Yorqinlik | 4000 ANSI Lumens (from product description) |
| Kontrast nisbati | 50,000:1 (from product description) |
| Ulanish texnologiyasi | HDMI, VGA, Component, S-Video, Composite, LAN, RS232, USB |
| Mahsulot o'lchamlari | 16.9 x 13.6 x 6.1 dyuym |
| Element og'irligi | 15.9 funt |
| Maxsus xususiyat | Portable (as listed in specifications) |
Kafolat va qo'llab-quvvatlash
For warranty information, please refer to the warranty card included in your product package. For technical support, service, or further inquiries, please visit the official BenQ websaytiga tashrif buyuring yoki ularning mijozlarga xizmat ko'rsatish bo'limiga murojaat qiling. Yordam so'raganingizda xarid chekingiz va mahsulot seriya raqamingizni yoningizda saqlang.
Official BenQ Websayt: www.benq.com
