1. Mahsulot tugadiview
The GM Lighting LumenTask X8-120-WH is an 8-inch, 120V Xenon undercabinet fixture designed to provide high-intensity, low-maintenance lighting. It features a sleek white finish and a tempered frosted prismatic glass lens for optimal light distribution. The fixture includes an anodized aluminum reflector for maximum illumination and a Hi-Low-Off switch for adjustable lighting levels. Its unique 'Open Wide' hinged system allows for hands-free re-lamping and maintenance.
Asosiy xususiyatlar:
- 8 inches long x 4.75 inches wide x 1.375 inches high.
- Includes one (1) 35W G9 base 120V Xenon lamp.
- White finish with tempered frosted, prismatic glass lens.
- Hi-Low-Off switch for full or 50% lighting level.
- UL rated for dry, indoor locations.
- Anodized aluminum reflector for maximum light distribution.
- 'Open Wide' hinged system for easy access and maintenance.
2. Xavfsizlik ma'lumotlari
Please read and understand all instructions before installing or operating this fixture. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- OGOHLANTIRISH: Elektr toki urishi xavfi. O'rnatish yoki xizmat ko'rsatishdan oldin sug'urta yoki avtomatik o'chirgichdagi elektrni uzing.
- Ushbu armatura uchun mo'ljallangan faqat bino ichida foydalanish in dry locations. Do not expose to water or moisture.
- MUHIM: This fixture requires hardwiring directly to available wiring. An optional CP-6 (72-inch cord and plug) is available for separate purchase if hardwiring is not feasible.
- Shamollatish: The fixture must be installed a minimum of 2 inches from the back of the cabinet to allow for proper ventilation and prevent overheating.
- Ensure all electrical connections are made in accordance with local codes and ordinances. If you are unsure about wiring, consult a qualified electrician.
- Do not operate the fixture with a damaged cord or if the housing is compromised.
3. Paket tarkibi
O'rnatishni boshlashdan oldin barcha komponentlar mavjudligini tekshiring.
- 1 x LumenTask X8-120-WH Undercabinet Fixture
- 1 x 35W G9 Base 120V Xenon Lamp
- Yo'riqnoma varaqasi
4. O'rnatish va o'rnatish
Before installation, ensure power is disconnected at the circuit breaker. This fixture is designed for hardwired installation.
4.1 Fixture Dimensions and Features

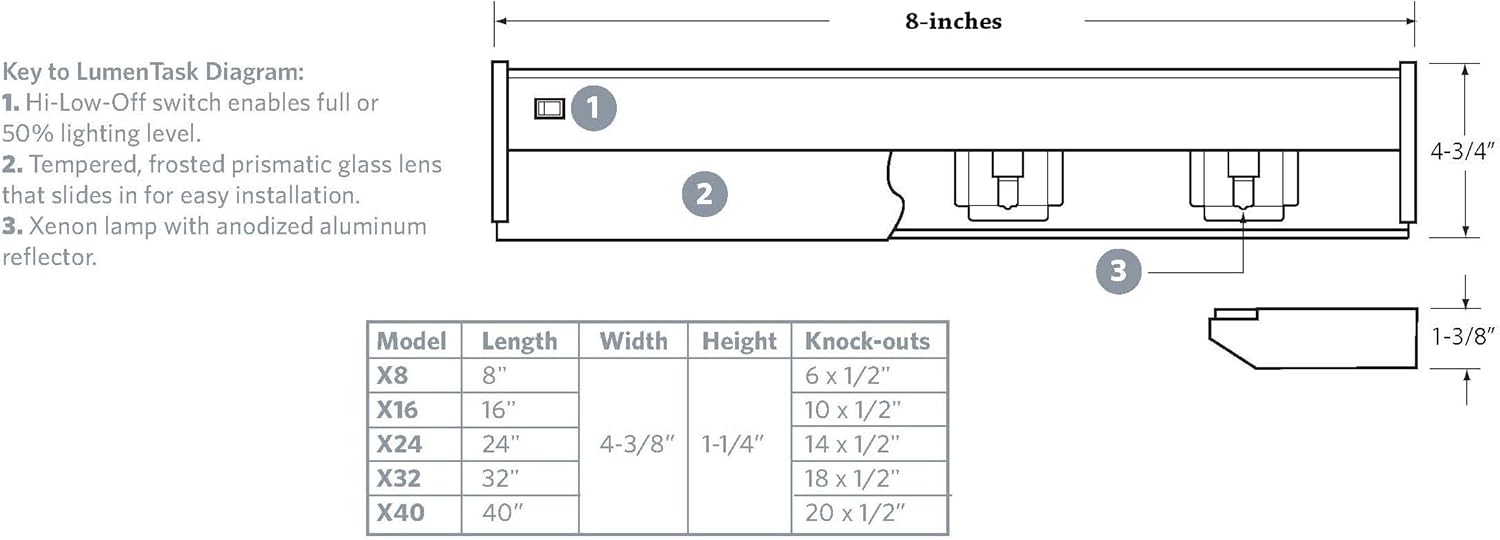

1-rasm: This diagram illustrates the overall dimensions of the 8-inch LumenTask fixture, including its length (8 inches), width (4-3/4 inches), and height (1-3/8 inches). It also highlights key features such as the Hi-Low-Off switch, the frosted prismatic glass lens, and the Xenon lamp with an anodized aluminum reflector. A table provides dimensions for other LumenTask models (X8, X16, X24, X32, X40).
4.2 Detailed Component View

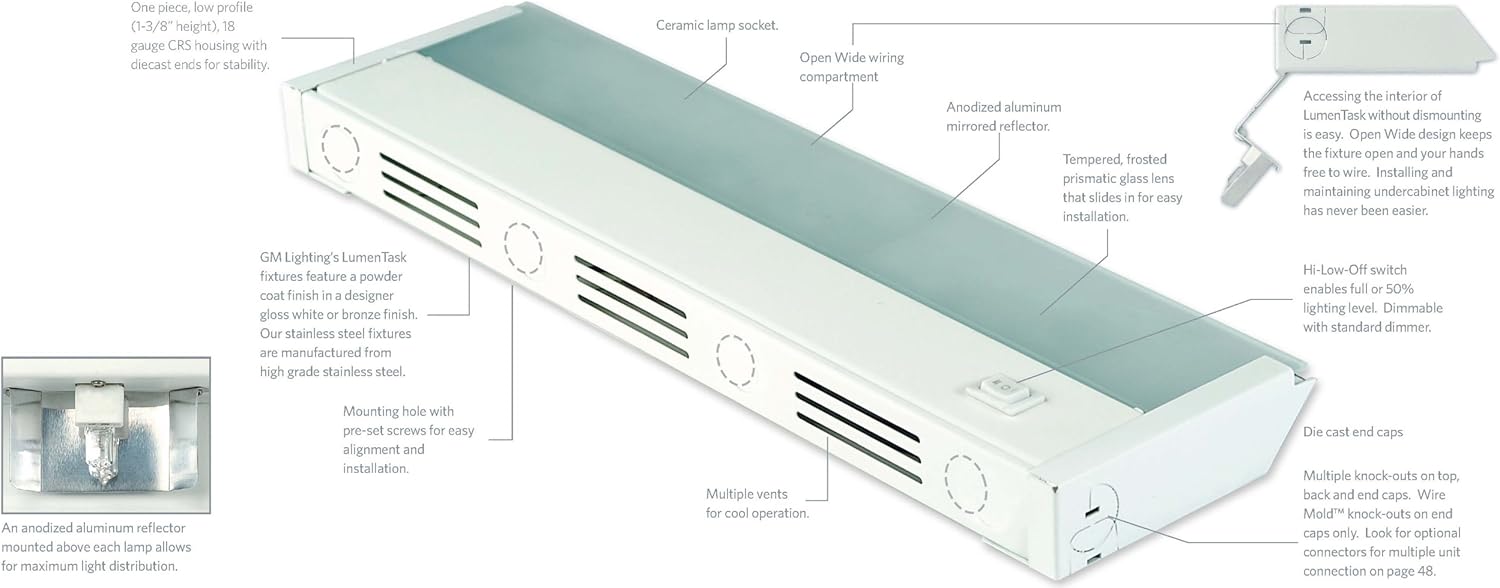

2-rasm: Bu batafsil view shows the internal and external components of the LumenTask fixture. It points out the ceramic lamp socket, 'Open Wide' wiring compartment, anodized aluminum mirrored reflector, tempered frosted prismatic glass lens, Hi-Low-Off switch, die-cast end caps, multiple vents for cooling, and mounting holes with pre-set screws. It also describes the one-piece, low-profile CRS housing with die-cast ends for stability.
4.3 Accessing the Interior for Wiring
The LumenTask fixture features an 'Open Wide' design for easy access to the wiring compartment without dismounting the fixture. This allows for hands-free wiring and maintenance.
- To open, simply depress the wire compartment holding tab.
- The wiring compartment cover will swing down and out, staying in position.
- Make necessary electrical connections.
- Once wiring is complete, snap the cover back into its closed position.
- Slide the lens back into place.

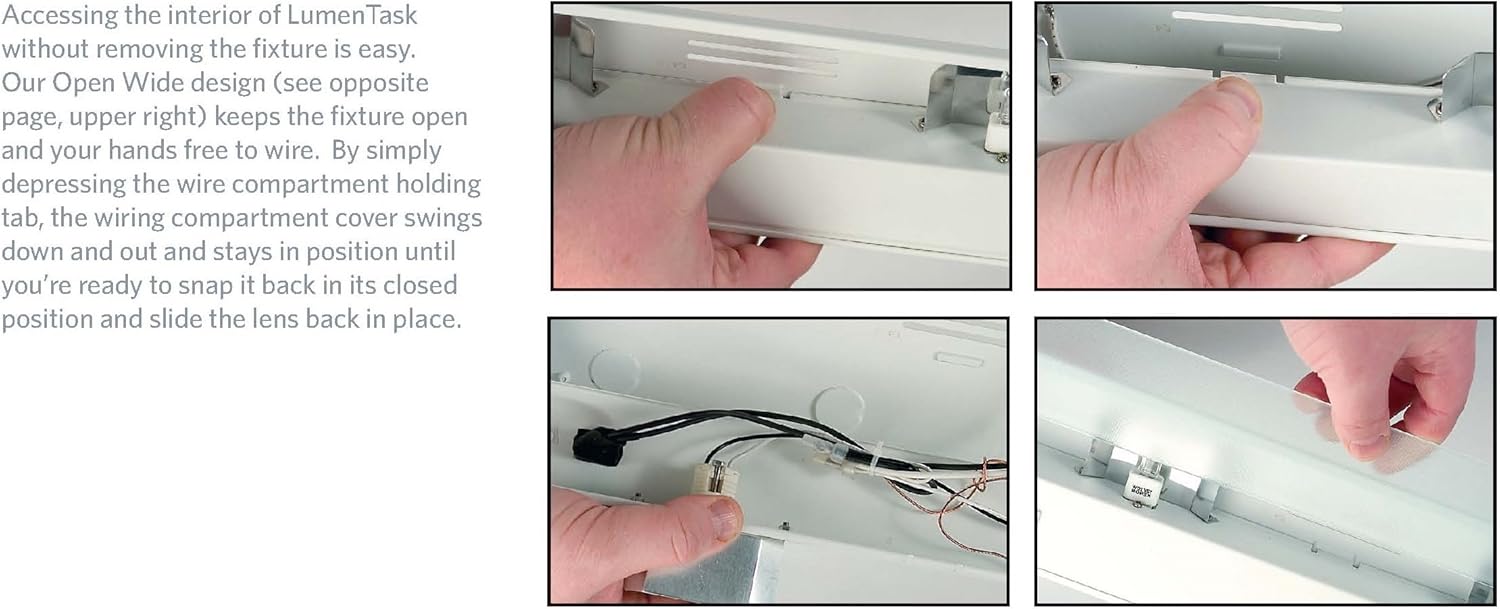

3-rasm: This series of images demonstrates the process of accessing the interior of the LumenTask fixture. It shows how to depress the tab to open the wiring compartment, revealing the internal wiring, and how to slide the lens back into position after maintenance or wiring.
4.4 O'rnatish
- Identify the mounting holes with pre-set screws on the fixture.
- Position the fixture under the cabinet, ensuring the 2-inch ventilation clearance from the back of the cabinet.
- Secure the fixture using appropriate screws (not included) through the mounting holes.
- Wire mold knock-outs on the end caps are provided for through-wiring multiple units using Lumen Task EZ Connectors (sold separately).
5. Foydalanish bo'yicha ko'rsatmalar
Once installed and powered, the LumenTask fixture is ready for operation.
- Quvvatni yoqish/oʻchirish: Use the integrated Hi-Low-Off rocker switch located on the fixture to turn the light on or off.
- Yorqinlikni sozlash: The Hi-Low-Off switch also allows you to select between full brightness ('Hi') and 50% brightness ('Low').
- Karartma: The fixture can be dimmed remotely by a standard incandescent dimmer (sold separately) if connected to a dimmable circuit.
6. Xizmat ko'rsatish
Regular maintenance ensures optimal performance and longevity of your LumenTask fixture.
6.1 lamp O'zgartirish
The Xenon lamp has a rated average life of 5,000 hours. When replacement is needed:
- Quvvatni uzish: Always turn off power to the fixture at the circuit breaker before replacing the lamp.
- Ichki kirish: Use the 'Open Wide' hinged system to access the lamp compartment (refer to Section 4.3).
- Eski L.ni olib tashlangamp: Carefully remove the old 35W G9 base Xenon lamp from its ceramic socket. Allow the lamp to cool if it has been recently in use.
- Yangi L o'rnatingamp: Insert a new 35W G9 base 120V Xenon lamp into the socket. Avoid touching the new lamp with bare hands; use a cloth or glove to prevent oil residue.
- Yopiq o'yin: Close the wiring compartment cover and slide the lens back into place.
- Quvvatni tiklash: O'chirish to'xtatuvchisida quvvatni tiklang.
6.2 Tozalash
- Ensure the fixture is off and cool before cleaning.
- Tashqi yuzalarni yumshoq, quruq mato bilan artib oling.
- Qattiq belgilar uchun biroz d dan foydalaningamp yumshoq sovun bilan mato bilan arting, keyin quriting.
- Do not use abrasive cleaners or solvents, as these can damage the finish or lens.
7. Muammolarni bartaraf qilish; nosozliklarni TUZATISH
If you encounter issues with your LumenTask fixture, refer to the following common problems and solutions:
| Muammo | Mumkin sabab | Yechim |
|---|---|---|
| Chiroq yoqilmaydi. | Armatura uchun kuch yo'q. | O'chirish to'xtatuvchisi va devor kalitini tekshiring. Barcha simli ulanishlar xavfsiz ekanligiga ishonch hosil qiling. |
| Yorug'lik miltillaydi yoki xira. | Bo'sh lamp or faulty lamp. | l ga ishonch hosil qilingamp is securely seated. Replace the lamp if it is old or appears faulty. |
| Fixture gets too hot. | Shamollatish etarli emas. | Verify that there is at least 2 inches of clearance from the back of the cabinet for proper airflow. |
| Dimming function not working. | Incompatible dimmer or incorrect wiring. | Ensure an incandescent dimmer is used. Check dimmer wiring. |
If troubleshooting steps do not resolve the issue, contact GM Lighting customer support.
8. Texnik shartlar
| Spetsifikatsiya | Tafsilot |
|---|---|
| Model raqami | X8-120-WH |
| Olchamlari (U x G x Y) | 8 x 4.75 x 1.38 dyuym |
| Element og'irligi | 1.15 funt |
| jildtage | 120 volt |
| Wattage | 35 vatt |
| Nur manbai turi | Xenon (G9 base) |
| Yorug'lik manbalari soni | 1 |
| Rang harorati | 2900 Kelvin |
| Tugatish turi | Oq |
| Soya materiali | Alyuminiy, shisha |
| Kommutator turi | Hi-Low-Off Rocker Switch |
| Nazorat usuli | Remote (via dimmer) |
| Ichki/tashqi makonda foydalanish | Faqat ichki makonda foydalanish |
| O'rnatish turi | Kabinet osti |
| Maxsus xususiyat | Requires 2-inch minimum clearance for ventilation. Hardwired installation. |
9. Kafolat va qo'llab-quvvatlash
GM Lighting is committed to quality and customer satisfaction. While specific warranty details are not provided in this document, GM Lighting products are designed with durability in mind.
For technical assistance, layout guidance, or installation support, please contact GM Lighting's technical staff. Refer to the product packaging or GM Lighting's official webjoriy aloqa ma'lumotlari uchun sayt.
