Crucial BX200 960GB SATA III 2.5-inch Internal Solid State Drive User Manual

1. Kirish

This user manual provides comprehensive instructions for the installation, operation, and maintenance of your Crucial BX200 960GB SATA III 2.5-inch Internal Solid State Drive (SSD). Please read this manual thoroughly before proceeding with installation or use to ensure optimal performance and longevity of your device. This SSD is designed to enhance your computer's performance by providing faster boot times, quicker application loading, and improved overall system responsiveness.

2. Mahsulot tugadiview

The Crucial BX200 is a high-capacity 2.5-inch internal solid state drive utilizing the SATA III interface. It is engineered to replace traditional hard disk drives (HDDs) in desktop and laptop computers, offering significant improvements in speed, durability, and efficiency. With no moving parts, SSDs are more resistant to shock and vibration, consume less power, and generate less heat compared to HDDs.

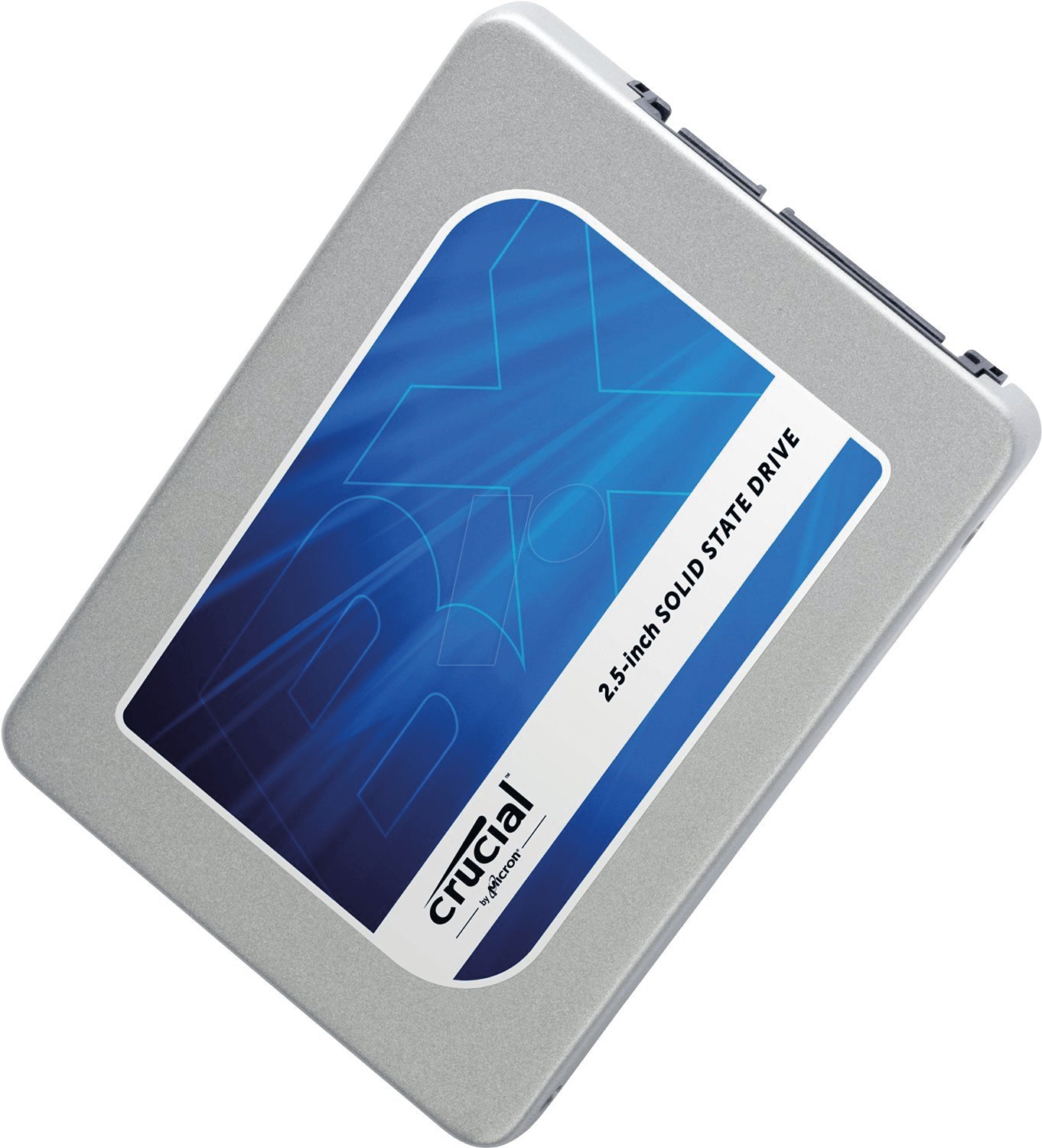

Yuqori yuk view of the Crucial BX200 960GB SATA 2.5-inch Solid State Drive, showing its silver casing and the blue label with 'Crucial by Micron' logo and '2.5-inch SOLID STATE DRIVE' text. The SATA data and power connectors are visible on the right side.

3. Paket tarkibi

Paketingizda quyidagi elementlar mavjudligiga ishonch hosil qiling:

• Crucial BX200 960GB SATA III 2.5-inch Internal Solid State Drive
• Tez boshlash qo'llanmasi (agar mavjud bo'lsa)

Note: Additional accessories such as SATA data cables, power cables, or mounting brackets are typically sold separately and may be required for installation.

4. O'rnatish va o'rnatish

4.1 Xavfsizlik choralari

• Always power off your computer and disconnect the power cable before opening the case.
• Komponentlarga ishlov berishdan oldin yerga ulangan metall buyumga (masalan, kompyuter korpusiga) tegib, statik elektrni chiqarib oling.
• Handle the SSD by its edges to avoid touching the connectors or circuit board.

4.2 Kerakli vositalar

• Fillips boshli tornavida
• SATA data cable (for desktop installations)
• SATA power cable (usually from your power supply)
• 2.5-inch to 3.5-inch drive bay adapter (for desktop installations if no 2.5-inch bay is available)

4.3 Data Migration (Optional)

If you are replacing an existing drive and wish to transfer your operating system, applications, and data, you will need compatible cloning software. Many SSD manufacturers provide or recommend specific software for this purpose. An external USB-to-SATA adapter or enclosure may be required to connect the new SSD to your computer during the cloning process.

4.4 Ish stolini o'rnatish

1. Power down your computer and unplug the power cable.
2. Kompyuter korpusini oching.
3. Locate an available 2.5-inch drive bay. If only 3.5-inch bays are available, use a 2.5-inch to 3.5-inch adapter.
4. Secure the SSD into the drive bay or adapter using screws.
5. SATA ma'lumot kabelining bir uchini SSD ga, ikkinchi uchini esa anakartingizdagi mavjud SATA portiga ulang.
6. Connect a SATA power cable from your power supply to the SSD.
7. Kompyuter korpusini yoping va quvvat simini qayta ulang.
8. Power on your computer. You may need to access your BIOS/UEFI settings to ensure the SSD is recognized and set as the boot drive if installing a new operating system.

4.5 Laptop Installation

1. Power down your laptop and unplug the power adapter. Remove the battery if it is external.
2. Locate the hard drive bay, typically on the bottom or side of the laptop. Consult your laptop's manual for specific instructions on how to access it.
3. Remove the screws securing the hard drive bay cover and carefully open it.
4. Gently slide out the existing hard drive. It may be secured by a bracket or screws.
5. If the old drive has a mounting bracket, remove it and attach it to the new Crucial BX200 SSD.
6. Slide the Crucial BX200 SSD into the drive bay, ensuring it connects firmly to the SATA connector.
7. SSD ni avvalroq olib tashlangan barcha vintlar yoki qavslar bilan mahkamlang.
8. Replace the hard drive bay cover and secure it with screws.
9. Reinsert the battery (if removed) and reconnect the power adapter.
10. Noutbukni yoqing.

5. SSD bilan ishlash

Once installed, your Crucial BX200 SSD will function as a standard storage device. For optimal performance and longevity, consider the following:

• TRIM-ni qo'llab-quvvatlash: Ensure your operating system (Windows 7 or later, macOS, modern Linux distributions) has TRIM enabled. TRIM helps the SSD manage data more efficiently, maintaining performance over time.
• Defragmentatsiyadan saqlaning: Unlike HDDs, SSDs do not benefit from defragmentation. Defragmenting an SSD can reduce its lifespan without improving performance.
• Leave Some Free Space: It is recommended to leave at least 10-15% of the SSD's capacity free to allow for optimal wear leveling and performance.

6. Xizmat ko'rsatish

Regular maintenance helps ensure the continued reliability and performance of your SSD:

• Dasturiy ta'minotni yangilash: Periodically check the Crucial website for firmware updates for your BX200 SSD. Firmware updates can improve performance, stability, and compatibility.
• Salomatlik monitoringi: Use S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) tools to monitor the health and status of your SSD. Many operating systems and third-party utilities offer this functionality.
• Ma'lumotlarni zaxiralash: Muhim ma'lumotlarning zaxira nusxasini muntazam ravishda boshqa saqlash qurilmasiga saqlang. SSD-lar ishonchli bo'lsa-da, hech bir saqlash qurilmasi ishlamay qolishdan himoyalanmagan.

7. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

If you encounter issues with your Crucial BX200 SSD, consider the following troubleshooting steps:

• SSD aniqlanmadi:
  • Barcha SATA ma'lumotlari va quvvat kabellari xavfsiz ulanganligiga ishonch hosil qiling.
  • Check your computer's BIOS/UEFI settings to confirm the SATA port is enabled and the SSD is recognized.
  • Try connecting the SSD to a different SATA port or with different cables.
• Sekin ishlash:
  • Verify that TRIM is enabled in your operating system.
  • Ensure your SATA controller is operating in AHCI mode in your BIOS/UEFI settings.
  • Check for available firmware updates for the SSD.
  • Ensure you have sufficient free space on the drive.
• Operating System Issues After Installation:
  • If you cloned your previous drive, ensure the cloning process was successful and the new SSD is set as the primary boot device.
  • If performing a clean installation, ensure your operating system installation media is not corrupted.

For further assistance, refer to the Crucial support websayti yoki texnik yordamiga murojaat qiling.

8. Texnik shartlar

The following table outlines the key technical specifications for the Crucial BX200 960GB SSD:

9. Kafolat va qo'llab-quvvatlash

Crucial products are backed by a limited warranty. For detailed warranty information, terms, and conditions, please refer to the official Crucial website. If you require technical assistance, have questions about your product, or need to initiate a warranty claim, please contact Crucial customer support through their official channels.

Crucial Support Websayt: www.crucial.com/support
