1. Kirish
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new CYBERPOWERPC Luxe Gaming PC. Please read this guide thoroughly before using your system to ensure optimal performance and longevity.
The CYBERPOWERPC Luxe Gaming PC is a high-performance desktop computer designed for gaming and demanding applications. It features an Intel Core i7-12700KF processor, Nvidia GeForce RTX 4060 Ti graphics, 32GB DDR5 RAM, and a 1TB NVMe SSD, all housed in a CyberpowerPC Prism Mid Tower case with advanced cooling.
2. Tizimni sozlash
2.1 Qutidan chiqarish
Carefully remove the PC from its packaging. Retain all packaging materials for future transport or warranty claims. Ensure all accessories, such as power cables, documentation, and any included peripherals, are present.
2.2 Periferik qurilmalarni ulash
Yoqishdan oldin asosiy tashqi qurilmalaringizni ulang:
- Monitor: Connect your monitor to the graphics card's DisplayPort or HDMI output. Ensure the cable is securely fastened.
- Klaviatura va sichqoncha: Connect your keyboard and mouse to the available USB ports on the rear or top of the PC.
- Audio: Connect speakers or headphones to the audio output jacks on the rear or front panel.
- Tarmoq: For a wired connection, connect an Ethernet cable to the RJ45 port. For wireless, ensure the Wi-Fi antenna (if included) is attached.
2.2.1-rasm: Old view of the CYBERPOWERPC Luxe Gaming PC. This image displays the tempered glass side panel, internal components with RGB lighting, and the overall design of the PC tower.
Image 2.2.2: Top panel of the CYBERPOWERPC Luxe Gaming PC. This image highlights the power button, reset button, two USB 3.0 ports, and audio input/output jacks located on the top of the PC case for easy access.
2.3 Quvvatga ulanish
Connect the provided power cable to the power supply unit (PSU) input on the rear of the PC, then plug the other end into a grounded electrical outlet.
3. Foydalanish bo'yicha ko'rsatmalar
3.1 Quvvatni yoqish/o‘chirish
- Yoqish uchun: Press the power button located on the top panel of the PC.
- O'chirish uchun: From the Windows 11 desktop, click the Start button, then select Power > Shut down. Avoid direct power-off unless necessary to prevent data loss.
3.2 Dastlabki yuklash va Windows 11 ni sozlash
Upon first power-on, the system will guide you through the Windows 11 Home setup process. Follow the on-screen instructions to configure your region, language, network, and user account.
3.3 Tarmoqqa ulanish
- Simli (Ethernet): Once the Ethernet cable is connected, Windows 11 should automatically detect and connect to the network.
- Simsiz (Wi-Fi): After Windows 11 setup, click the Wi-Fi icon in the taskbar, select your network, and enter the password. The system supports 1200Mbps 802.11ac Wi-Fi.
4. Asosiy komponentlar va xususiyatlar
Your CYBERPOWERPC Luxe Gaming PC is equipped with the following core components:

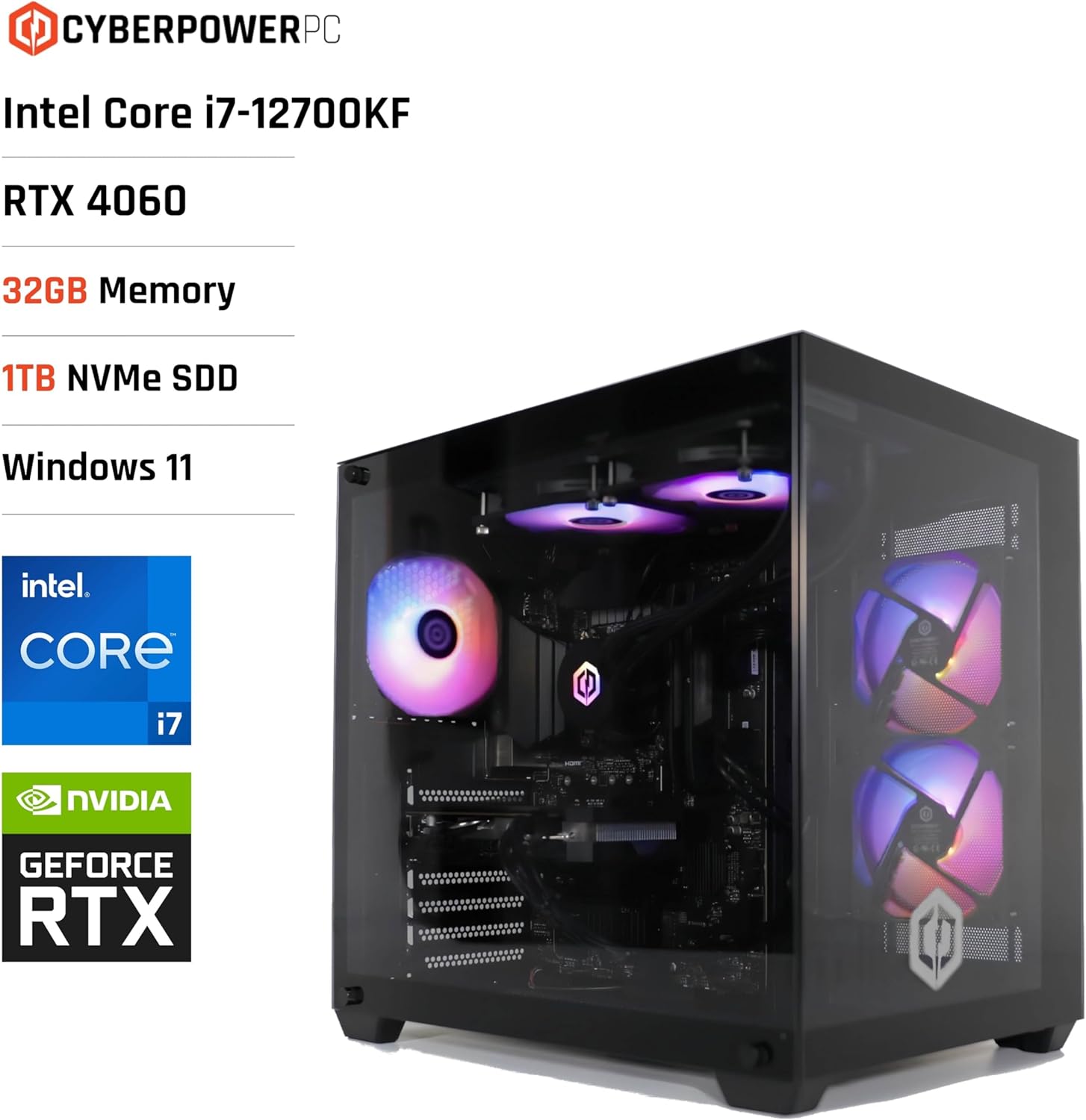

Image 4.1: CYBERPOWERPC Luxe Gaming PC with specifications. This image visually presents the PC alongside text overlays indicating its Intel Core i7-12700KF processor, RTX 4060 graphics, 32GB Memory, 1TB NVMe SSD, and Windows 11 operating system.
- Protsessor: Intel Core i7-12700KF (12 cores, 20 threads, up to 5.00GHz boost, 25MB cache).
- Grafik karta: Nvidia GeForce RTX 4060 Ti with 8GB GDDR6X memory. Supports DisplayPort v1.4a and HDMI 2.1.
- RAM: 32GB 5200MHz DDR5 RAM.
- Saqlash: 1TB M.2 NVMe Solid State Drive for fast boot times and application loading.
- Anakart: Intel Z790 chipset motherboard.
- Quvvatlantirish manbai: 650W 80+ certified gaming power supply.
- Sovutish: 240mm all-in-one CPU water cooler and 6x RGB LED fans for efficient thermal management.
- Operatsion tizim: Windows 11 Home (64-bit) pre-installed.
- Ulanish:
- 4x USB 3.1 portlari
- 2x USB 2.0 portlari
- 1x PS/2 KB or mouse port
- 1x RJ45 Ethernet LAN (10/100/1000)
- 1200Mbps 802.11ac Wi-Fi / WLAN
- 7.1-kanalli yuqori aniqlikdagi audio
4.2-rasm: orqa view of the CYBERPOWERPC Luxe Gaming PC. This image details the various input/output ports available on the back panel, including USB ports, Ethernet, audio jacks, and video outputs from the graphics card.
Image 4.3: Nvidia GeForce RTX logo. This image represents the powerful graphics processing unit integrated into the system.
5. Xizmat ko'rsatish
Doimiy texnik xizmat ko'rsatish kompyuteringizning uzoq umr ko'rishi va ishlashini ta'minlashga yordam beradi.
- Changni tozalash: Periodically clean dust from the case fans, CPU cooler, and graphics card heatsink using compressed air. Ensure the PC is powered off and unplugged before cleaning.
- Dasturiy ta'minot yangilanishlari: Keep your Windows operating system, drivers (especially graphics drivers), and applications updated to the latest versions for security and performance improvements.
- Ventilyatsiya: Ensure the PC is placed in a well-ventilated area, free from obstructions that could block airflow to the intake and exhaust vents.
- Kabelni boshqarish: Organize internal and external cables to improve airflow and prevent accidental disconnections.
6. Muammolarni bartaraf qilish; nosozliklarni TUZATISH
Ushbu bo'lim siz duch kelishi mumkin bo'lgan umumiy muammolarni ko'rib chiqadi.
6.1 Quvvat yo'q
- Check if the power cable is securely connected to both the PC and the wall outlet.
- Verify the power switch on the PSU (located at the rear of the PC) is in the 'ON' position.
- Chidamliligiga ishonch hosil qilish uchun rozetkani boshqa qurilma bilan sinab ko'ring.
6.2 Monitorda displey yo'q
- Ensure the monitor is powered on and the video cable (HDMI/DisplayPort) is securely connected to the graphics card outputs, not the motherboard's integrated video ports.
- Agar mavjud bo'lsa, boshqa video kabel yoki monitorni sinab ko'ring.
- Confirm the correct input source is selected on your monitor.
6.3 Tarmoqqa ulanish muammolari
- Simli ulanishlar uchun Ethernet kabeli va router holatini tekshiring.
- For Wi-Fi, ensure the Wi-Fi adapter is enabled in Windows settings and you are connected to the correct network with the correct password.
- Restart your router/modem and the PC.
6.4 Tizimning ishlashi bilan bog'liq muammolar
- Barcha drayverlarning, ayniqsa grafik drayverlarning yangilanganligiga ishonch hosil qiling.
- Vazifa menejeri (Ctrl+Shift+Esc) yordamida ortiqcha resurslarni iste'mol qiladigan fon ilovalarini tekshiring.
- Verify that the system is not overheating. Monitor CPU and GPU temperatures using appropriate software.
7. Texnik spetsifikatsiyalar
| Komponent | Spetsifikatsiya |
|---|---|
| Brend | CyberpowerPC |
| Operatsion tizim | Windows 11 Home (64-bit) |
| CPU modeli | Intel Core i7-12700KF |
| CPU tezligi | 3.6 gigagertsli (asosiy), 5.0 gigagertsgacha (kuchaytirgich) |
| CPU Cores/Threads | 12 Cores (8 Performance, 4 Efficient) / 20 Threads |
| Kesh hajmi | 25 MB |
| Grafik karta | Nvidia GeForce RTX 4060 Ti 8GB GDDR6X |
| Ram | 32 GB 5200 MHz DDR5 |
| Saqlash | 1TB M.2 NVMe SSD |
| Motherboard Chipset | Intel Z790 |
| Quvvatlantirish manbai | 650W 80+ Gaming PSU |
| Sovutish | 240mm All-in-One CPU Water Cooler, 6x RGB LED Fans |
| Wi-fi | 1200Mbps 802.11ac WLAN |
| Ethernet | 10/100/1000 Gigabit LAN |
| Audio | 7.1-kanalli yuqori aniqlikdagi audio |
| USB portlari | 4x USB 3.1, 2x USB 2.0 |
| Ish turi | CyberpowerPC Prism Mid Tower |
| Maxsus foydalanish | O'yinlar |
8. Kafolat va qo'llab-quvvatlash
Your CYBERPOWERPC Luxe Gaming PC comes with the following warranty and support:
- Komponent kafolati: 2 years for components.
- Manufacturing Warranty: 3 years for manufacturing defects.
- Texnik yordam: Hayot davomida texnik qo'llab -quvvatlash.
- Dasturiy ta'minot: Includes 1 Year Norton 360 VPN & Security for Gamers.
For technical assistance or warranty claims, please contact CyberpowerPC customer support through their official websayt yoki mahsulot hujjatlarida ko'rsatilgan aloqa ma'lumotlari.
