Robinair 34888HD Og'ir yuk ko'taruvchi R-134a sovutgichini qayta tiklash, qayta ishlash va qayta zaryadlash mashinasi bo'yicha qo'llanma

1. Kirish

The Robinair 34888HD is a heavy-duty machine designed for efficient recovery, recycling, evacuation, leak-testing, and recharging of R-134a refrigerant. It achieves 98.5% efficiency in both small and large mobile air conditioning systems, including those found in oversize vehicles like buses. This fully automatic unit streamlines A/C service operations by handling refrigerant and oil management without constant monitoring.

2. Asosiy xususiyatlar

• Extra Capacity & Automatic Features: Recovers, recycles, evacuates, leak-tests, and recharges R-134a with 98.5% efficiency.
• Large Vehicle Compatible: Features a large capacity, removable tank, and a liquid pump specifically designed for larger A/C systems in vehicles such as buses.
• Nitrogen Port: Equipped with a nitrogen port for technicians to use nitrogen for drying and leak testing vehicle A/C systems.
• Removable External Tank: Allows for easy tank switching during multiple recoveries on large mobile A/C systems.
• To'liq avtomatik ishlash: Capable of recovering, evacuating, leak testing, charging, and oil drain/inject without constant technician intervention.
• Printer Compatible: Supports an optional printer (not included) for saving, storing, and printing vehicle service data for customer records.
• Programmable Vacuum Function: Defaults to 15 minutes, programmable up to 99 minutes, with remaining time displayed.
• Refrigerant Management System: Displays refrigerant use and monitors filter life, providing prompts when 1/3 of filter life remains.

Figure 1: Detailed diagram highlighting the key features of the Robinair 34888HD machine, including the 4.3" full-color multilingual display, refrigerant management system, nitrogen port, spin-on filter-drier, fully-automatic function, programmable vacuum, automatic oil drain/air purge, and large capacity removable tank.

3. Xavfsizlik bo'yicha ko'rsatmalar

Always prioritize safety when operating the Robinair 34888HD machine. Adhere to the following guidelines:

• Shaxsiy himoya vositalari: Always wear safety glasses and gloves during any refrigerant recovery or charging process to protect against chemical exposure and frostbite.
• Haddan tashqari to'ldirishni oldini olish: Always use a scale to prevent overfilling of the recovery cylinder. Overfilling can lead to dangerously high pressures and severe equipment damage. Do NOT fill the recovery cylinder more than 80% of its capacity.
• High Pressure Safety: The machine is equipped with a high-pressure safety shut-off switch that will automatically shut down the unit if pressure rises above 550 PSI, preventing damage and ensuring user safety.
• To'g'ri shamollatish: Operate the machine in a well-ventilated area to prevent the accumulation of refrigerant vapors.

4. Operatsiya tugadiview

The Robinair 34888HD offers fully automatic operation, minimizing the need for constant technician intervention. The machine is capable of performing the following functions:

• Sovutgichni qayta tiklash: Extracts R-134a refrigerant from the A/C system.
• Refrigerant Recycling: Processes recovered refrigerant to remove contaminants, making it suitable for reuse.
• System Evacuation: Removes air and moisture from the A/C system to ensure proper operation.
• Oqish testi: Performs automated leak tests to identify system integrity issues.
• Refrigerant Recharging: Accurately charges the A/C system with the specified amount of R-134a.
• Oil Drain/Inject: Automatically drains used A/C lubricant and injects new lubricant back into the system.
• Nitrogen Port: Allows for the use of nitrogen to dry and leak test the A/C system.
• Programmable Vacuum: The vacuum function defaults to 15 minutes but can be programmed up to 99 minutes, with the display showing the time remaining.
• Refrigerant Management: The system displays refrigerant usage and monitors the remaining filter life, prompting when filter replacement is nearing.

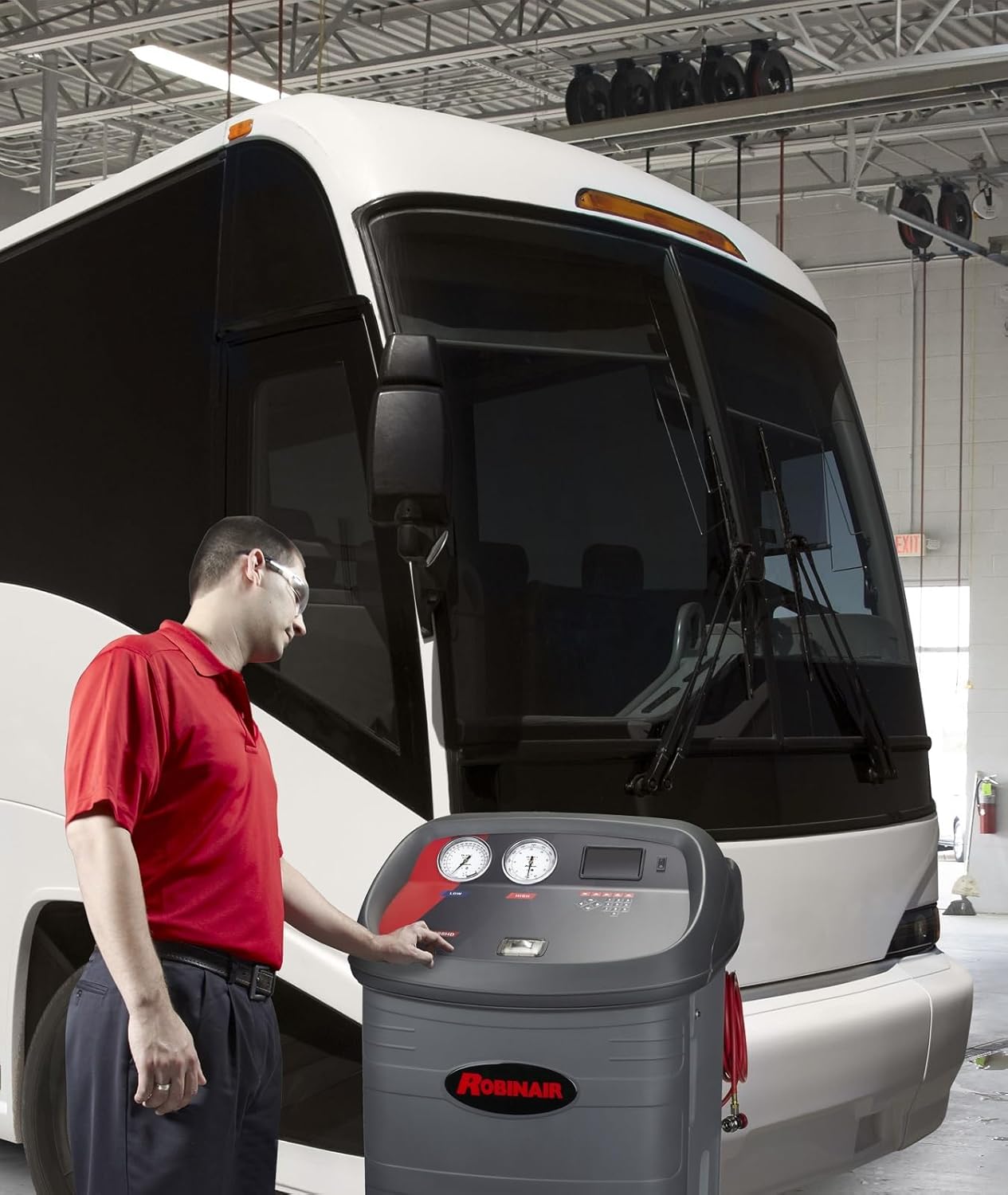

Figure 2: A technician operating the Robinair 34888HD machine next to a large bus, demonstrating its heavy-duty application for oversize vehicles.

5. Xizmat ko'rsatish

• Filter-Drier Replacement: The refrigerant management system monitors filter life. Replace the spin-on 300 lb. capacity filter-drier when prompted by the machine to ensure optimal performance and prevent contamination.
• Optional Printer: If equipped with an optional printer, ensure it is maintained according to its manufacturer's instructions for reliable data recording.

6. Texnik shartlar

7. Kafolat va qo'llab-quvvatlash

For customer support or inquiries regarding your Robinair 34888HD machine, please refer to the official Robinair customer support channels. Information regarding warranty coverage and service options can typically be found on the manufacturer's website or by contacting their support directly.
