Rtunes Racing RED 3" (76 mm) kirish sovuq havo konusi quruq havo filtri qo'llanmasi

Kirish

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Rtunes Racing RED 3" (76mm) Inlet Cold Air Cone Dry Air Filter. Please read this manual thoroughly before installation and retain it for future reference.

Mahsulot tugadiview

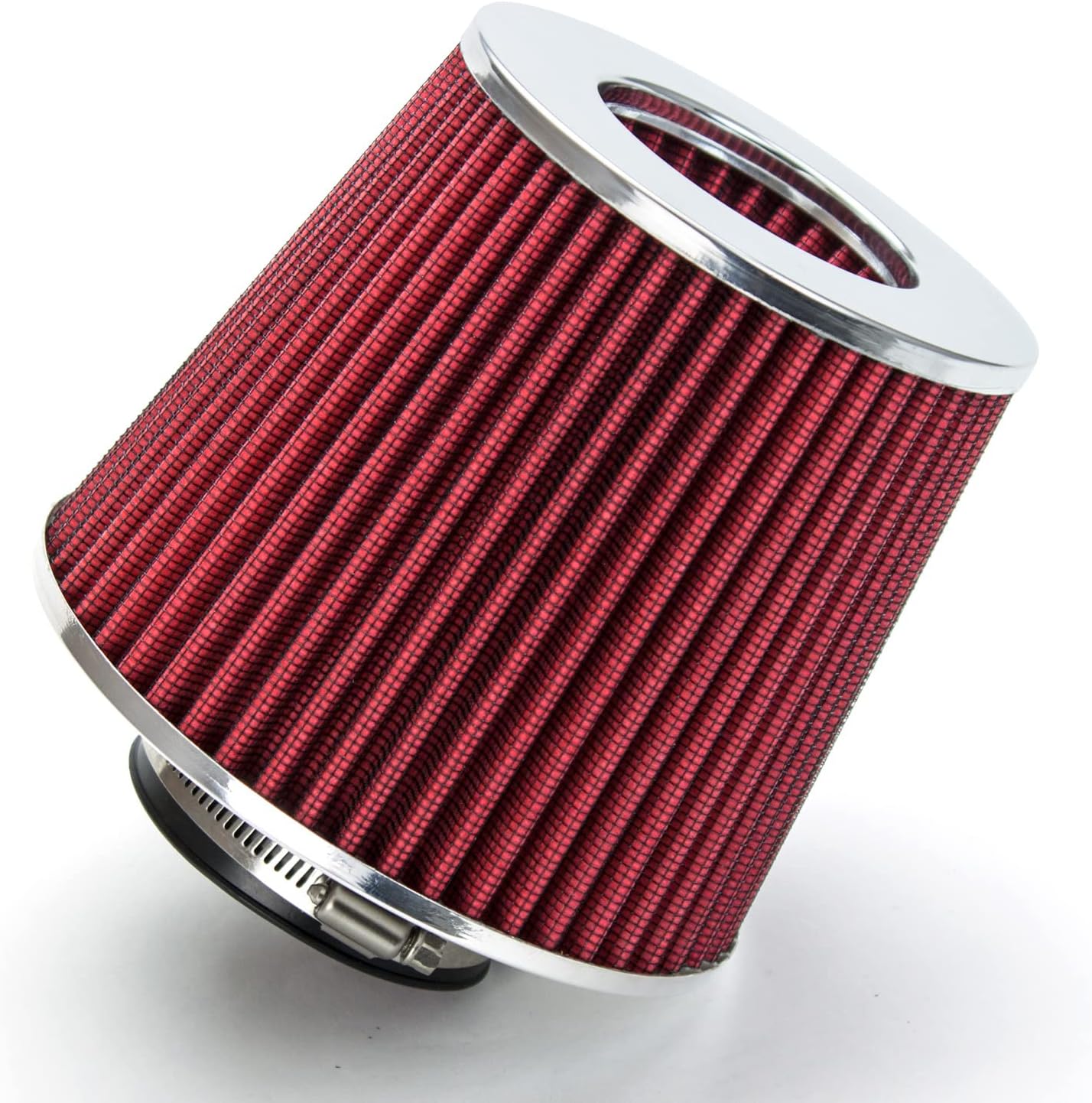

The Rtunes Racing Cold Air Cone Dry Air Filter is designed to enhance engine performance by providing high airflow and superior filtration. It is a universal replacement filter suitable for various cold air intake systems.

• Universal moslik: Designed as a replacement for various air intake systems.
• Yuqori havo oqimi: Engineered to increase horsepower and throttle response.
• Dual Layer Filtration: Constructed with two layers of mesh material for effective particle capture.
• Yuviladigan va qayta ishlatiladigan: Can be cleaned and reused, offering long-term value.
• Oson o'rnatish: Comes with a stainless steel clamp for straightforward assembly.

Product Display Video:

O'rnatish va o'rnatish

The Rtunes Racing Cold Air Cone Dry Air Filter is designed for easy installation. No additional parts are typically needed beyond what is included.

1. Prepare the Intake System: Ensure the existing air intake system is clean and free of debris. If replacing an old filter, remove it and clean the intake pipe thoroughly.
2. Cl ni biriktiringamp: Loosen the included stainless steel clamp and slide it over the rubber neck of the new air filter.
3. Connect to Intake Pipe: Slide the rubber neck of the air filter onto the intake pipe. Ensure a snug fit.
4. Cl ni himoyalangamp: Zanglamaydigan po'latdan cl.ni tortingamp securely around the intake pipe and the filter's rubber neck. Do not overtighten.
5. Ulanishni tekshirish: Double-check that the filter is firmly attached and there are no gaps that could allow unfiltered air to enter the engine.

Installation and Assembly Video:

Foydalanish bo'yicha ko'rsatmalar

Once installed, the Rtunes Racing Cold Air Cone Dry Air Filter operates automatically as part of your vehicle's air intake system. It is designed to provide consistent high-performance airflow and filtration without requiring user intervention during normal vehicle operation.

The filter's design may result in a slightly louder sound during acceleration compared to a stock air filter, due to increased airflow.

Xizmat

The Rtunes Racing Cold Air Cone Dry Air Filter is washable and reusable, designed for long-term use. Regular cleaning is essential to maintain optimal performance and engine protection.

Tozalash tartibi:

1. Filtrni olib tashlang: Carefully detach the air filter from the intake pipe by loosening the clamp.
2. Clean Excess Debris: Gently tap the filter to remove any loose dirt or debris.
3. Yuvish: Use a mild soap and water solution to wash the filter. Rinse thoroughly with water until all soap residue is gone and the water runs clear.
4. Quruq: Allow the filter to air dry completely before reinstallation. Do not use compressed air or heat, as this can damage the filter material.
5. Qayta o'rnatish: Once completely dry, reinstall the filter following the "Setup and Installation" steps.

It is recommended to check the filter every 5,000 miles to assess its condition and determine if cleaning is necessary.

Muammolarni bartaraf qilish; nosozliklarni TUZATISH

If you encounter issues with your Rtunes Racing air filter, consider the following common problems and solutions:

• Dvigatel unumdorligi pasaygan:
  • Check if the filter is dirty and requires cleaning. A clogged filter restricts airflow.
  • Ensure the filter is securely clamped to the intake pipe, preventing air leaks.
• G'ayrioddiy dvigatel shovqinlari:
  • Verify that all connections are tight and the filter is not loose.
  • Inspect the filter for any damage or tears in the mesh material.
• Filter Degradation:
  • If the filter material or structure shows signs of degradation (e.g., tearing, crumbling), replace the filter immediately to prevent engine damage.
  • Ensure the filter is not exposed to excessive heat or harsh chemicals that could compromise its integrity.

If problems persist after checking these points, consult a professional mechanic.

Texnik xususiyatlari

Kafolat va qo'llab-quvvatlash

For specific warranty information and customer support, please refer to the official Rtunes Racing website or contact their customer service directly. General return policies may apply as per the retailer's terms.
