Kirish
Thank you for choosing the BN-LINK Dusk to Dawn Light Sensor Timer with Remote Control. This device is designed to automate your outdoor lighting, providing convenience and energy efficiency. It features a built-in photocell sensor for dusk-to-dawn operation and multiple countdown timer options, all controllable via a wireless remote.
Xavfsizlik ma'lumotlari
Iltimos, ushbu mahsulotni ishlatishdan oldin barcha xavfsizlik ko'rsatmalarini o'qing va tushuning. Ushbu ko'rsatmalarga rioya qilmaslik elektr toki urishi, yong'in yoki jiddiy shikastlanishga olib kelishi mumkin.
- This outdoor timer is ETL listed and has been rigorously tested for quality control and safety. It conforms to UL Std No. 60730-1 and 60730-2-1.
- Rated for 125V, 60Hz, 1875W, 15A Resistive & General Purpose, and 5A Tungsten. Do not exceed these electrical ratings.
- For outdoor use, ensure the timer is installed vertically and at least 2 feet (0.6 meters) above the ground to maintain its waterproof integrity.
- Always ensure the timer and connected devices are securely plugged in.
- Do not immerse the timer in water or expose it to direct water jets.
- Keep children away from the timer and electrical outlets.
- Har qanday texnik xizmat ko'rsatish yoki tozalashni amalga oshirishdan oldin quvvatni uzing.
Mahsulot tugadiview
Komponentlar
- BN-LINK Outdoor Timer Unit (Model BNC-60/U129R)
- Wireless Remote Control (includes 1 x 12V battery)
Xususiyatlari
- Suv o'tkazmaydigan dizayn: Suitable for outdoor environments, designed to withstand various weather conditions.
- Fotoselli sensor: Automatically detects ambient light levels for dusk-to-dawn operation.
- Bir nechta taymer funktsiyalari: Offers Always ON, Always OFF, Dusk to Dawn, and countdown options (2H, 4H, 6H, 8H).
- Masofadan boshqarish: Wireless remote with a range of up to 100 feet (30 meters) in direct line of sight. The RF signal can penetrate walls and doors.
- Three Grounded Outlets: Provides three outlets that operate simultaneously.
- ETL ro'yxati: Ensures product safety and quality standards are met.
- O'rnatilgan o'rnatish braketi: Xavfsiz o'rnatish uchun.
Image: The BN-LINK outdoor timer unit with its three grounded outlets and the accompanying wireless remote control.

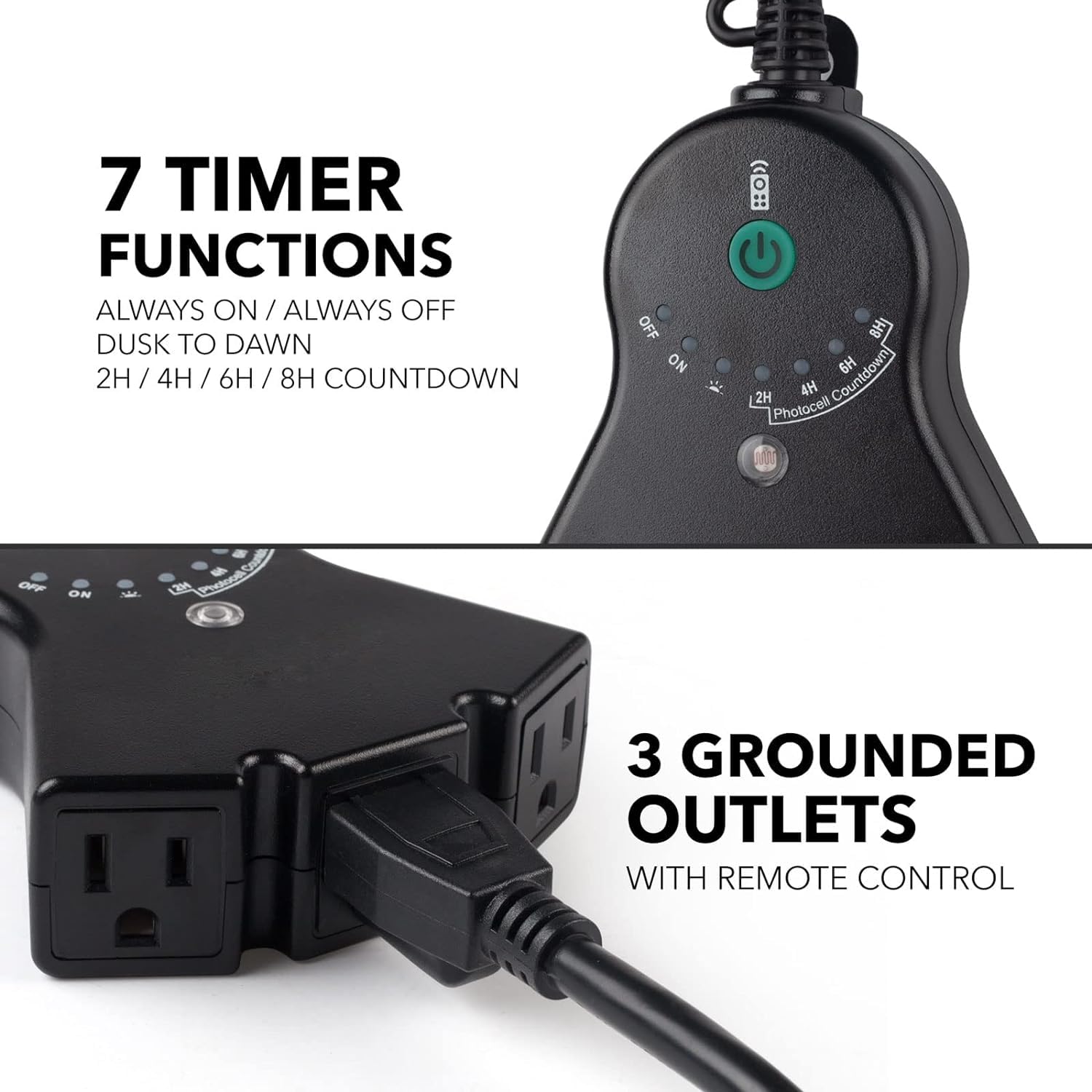

Rasm: yaqindan view highlighting the timer's 7 functions (Always ON/OFF, Dusk to Dawn, 2H/4H/6H/8H Countdown) and the three grounded outlets.
O'rnatish bo'yicha ko'rsatmalar
- Joyni tanlang: Select an outdoor location for the timer. Ensure it is mounted vertically and at least 2 feet (0.6 meters) above the ground to prevent water ingress and ensure proper photocell operation.
Image: Illustration showing the timer installed vertically and above ground level for waterproof protection.
- Quvvatni ulash: Taymerning quvvat simini erga ulangan tashqi elektr rozetkaga ulang.
- Qurilmalarni ulash: Plug your outdoor lights or appliances into the three grounded outlets on the timer unit.
- Masofaviy batareya: The remote control comes with a 12V battery pre-installed. If the remote does not respond, check the battery for proper contact or replacement.
- Pairing the Remote (if necessary):
- Unplug the timer unit from the wall outlet.
- On the remote, press and hold both the ON va O'CHIRIB tugmalar bir vaqtning o'zida.
- Hali ham ushlab turganda ON va O'CHIRIB buttons, plug the timer unit back into the wall outlet.
- Continue holding the buttons until the indicator light on the timer unit blinks, indicating successful pairing.
Image: Visual guide for pairing the remote control with the timer unit.
Foydalanish bo'yicha ko'rsatmalar
The BN-LINK timer offers several operating modes, which can be selected using the dial on the timer unit or the remote control.
Timer Unit Dial Settings
Rotate the dial on the timer unit to select the desired mode:
- O'chirish: Keeps connected devices off.
- ON: Keeps connected devices continuously on.
- Tong shafaq: Turns devices on at dusk and off at dawn automatically.
- 2H / 4H / 6H / 8H Countdown: Turns devices on at dusk and automatically turns them off after the selected duration (2, 4, 6, or 8 hours).
Image: Illustration of the Dusk-Dawn function, showing lights turning on at dusk and off at dawn or after a set countdown.
Masofadan boshqarish pultining ishlashi
The remote control allows you to conveniently switch between modes from a distance.
- ON tugmasi: Turns connected devices on.
- OFF tugmasi: Turns connected devices off.
- Dusk-Dawn Button: Activates the dusk-to-dawn mode.
- 2H / 4H / 6H / 8H Buttons: Activates the respective countdown timer mode. The devices will turn on at dusk and turn off after the selected hours.
When using the remote, ensure the timer unit's dial is set to a compatible mode (e.g., not forced to 'OFF' if you want to use remote 'ON'). The remote's signal can reach up to 100 feet, even through walls and doors.
Image: Illustration demonstrating the 100-foot range of the remote control, capable of penetrating walls and doors.
Xizmat
- Tozalash: Disconnect the timer from the power source before cleaning. Wipe the unit with a damp mato. Qattiq kimyoviy moddalar yoki abraziv tozalash vositalaridan foydalanmang.
- Fotoselli sensor: Ensure the photocell sensor (small clear dome on the timer unit) is clean and free from obstructions (e.g., dirt, leaves, snow) to ensure accurate dusk-to-dawn operation.
- Batareyani masofadan almashtirish: If the remote control's range or responsiveness decreases, replace the 12V battery.
- Mavsumiy saqlash: If storing the timer for an extended period, disconnect it from power and store it in a dry, protected area.
Muammolarni bartaraf qilish; nosozliklarni TUZATISH
| Muammo | Mumkin sabab | Yechim |
|---|---|---|
| Qurilmalar YOQILMAYDI/O'CHIRILMAYDI. | No power to the timer; Timer dial set incorrectly; Remote not paired or battery low. |
|
| Photocell (Dusk-Dawn) function not working correctly. | Photocell obstructed; Insufficient light reaching the sensor; Timer not set to Dusk-Dawn or countdown mode. |
|
| Masofadan boshqarish pulti javob bermayapti. | Remote battery is dead or loose; Remote is not paired with the timer. |
|
Texnik xususiyatlari
- Model raqami: BNC-60/U129R
- Mahsulot o'lchamlari: 7 x 5 x 2 dyuym (17.8 x 12.7 x 5.1 sm)
- Og'irligi: 10.08 untsiya (285.8 gramm)
- Kirish hajmitage: 125 voltli o'zgaruvchan tok
- Chastotasi: 60 Gts
- Maksimal yuk: 1875 Watts (Resistive & General Purpose), 5 Amps (Tungsten)
- Joriy reyting: 15 Amps
- Beygir kuchi: 1 / 2 HP
- Savdo nuqtalari: 3 ta yerga ulangan rozetkalar
- Masofadagi masofa: 30 metrgacha (100 fut) ko'rish chizig'i
- Masofaviy batareya: 1 x 12V batareya (shu jumladan)
- Sertifikatlar: ETL Listed (Conforms to UL Std No. 60730-1, 60730-2-1)
Image: Diagram showing the physical dimensions of the timer unit and its ETL certification mark.
Kafolat va qo'llab-quvvatlash
BN-LINK is committed to providing quality products and excellent customer service. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.
For technical support, troubleshooting assistance, or inquiries regarding your BN-LINK product, please contact BN-LINK customer service. Contact information can typically be found on the product packaging, the official BN-LINK websayt yoki chakana sotuvchingiz orqali.
Ishlab chiqaruvchi: BN-LINK
