SECUKEY SF2 Biometric and PIN Access Control System User Manual

1. Kirish

Thank you for choosing the SECUKEY SF2 Biometric and PIN Access Control System. This device is designed to provide secure and reliable access management for various environments, featuring advanced biometric fingerprint recognition and PIN code entry. Its robust, anti-vandal design and IP66 rating make it suitable for outdoor installations. This manual provides essential information for the proper installation, configuration, operation, and maintenance of your SF2 system. Please read it thoroughly before use.

Asosiy xususiyatlar

• Optical Biometric Fingerprint Reader with 500DPI resolution.
• Fast Identification Time: Approximately 1 second.
• User Capacity: Up to 3,000 users (1,000 fingerprint users, 2,000 PIN users).
• Two "Authorizer" users for enabling/disabling other users.
• IP66 Rated for Outdoor Protection: Resistant to dust and powerful water jets.
• Anti-Vandal Zinc Alloy Casing.
• Programmable Relay Output (NO, NC, Common) with adjustable time (1-99 seconds, default 5 seconds).
• Access Modes: Fingerprint, PIN code, or Card (Wiegand 26-44 bit output).
• Wiegand 26-44 bit output for integration with external controllers (e.g., SBOARD, SBOARD-II).
• Interlock Functionality: Manage two doors with two SF2 devices.
• Operating Temperature Range: -30°C to 60°C (-22°F to 140°F).
• Namlik diapazoni: 10% RH dan 99% RH gacha.
• Power Supply: 12-24V AC/DC.

2. Xavfsizlik ma'lumotlari

• O'rnatish yoki texnik xizmat ko'rsatishdan oldin elektr ta'minoti uzilganligiga ishonch hosil qiling.
• Use only the specified power supply (12-24V AC/DC).
• Do not expose the device to extreme temperatures outside the specified operating range.
• Qurilmada kuchli kimyoviy moddalar yoki abraziv tozalash vositalaridan foydalanmang.
• Installation should be performed by qualified personnel to ensure proper wiring and functionality.
• Optimal ishlash uchun barmoq izi sensorini toza va quruq holda saqlang.

3. Mahsulot tugadiview

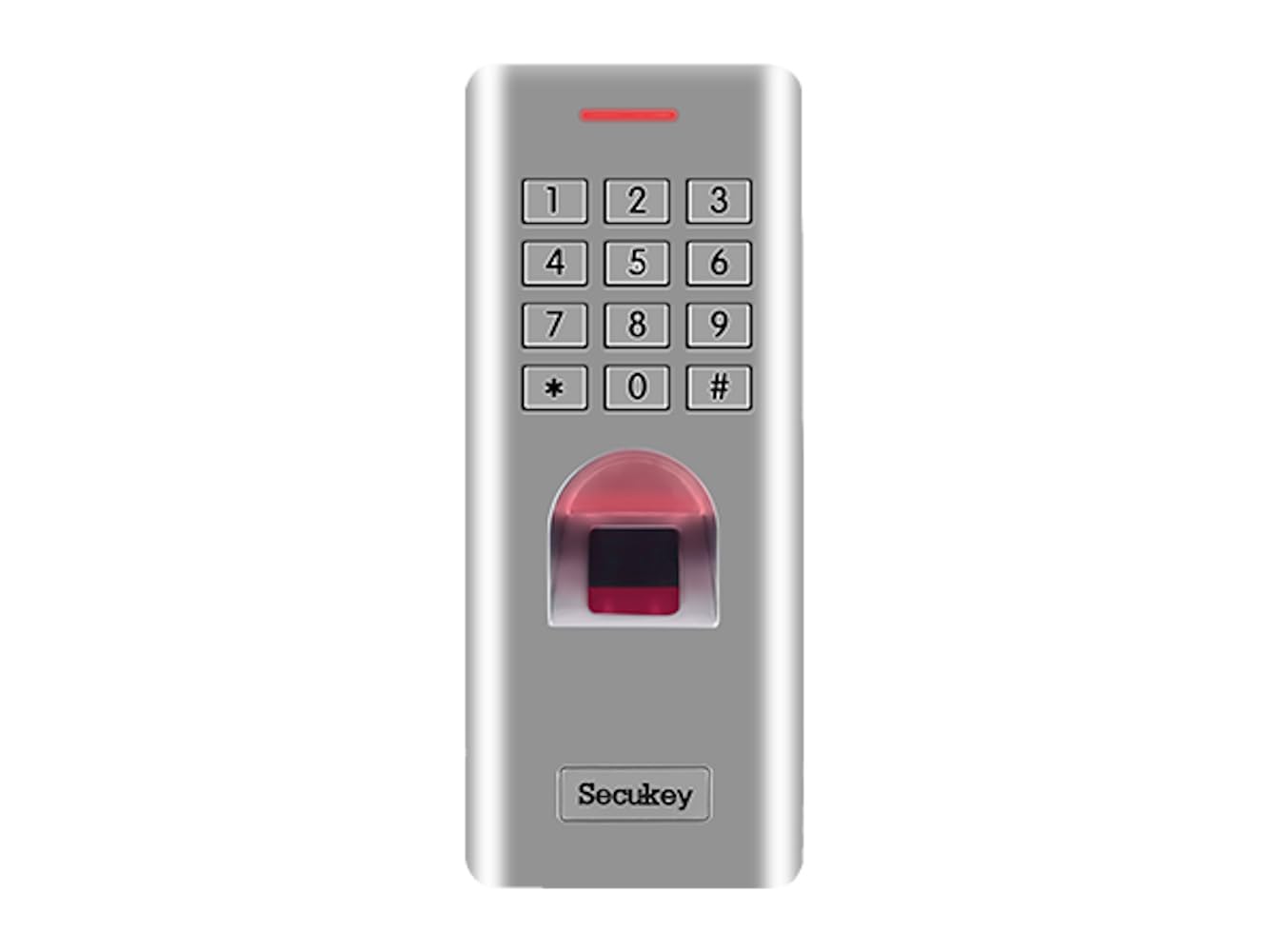

3.1 Old qismi View

3.2 Orqaga View va Ulanishlar

3.3 Jismoniy xususiyatlar

• Anti-Vandal Design: The SF2 features a robust metal casing designed to withstand tampering and physical impact, ensuring durability in challenging environments.



• IP66 suv o'tkazmaydigan reytingi: This rating ensures the device is protected against dust ingress and powerful water jets, making it suitable for outdoor installation without concern for weather conditions.

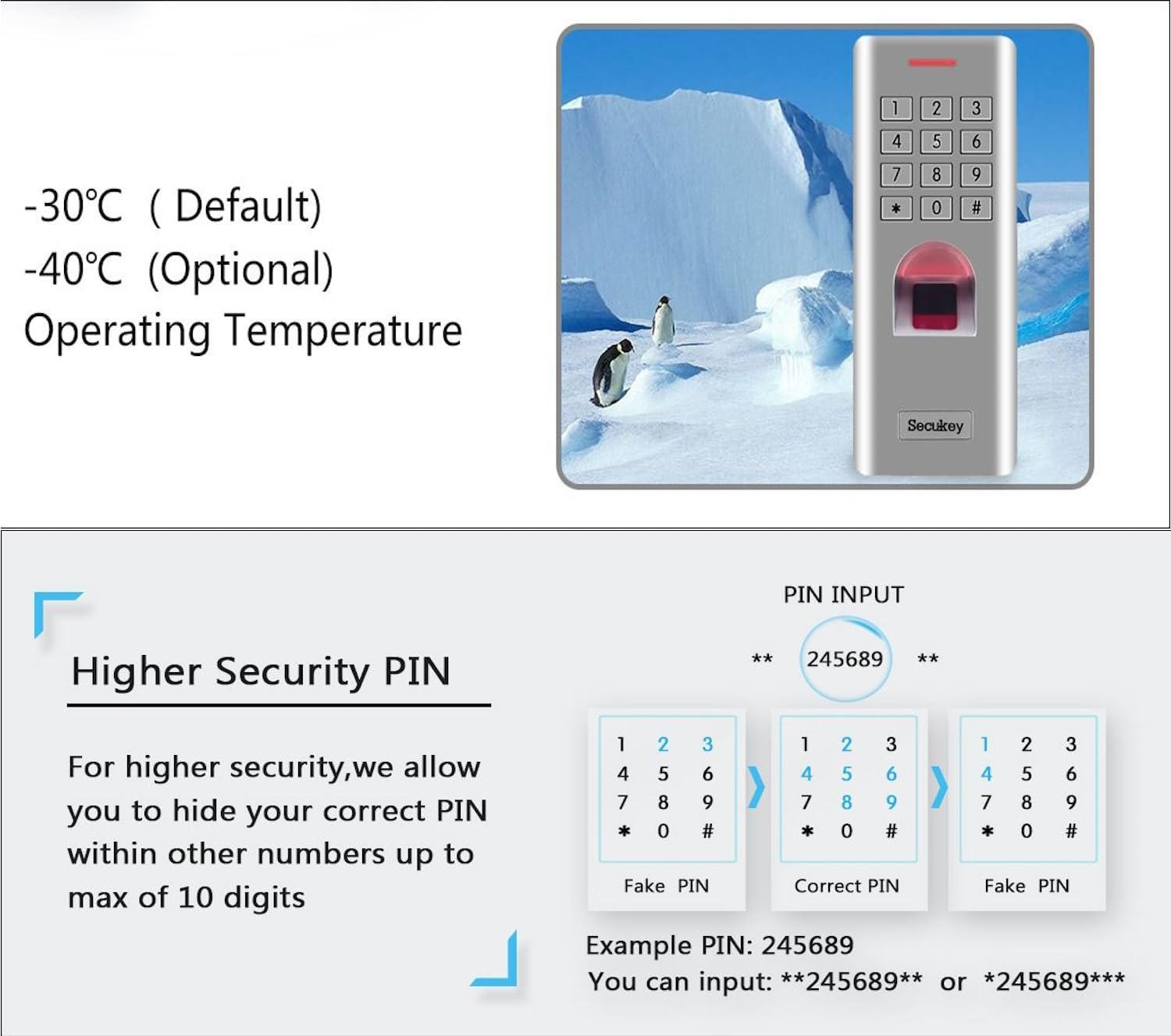

• Ishlash harorati: The device is designed to operate reliably across a wide temperature range, from -30°C (default) to 60°C. An optional -40°C operating temperature may be available depending on the specific model variant.
• Higher Security PIN: The system supports a feature allowing users to hide their correct PIN within a longer sequence of numbers (up to 10 digits) for enhanced security against shoulder surfing. For example, if the PIN is 245689, a user could input **245689** or *245689***.

4. O'rnatish

4.1 O'rnatish

The SECUKEY SF2 should be mounted on a flat, stable surface at an appropriate height for user access. Ensure the mounting location is secure and allows for proper cable routing. Use appropriate screws and anchors for the wall material.

4.2 Bolalar

The SF2 supports two primary working modes: standalone and as a slave reader. Proper wiring is crucial for correct operation. Refer to the detailed wiring diagram provided in the product packaging or the manufacturer's official documentation for specific connections.

Mustaqil rejim: In this mode, the SF2 directly controls the lock, door sensor, and exit button. It acts as a complete access control unit.

Slave Reader Mode: When operating as a slave reader, the SF2 connects to an external access control panel (controller) via Wiegand 26-44 bit output. The controller then manages the lock and other peripherals.

Ensure all connections are secure and insulated. Incorrect wiring can damage the device or connected components.

5. Sozlash

5.1 Dastlabki quvvatlanish

1. After completing all wiring, connect the power supply (12-24V AC/DC).
2. The device will power on and perform a self-test.
3. The default administrator PIN is typically 123456 (refer to specific product documentation for confirmation).

5.2 Foydalanuvchilarni boshqarish

The SF2 allows for the registration of up to 3,000 users, including 1,000 fingerprint users and 2,000 PIN users. It also supports two "Authorizer" users who can enable or disable other users.

Administrator qo'shish

Follow the on-screen prompts or refer to the detailed programming guide to set up the initial administrator PIN and/or fingerprint. This is crucial for managing other users and system settings.

Barmoq izlarini ro'yxatdan o'tkazish

1. Enter administrator mode.
2. Select the option to add a new fingerprint user.
3. Place the user's finger on the sensor multiple times as instructed to ensure accurate registration.
4. Assign a user ID to the registered fingerprint.

Registering PIN Codes

1. Enter administrator mode.
2. Select the option to add a new PIN user.
3. Enter the desired PIN code (typically 4-6 digits) and confirm it.
4. Assign a user ID to the registered PIN.

Authorizer Users

The SF2 supports two special "Authorizer" users. These users have the unique ability to enable or disable other standard users without full administrator privileges. This feature is useful for delegated management of user access.

6. Foydalanish bo'yicha ko'rsatmalar

6.1 Kirish rejimlari

The SECUKEY SF2 offers multiple ways for authorized users to gain access:

• Barmoq iziga kirish: Place a registered finger on the optical sensor. The system will verify the fingerprint and grant access if authorized.
• PIN-kodga kirish: Enter your registered PIN code on the keypad, followed by the '#' key. For enhanced security, you can embed your PIN within a longer sequence of numbers (e.g., if PIN is 1234, you can enter 987123456#).
• Card Access (Wiegand): If configured with an external Wiegand card reader, present your authorized RFID card to the reader. The SF2 will output the Wiegand data to the controller for verification.

6.2 Interlock Function

When two SF2 devices are installed, they can be configured to manage an interlock system between two doors. This ensures that the second door cannot be opened until the first door is securely closed, enhancing security in sensitive areas. Refer to the advanced programming guide for interlock setup instructions.

7. Xizmat ko'rsatish

• Tozalash: Regularly wipe the fingerprint sensor and keypad with a soft, dry, lint-free cloth. Do not use abrasive materials or chemical cleaners.
• Dasturiy ta'minotni yangilash: Ishlab chiqaruvchini tekshiring weboptimal ishlash va xavfsizlikni ta'minlash uchun vaqti-vaqti bilan mavjud bo'lgan dasturiy ta'minot yangilanishlari uchun saytni tekshirib turing.
• User Database Management: Muntazam ravishda qaytaview and update the user database, removing access for terminated personnel or adding new users as required.
• Elektr ta'minotini tekshirish: Elektr ta'minoti barqaror va belgilangan hajmda bo'lishini ta'minlangtage diapazoni (12-24V AC/DC).

8. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

9. Texnik shartlar

10. Kafolat va qo'llab-quvvatlash

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official SECUKEY websayt. Kafolat da'volari uchun xarid kvitansiyasini xaridni tasdiqlovchi hujjat sifatida saqlang.

Information regarding spare parts availability and software updates is not explicitly provided in the product details. Please contact SECUKEY customer service for the most current information.
