LG RH9V71WH 9kg Heat Pump Dryer User Manual

1. Mahsulot tugadiview

The LG RH9V71WH is a 9kg capacity heat pump dryer designed for efficient and gentle drying of various fabric types. Featuring advanced heat pump technology, a Dual Inverter compressor, and an Auto Cleaning Condenser, this appliance offers significant energy savings and enhanced convenience.

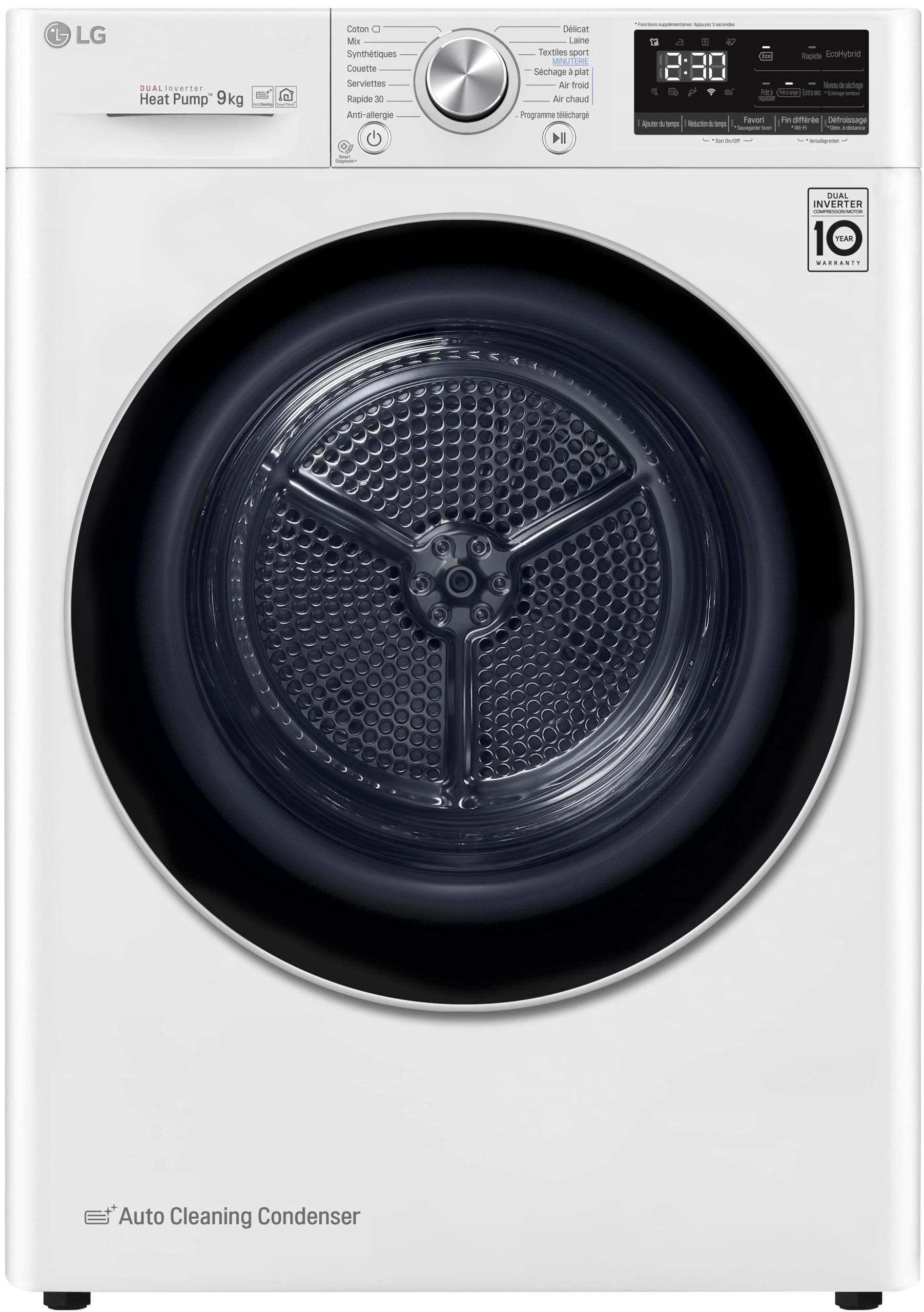

Old view of the LG RH9V71WH 9kg Heat Pump Dryer, showing the control panel, drum, and 'Auto Cleaning Condenser' label.

Asosiy xususiyatlar:

• 9kg Capacity: Suitable for large laundry loads.
• Issiqlik pompasi texnologiyasi: Innovative heat management system for energy efficiency and gentle drying.
• Dual Inverter Compressor: Provides quiet operation and extended durability, backed by a 10-year warranty.
• Auto Cleaning Condenser: Automatically cleans the condenser for consistent drying performance and reduced maintenance.
• Aqlli diagnostika: Allows for remote troubleshooting via a smartphone application.
• Zanglamaydigan po'latdan yasalgan baraban: Durable 121-liter drum for quiet and effective drying cycles.
• Energy Efficiency Class A+++: High energy rating for reduced electricity consumption.
• Past shovqin darajasi: Operates at 62 dB for a quieter home environment.

2. Xavfsizlik bo'yicha ko'rsatmalar

Read all instructions before using the appliance to prevent risks of fire, electric shock, or injury to persons.

Umumiy xavfsizlik:

• Egzoz teshigi atrofidagi joyni va uning atrofidagi joylarni tuklar, chang va axloqsizlikdan tozalang.
• Ilgari tozalangan, yuvilgan, namlangan yoki benzin, kimyoviy tozalash erituvchilari yoki boshqa yonuvchan yoki portlovchi moddalar bilan dog'langan narsalarni quritmang.
• Bolalarning qurilma ustida yoki uning ichida o'ynashiga yo'l qo'ymang. Jihoz bolalar yonida ishlatilsa, bolalarni diqqat bilan kuzatib borish kerak.
• Agar baraban harakatlanayotgan bo'lsa, qurilma ichiga qo'lingizni tekkizmang.

Elektr xavfsizligi:

• Quritgich to'g'ri erga ulanganligiga ishonch hosil qiling.
• Do not operate the dryer with a damaged power cord or plug.
• Ushbu jihoz bilan uzaytirgich yoki adapterdan foydalanmang.

O'rnatish xavfsizligi:

• Install the dryer on a firm, level floor.
• Jihoz atrofida etarli ventilyatsiya bo'lishini ta'minlang.
• Jihozni ob-havo ta'sir qiladigan joyga o'rnatmang yoki saqlamang.

3. Sozlash

Paketdan chiqarish:

1. Barcha qadoqlash materiallarini, shu jumladan asosiy o'rash va har qanday himoya plyonkalarni olib tashlang.
2. Check for any damage during transit. If damaged, do not install and contact your retailer.

Joylashuv talablari:

• Place the dryer on a solid, level surface to prevent vibration and noise.
• Ensure there is sufficient space around the dryer for proper air circulation.
• To'g'ridan-to'g'ri quyosh nuri yoki issiqlik manbalaridan saqlaning.

Elektr aloqasi:

• Connect the dryer to a dedicated, grounded electrical outlet.
• Jildiga ishonch hosil qilingtage va chastota qurilmaning reyting yorlig'ida ko'rsatilgan texnik xususiyatlarga mos keladi.

Suv drenaji:

This condensation dryer collects water in an integrated tank located in the control panel. After each use, the water tank must be emptied.

• Pull out the water tank gently.
• Yig'ilgan suvni lavaboga to'kib tashlang.
• Reinsert the water tank until it clicks into place.

4. Foydalanish bo'yicha ko'rsatmalar

Boshqaruv paneli tugadiview:

The control panel features a program selector dial, an LED display, and various function buttons. The LED display shows the remaining drying time and other cycle information.

Quritish dasturlari:

Turn the program selector dial to choose from the following drying programs:

• Paxta: For cotton items like T-shirts, underwear, and towels.
• Aralash yuk: For a combination of cotton and synthetic fabrics.
• Sintetik: For synthetic fabrics such as polyester and nylon.
• Noziklar: For delicate items requiring gentle drying.
• Jun: Jun buyumlar uchun maxsus dastur.
• Sport kiyimlari: For activewear and sportswear.
• Yorgan: For large items like duvets and blankets.
• Sochiqlar: Optimized for drying towels.
• Tez 30: A rapid drying cycle for small loads.
• Allergiyaga qarshi: Helps reduce allergens in laundry.
• Quritish vaqti: Quritish vaqtini qo'lda sozlash imkonini beradi.
• Rack Quruq: For items that need to be dried flat on a drying rack (requires accessory).
• Sovuq havo: For refreshing items without heat.
• Issiq havo: For gentle warming or airing.
• Downloaded Cycle: Access additional cycles via the LG ThinQ app.

Tsikl imkoniyatlari:

Press the corresponding buttons to select additional options:

• Vaqt qo'shish: Increase the drying time.
• Reduce Time: Decrease the drying time.
• Sevimli: Save frequently used settings.
• Kechikish tugashi: Set a delayed end time for the cycle (up to 19 hours).
• Burishishga qarshi: Reduces wrinkles by periodically tumbling clothes after the cycle ends.
• Remote Start (Wi-Fi): Start or monitor the dryer remotely using the LG ThinQ app.
• Quritish darajasi: Adjust the desired dryness level (e.g., Iron Dry, Cupboard Dry, Extra Dry).

Tsiklni boshlash:

1. Load the dryer with laundry, ensuring not to overload.
2. Close the dryer door firmly.
3. Turn the program selector dial to choose the desired drying program.
4. Select any additional options as needed.
5. Tsiklni boshlash uchun Start/Pauza tugmasini bosing.
6. The dryer will automatically stop once the selected dryness level is reached. An end-of-cycle chime will sound.

5. Xizmat ko'rsatish

Muntazam texnik xizmat ko'rsatish optimal ishlashni ta'minlaydi va quritgichingizning ishlash muddatini uzaytiradi.

Paxta filtrini tozalash:

Clean the lint filter after every load to maintain drying efficiency and prevent fire hazards.

1. Quritgich eshigini oching.
2. Pull out the lint filter located inside the door opening.
3. To'plangan tuklar qo'lda yoki yumshoq cho'tka bilan olib tashlanadi.
4. Reinsert the clean lint filter firmly.

Emptying the Water Condensate Tank:

Har bir quritish davridan keyin suv idishini bo'shating.

1. Gently pull out the water tank from its compartment on the control panel.
2. Pour the collected water into a drain.
3. Push the water tank back into its position until it is securely seated.

Auto Cleaning Condenser:

The LG RH9V71WH features an Auto Cleaning Condenser, which automatically flushes lint from the condenser with water collected during the drying cycle. This reduces the need for manual cleaning and helps maintain consistent drying performance. No user intervention is typically required for condenser cleaning.

Tashqi ko'rinishni tozalash:

Quritgichning tashqi yuzalarini yumshoq mato bilan artib oling, damp mato. Abraziv tozalash vositalarini yoki erituvchilarni ishlatmang.

6. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

Mijozlarga xizmat ko'rsatish xizmatiga murojaat qilishdan oldin, qaytaview quyidagi umumiy muammolar va echimlar.

Aqlli diagnostika:

The Smart Diagnosis feature allows you to troubleshoot problems with your appliance using a smartphone. If you experience an issue, follow the instructions in the LG ThinQ app or contact LG customer support for guidance on using this feature to identify potential faults remotely.

7. Texnik shartlar

8. Kafolat haqida ma'lumot

This LG Heat Pump Dryer comes with a comprehensive warranty. Specifically, the Dual Inverter Compressor is covered by a 10 yillik kafolat, reflecting its durability and LG's commitment to quality.

For detailed warranty terms and conditions, including coverage for other components and service procedures, please refer to the warranty card included with your product or visit the official LG websayt.

9. Mijozlarni qo'llab-quvvatlash

If you encounter any issues that cannot be resolved using the troubleshooting guide or the Smart Diagnosis feature, please contact LG Customer Support.

• Rasmiy LG ga tashrif buyuring webqo'llab-quvvatlash manbalari, tez-tez so'raladigan savollar va aloqa ma'lumotlari uchun sayt.
• Have your model number (RH9V71WH) and serial number ready when contacting support.
