IK Multimedia AXE I/O SOLO USB Audio Interface foydalanuvchi qo'llanmasi

1. Kirish

The IK Multimedia AXE I/O SOLO is a premium 2-in/3-out USB audio interface designed for guitarists and musicians. It offers high-resolution 24-bit, 96 kHz audio conversion, advanced guitar tone shaping features, and comes bundled with powerful software like AmpliTube 5 SE and TONEX SE. This manual provides detailed instructions for setting up, operating, and maintaining your AXE I/O SOLO.

1.1-rasm: Old burchakli view of the IK Multimedia AXE I/O SOLO USB Audio Interface.

2. Qutida nima bor

Upon unpacking your AXE I/O SOLO, please ensure all the following items are present:

• AXE I/O SOLO Audio Interface
• USB-A dan USB-B kabeliga
• Registration Card with Software Download Instructions

If any items are missing or damaged, please contact IK Multimedia support immediately.

3. Sozlash

3.1. Drayv o'rnatish

1. Mahsulotingizni ro'yxatdan o'tkazing: Visit the IK Multimedia website and register your AXE I/O SOLO using the provided serial number. This will grant access to software downloads and updates.
2. Drayvlarni yuklab oling: From your IK Multimedia user area, download the latest drivers for your operating system (Windows or macOS).
3. Drayvlarni o'rnatish: Follow the on-screen instructions to install the drivers. It is recommended to restart your computer after installation.

3.2. Uskuna ulanishlari

Connect your AXE I/O SOLO to your computer and other audio equipment as follows:

• USB ulanishi: Connect the supplied USB cable from the AXE I/O SOLO's USB 2.0 port to an available USB port on your computer. The device is USB bus-powered.
• Instrument Input (Input 1): Connect your guitar or bass to the 1/4" TS input on the front panel.
• Microphone/Line Input (Input 2): Connect a microphone (XLR) or a line-level instrument (1/4" TRS) to the combo jack on the rear panel. Ensure 48V phantom power is enabled for condenser microphones.
• Line Outputs (1/L, 2/R): Connect your studio monitors or an external mixer to the 1/4" TRS Line Out jacks on the rear panel.
• Amp Chiqish: Connect the 1/4" TS Amp Out jack on the front panel to your guitar amplifier's input for re-amping or direct monitoring through an amp.
• Naushniklar: Connect your headphones to the 1/4" TRS Headphone jack on the front panel.
• MIDI kirish/chiqish: Connect MIDI devices to the 5-pin DIN MIDI In and Out ports on the rear panel.
• Tashqi nazorat: Connect expression pedals or footswitches to the 1/4" TS Switch/Pedal 1 and 2 inputs on the rear panel for hands-free control of software parameters.

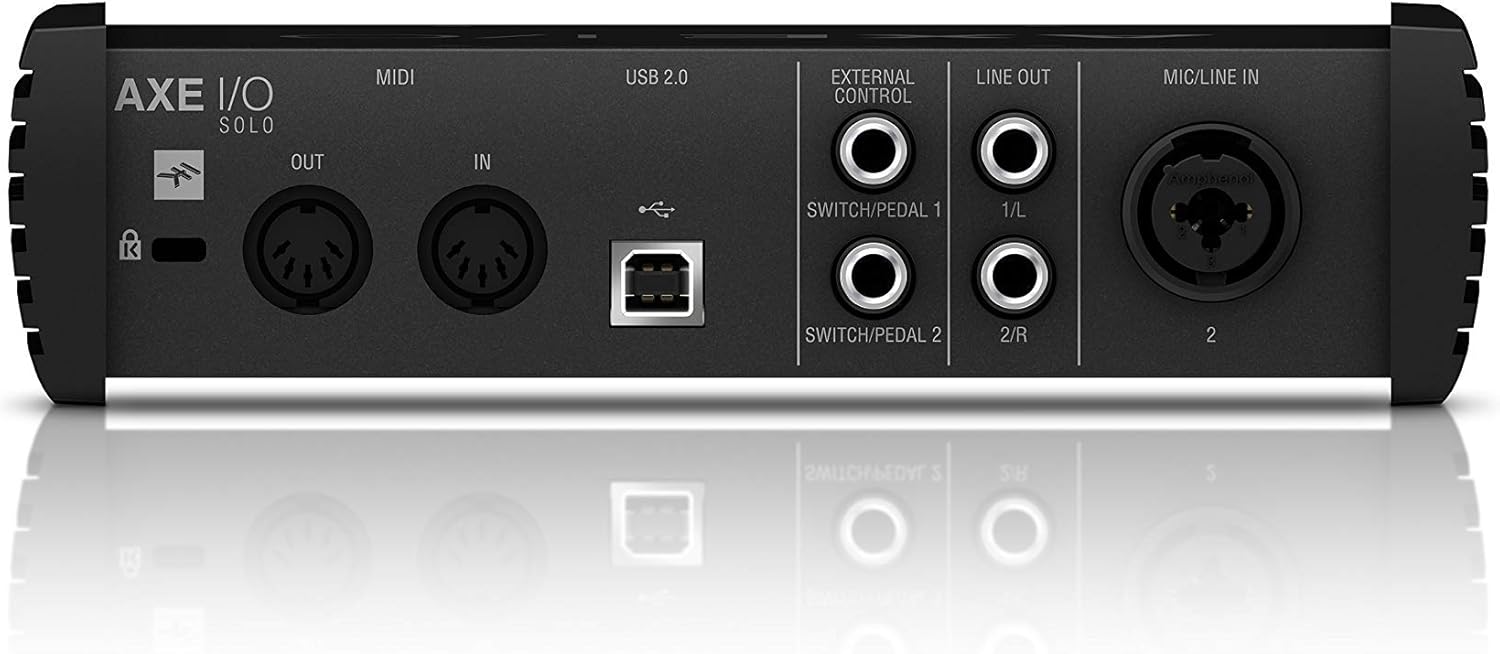

Figure 3.1: Rear panel showing USB, MIDI, External Control, Line Out, and Mic/Line In connections.

4. Foydalanish bo'yicha ko'rsatmalar

4.1. Old panelni boshqarish

Figure 4.1: Front panel controls including Gain, Z-Tone, Monitor, Headphones, and Master knobs, along with input switches.

• GAIN (Input 1 & 2): Adjusts the input level for connected instruments or microphones. The LED meters indicate signal strength and clipping.
• Z-TONE (Input 1): This unique feature allows you to vary the impedance of the instrument input.
  • O'tkir: Higher impedance for a tighter, sharper sound.
  • QALIN: Lower impedance for a thicker, bolder sound.
• PASSIVE/ACTIVE Switch (Input 1): Selects the appropriate input impedance for passive or active guitar pickups.
• PURE/JFET Switch (Input 1): Switches between a transparent PURE preamp and a Class A JFET input for a warmer, tube-like tone.
• 48V Button (Input 2): Activates +48V phantom power for condenser microphones. The LED illuminates when active.
• MONITOR tugmasi: Blends between the direct input signal (DIRECT) and the playback signal from your computer (DAW) for zero-latency monitoring.
• Eshitish vositasi tugmasi: Controls the output volume for the headphone jack.
• MASTER tugmasi: Controls the overall output volume for the Line Outputs.

5. Dasturiy ta'minot integratsiyasi

The AXE I/O SOLO includes a powerful software bundle to enhance your recording and tone-shaping experience.

5.1. AmpliTube 5 SE

AmpliTube 5 SE provides a comprehensive suite of virtual guitar and bass amplifiers, cabinets, stompboxes, and rack effects. It allows you to create detailed signal chains and achieve a wide range of tones.

Figure 5.1: AXE I/O SOLO in use with a guitar and a laptop running AmpliTube 5 SE.

5.2-rasm: The AmpliTube 5 SE software interface, showing various virtual ampko'taruvchilar va effektlar.

5.2. TONEX SE

TONEX SE utilizes AI Machine Modeling technology to capture the sound of any amp, cabinet, or pedal and turn it into a Tone Model. You can play, practice, and record with thousands of Tone Models available.

Figure 5.3: The TONEX SE software interface, displaying various Tone Models and their settings.

5.3. Software Activation

After installing the drivers, follow the instructions provided with your registration card to download and activate AmpliTube 5 SE and TONEX SE from your IK Multimedia user account. Ensure your AXE I/O SOLO is connected during the activation process.

6. Xizmat ko'rsatish

• Tozalash: Jihozning tashqi qismini tozalash uchun yumshoq, quruq matodan foydalaning. Abraziv tozalagichlar yoki erituvchilardan saqlaning.
• Saqlash: Store the AXE I/O SOLO in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
• Kabelni parvarish qilish: Always handle cables by the connector, not the wire, to prevent damage.

7. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

If you encounter issues with your AXE I/O SOLO, consider the following common solutions:

• Ovoz yo'q:
  • Check all cable connections (USB, instrument, monitors, headphones).
  • Ensure the AXE I/O SOLO is selected as the input/output device in your computer's sound settings and your DAW.
  • Adjust GAIN, MONITOR, HEADPHONES, and MASTER knobs.
  • Verify that the correct input mode (PASSIVE/ACTIVE, PURE/JFET) is selected for your instrument.
• Haydovchi muammolari:
  • Reinstall the latest drivers from the IK Multimedia websayt.
  • Kompyuterning boshqa USB portiga ulanishga harakat qiling.
  • Operatsion tizimingiz yangilanganligiga ishonch hosil qiling.
• Software Not Recognizing Device:
  • Ensure the AXE I/O SOLO drivers are correctly installed and the device is connected.
  • Check your DAW's audio preferences to ensure the AXE I/O SOLO is selected as the audio device.
  • Verify software activation status.
• Buzilgan ovoz:
  • Reduce the input GAIN to prevent clipping (check the CLIP LEDs).
  • Ensure the correct input mode (PASSIVE/ACTIVE) is selected for your instrument.

For further assistance, refer to the official IK Multimedia support resources.

8. Texnik shartlar

9. Kafolat va qo'llab-quvvatlash

9.1. Kafolat haqida ma'lumot

The IK Multimedia AXE I/O SOLO is covered by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official IK Multimedia webkafolat qoplamasi va muddatiga oid batafsil shartlar va shartlar uchun sayt.

9.2. Mijozlarni qo'llab-quvvatlash

For technical support, product registration, software downloads, or any other inquiries, please visit the official IK Multimedia support page:

www.ikmultimedia.com/support

You can also find the full user manual in PDF format here: AXE I/O SOLO User Manual (PDF)
