Wildgame Innovations XR250 Crossbow | Ready To Hunt Recurve Crossbow Package Instruction Manual

1. Xavfsizlik ma'lumotlari

Operating any crossbow requires strict adherence to safety protocols to prevent injury. Always treat the crossbow as if it is loaded. Never point a crossbow at anything you do not intend to shoot. Ensure your target and its surroundings are clear before firing. Always wear appropriate eye protection when handling or shooting the crossbow.

• Always read and understand the entire instruction manual before using the crossbow.
• Keep fingers and hands clear of the string path and rail when cocking or firing.
• Use only arrows or bolts recommended by the manufacturer for this model.
• Never dry fire the crossbow (firing without an arrow). This can cause damage to the crossbow and potential injury.
• Store the crossbow unloaded and in a secure location, out of reach of children.
• Always inspect the crossbow for any damage or wear before each use.

OGOHLANTIRISH: Ushbu mahsulot Kaliforniya shtatida saraton va tug'ma nuqsonlarni yoki boshqa reproduktiv zararni keltirib chiqaradigan kimyoviy moddalarni o'z ichiga oladi. Qo'shimcha ma'lumot olish uchun, o'ting www.P65Warnings.ca.gov.

2. Mahsulot tugadiview

The Wildgame Innovations XR250 Crossbow is a recurve crossbow package designed for hunting. It features a robust construction and comes ready for use with essential components. This model is known for its reliability and ease of handling.

Figure 2.1: Wildgame Innovations XR250 Crossbow. This image displays the complete crossbow assembly, including the stock, trigger mechanism, rail, limbs, string, and scope, along with a quiver holding arrows.

Key features of the XR250 Crossbow include:

• Made from high-quality materials ensuring durability.
• Designed for optimal performance.
• Ambidextrous design for versatile use.

3. Sozlash

3.1 Paketni ochish

Carefully remove all components from the packaging. Verify that all included components are present:

• Crossbow Assembly
• titroq
• Arrows/Bolts
• Scope (if included in package)
• Uskunani yig'ish
• Qo'llanma (bu hujjat)

3.2 Yig'ish

Follow these general steps for assembly. Refer to specific diagrams in your package for detailed instructions:

1. Attach the foot stirrup to the front of the crossbow riser using the provided hardware. Ensure it is securely fastened.
2. Mount the quiver bracket to the crossbow stock or rail, as indicated in your specific model's diagram.
3. Install the scope onto the picatinny rail. Secure it firmly with the scope rings, ensuring proper eye relief and alignment.
4. Inspect all connections and hardware to ensure they are tight and secure before proceeding.

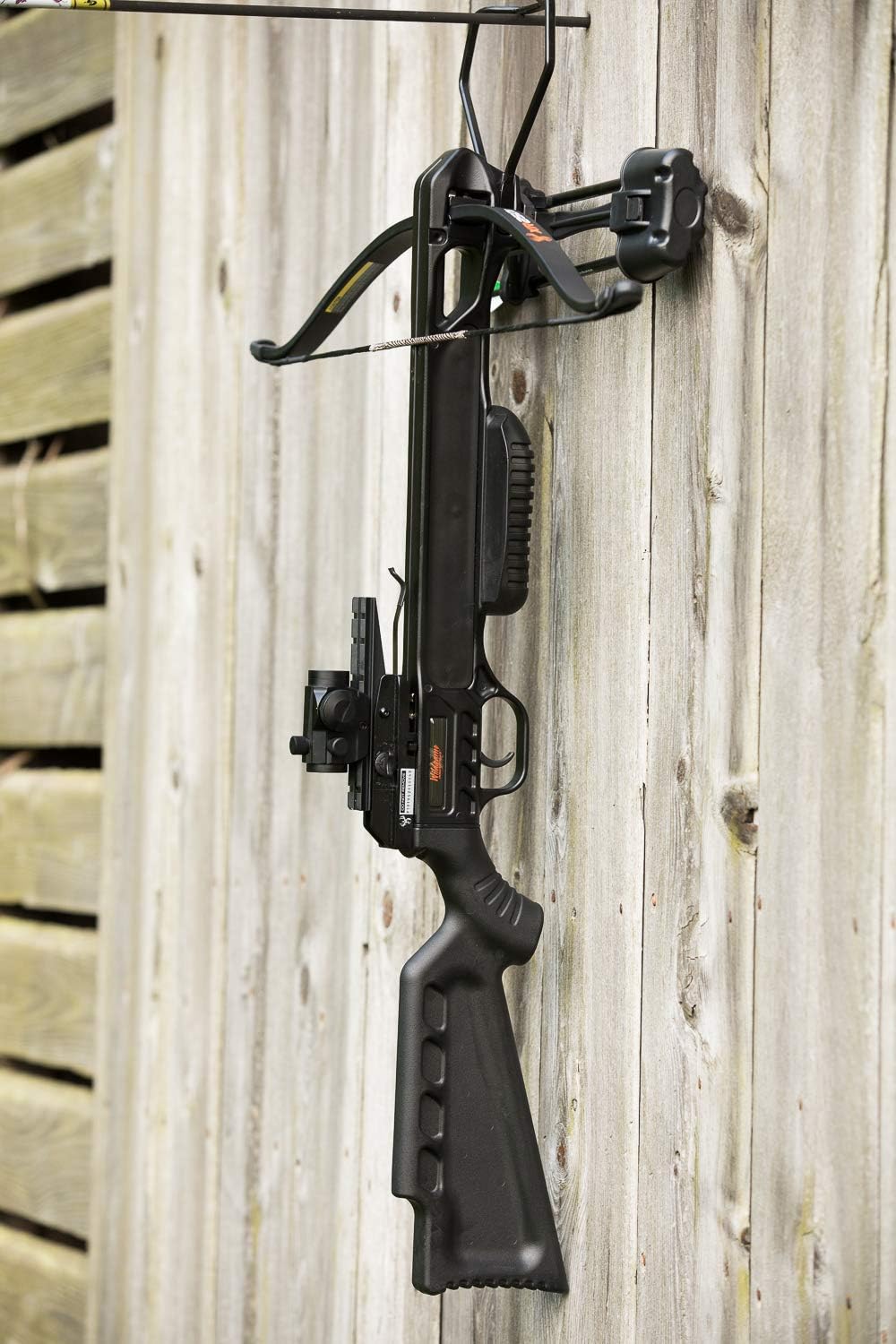

Figure 3.1: The XR250 Crossbow hanging vertically, showcasing its assembled form and compact design. This view highlights the stock, trigger, rail, and limbs.

4. Foydalanish bo'yicha ko'rsatmalar

4.1 Cocking the Crossbow

To cock the crossbow, place your foot firmly in the foot stirrup. Grasp the string with both hands, ensuring an even grip. Pull the string upwards and backwards until it engages with the trigger mechanism's safety catch. Ensure the safety is engaged automatically or manually set to "SAFE".

4.2 Loading an Arrow

With the crossbow cocked and on "SAFE", place an appropriate arrow onto the rail. Ensure the arrow's nock is properly seated on the string and the arrow is fully pushed back against the string. The arrow should lie flat on the rail.

4.3 Aiming and Firing

Once the arrow is loaded and the safety is engaged, you are ready to aim. Position yourself stably and acquire your target through the scope. When ready to fire, disengage the safety. Place your finger on the trigger and apply steady pressure until the crossbow fires. Always maintain a firm grip and follow through with your shot.

Note: The XR250 Crossbow features an ambidextrous design, allowing comfortable use for both left and right-handed individuals.

5. Xizmat ko'rsatish

Regular maintenance is crucial for the longevity and safe operation of your crossbow.

5.1 Tozalash

• After each use, wipe down the crossbow with a clean, dry cloth to remove dirt and moisture.
• Periodically clean the rail with a soft cloth and apply a thin layer of rail lubricant to reduce friction and wear.

5.2 String and Cable Care

• Inspect the string and cables regularly for fraying or damage. Replace them immediately if any damage is observed.
• Apply string wax to the string and cables (excluding the serving) periodically to extend their lifespan and maintain performance.

5.3 Saqlash

• Store the crossbow in a cool, dry place, away from direct sunlight and extreme temperatures.
• Always store the crossbow unloaded and with the safety engaged.

6. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

This section addresses common issues you might encounter with your crossbow. If the problem persists, contact customer support.

7. Texnik shartlar

8. Kafolat va qo'llab-quvvatlash

Specific warranty details for the Wildgame Innovations XR250 Crossbow are typically provided with the product packaging or available on the manufacturer's official website. Please refer to those resources for comprehensive warranty information, including coverage period and terms.

For technical support, replacement parts, or any inquiries not covered in this manual, please contact BARNETT customer service. You can often find contact information on the official BARNETT websayt yoki mahsulot sotib olingan chakana sotuvchi orqali.

You may also visit the official BARNETT store on Amazon for more information and product updates: BARNETT Amazon Store
