1. Kirish
The RENAISSER Raphael 520C is a high-precision stylus pen designed for Microsoft Surface devices and other compatible touchscreens. It offers an exceptional writing and drawing experience with advanced features like 4096 levels of pressure sensitivity, tilt support, and palm rejection. Its durable aluminum body and efficient USB-C charging make it an ideal tool for professionals and creatives alike.
This manual provides detailed instructions to help you get the most out of your Raphael 520C stylus, from initial setup to advanced usage and troubleshooting.
2. Paket tarkibi
Upon opening your RENAISSER Raphael 520C package, please ensure all components are present:
- RENAISSER Raphael 520C Stylus Pen (1)
- Replacement Stylus Tips (2) - Includes HB-type and 2H-type for varied writing feel.
- Foydalanuvchi uchun qo'llanma (ushbu hujjat)
3. Mahsulot xususiyatlari va komponentlari
The Raphael 520C stylus is engineered for optimal performance and user comfort. Key features include:
- USB-C zaryadlash: Fast and convenient charging.
- 4096 Pressure Sensitivity: Provides precise control for drawing and writing.
- Nishab sezgirligi: Allows for shading effects, similar to a traditional pencil.
- Palma rad etish: Prevents unintended marks when resting your hand on the screen.
- Magnit biriktirma: Securely attaches to compatible Surface devices.
- Ergonomik dizayn: Lightweight (14 grams) and streamlined for comfortable extended use.
- Bardoshli material: Constructed from premium aluminum alloy.
The stylus incorporates MPP 2.0 Technology, offering significant improvements over older stylus designs:
4. Sozlash va zaryadlash
4.1 Dastlabki zaryadlash

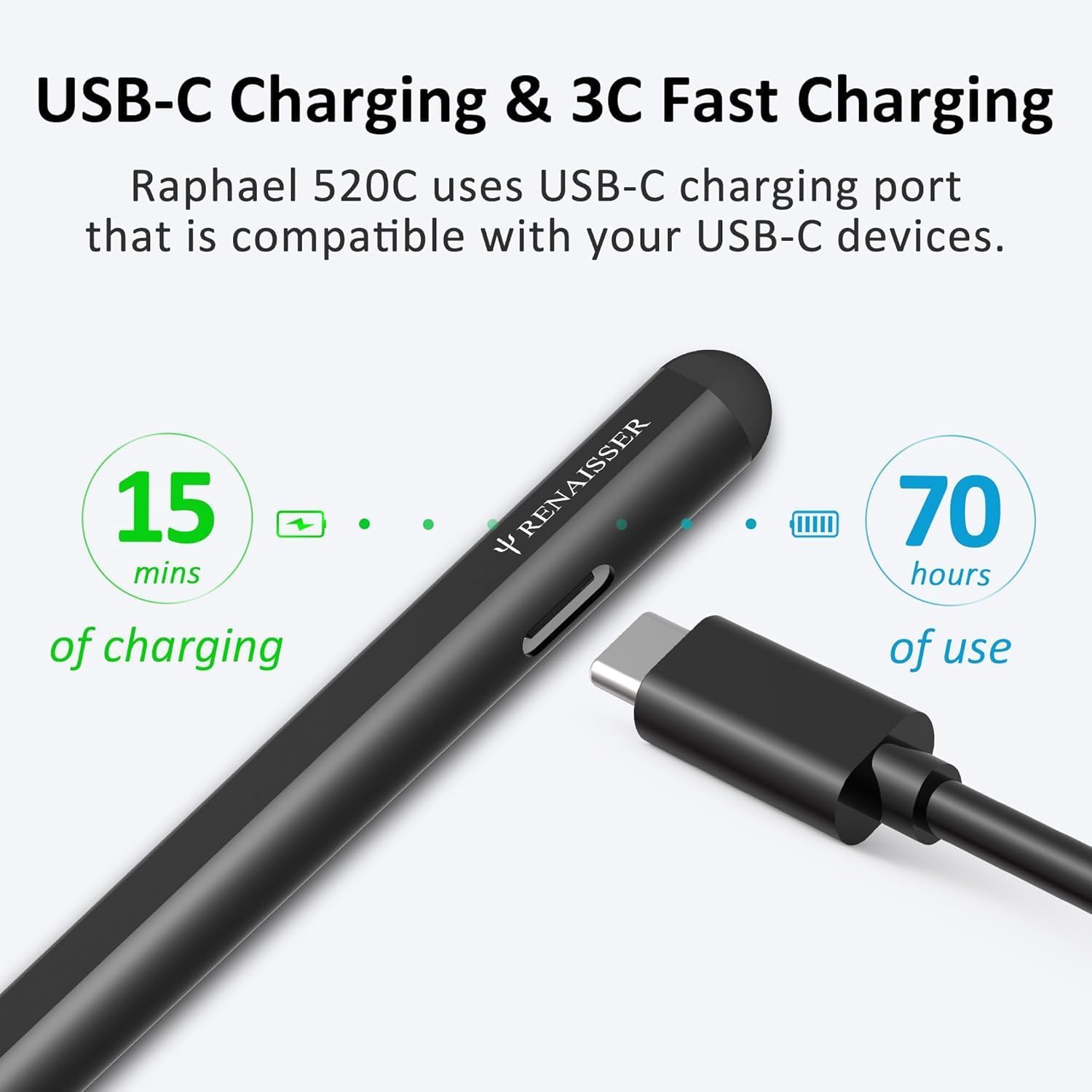

Before first use, it is recommended to fully charge your Raphael 520C stylus. The stylus features a USB-C charging port for quick and efficient power delivery.
- Connect the USB-C cable to the charging port on the side of the stylus.
- Connect the other end of the cable to a compatible USB-C power adapter or port.
- A 20-minute charge provides approximately 50 hours of use. A full 1-hour charge can last for over 100 hours.
The design ensures the charging port remains accessible even when magnetically attached to your Surface device.
4.2 Pairing and Connection
The Raphael 520C stylus does not require Bluetooth pairing. Simply turn on the pen, and it will automatically connect to compatible devices within range.
- Press the power button on the stylus to turn it on.
- The stylus is ready for use when the indicator light is active.
5. Foydalanish bo'yicha ko'rsatmalar
5.1 Asosiy foydalanish
Use the Raphael 520C stylus just like a traditional pen on your compatible touchscreen device. The pen's tip interacts directly with the screen for precise input.
5.2 Pressure and Tilt Sensitivity
The stylus supports 4096 levels of pressure sensitivity, allowing for varying line thickness and opacity based on how hard you press. Tilt sensitivity enables shading effects by tilting the stylus, similar to using a pencil. Compatibility with tilt sensitivity may vary depending on the application and specific pen brushes used.
5.3 Kaftni rad etish
With palm rejection, you can comfortably rest your hand on the screen while writing or drawing without causing unintended marks or interference.
5.4 Tugma funksiyalari
The Raphael 520C features two functional buttons:
- Sichqonchaning o'ng tugmasi bilan tugmani bosing: Typically located near the tip, this button functions as a right-click, opening context menus or performing specific actions within applications.
- Oʻchirish tugmasi: Located above the right-click button, this button activates the erase function in drawing or note-taking applications.
5.5 Magnit biriktirma
The Raphael 520C is equipped with built-in magnets, allowing it to securely attach to the left side of compatible Surface Pro, Go, and Book devices. This provides convenient storage and prevents loss.
6. Moslik
The RENAISSER Raphael 520C Stylus Pen is compatible with a wide range of Microsoft Surface devices and other select touchscreen computers. Please refer to the list below for confirmed compatibility:
- Surface Pro 11/10/9/8/7+/7/6/5/4
- Surface Duo/Duo 2
- Surface Pro X
- Yuzaki Go/Go 2/Go 3
- Yuzaki kitob/2-kitob/3-kitob
- Surface Studio 1-avlod, Surface Studio 2, Surface Studio 2+
- Surface Laptop 1/Laptop 2/Laptop 3/Laptop 4/Laptop 5/Laptop 6
- Surface Laptop Studio
- Kobo Libra Colour, Kobo Sage, Kobo Elipsa, Kobo Elipsa 2E
Eslatma: The Raphael 520C is emas compatible with Surface Laptop Go, Surface Laptop Go 2, or other touchscreen computers not explicitly listed above.
7. Xizmat ko'rsatish
7.1 Zaryadlashning eng yaxshi amaliyotlari
- Charge the stylus using a standard USB-C cable and a compatible power source.
- Avoid overcharging by disconnecting the stylus once fully charged.
- If the stylus will not be used for an extended period, charge it periodically to maintain battery health. The smart power management feature will automatically turn off the pen after 10 minutes of non-use to conserve battery.
7.2 Qalam uchlarini almashtirish
The Raphael 520C comes with original quality HB-type and 2H-type pen tips, providing different writing sensations. Over time, pen tips may wear down and require replacement. To replace a tip:
- Gently pull the old tip straight out from the stylus.
- Insert a new tip firmly into the stylus until it clicks into place.
7.3 Tozalash
To clean your stylus, wipe it gently with a soft, dry, lint-free cloth. Do not use abrasive cleaners or immerse the stylus in liquid.
8. Muammolarni bartaraf qilish; nosozliklarni TUZATISH
| Muammo | Mumkin sabab | Yechim |
|---|---|---|
| Stylus not responding or inconsistent writing. | Low battery; Incompatibility with device/application; Software glitch. | Charge the stylus fully. Verify your device is listed in the compatibility section. Restart your device and the application. Ensure the pen tip is securely inserted. |
| Buttons not functioning. | Application specific settings; Software glitch. | Check application settings for stylus button customization. Restart the application or device. |
| Magnetic attachment not working. | Incorrect attachment side; Non-compatible device. | Ensure you are attaching to the left side of compatible Surface devices. Confirm your device model is compatible with magnetic attachment. |
| Pen turns off automatically too quickly. | Smart power management feature. | This is normal behavior; the pen turns off after 10 minutes of non-use to save battery. Press the power button to reactivate. |
9. Texnik shartlar
| Xususiyat | Tafsilot |
|---|---|
| Model raqami | Rafael 520C |
| Olchamlari (U x G x Y) | 5.88 x 0.36 x 0.34 dyuym (149.35 x 9.14 x 8.64 mm) |
| Element og'irligi | 0.494 untsiya (14 gramm) |
| Material | alyuminiy |
| Bosim sezuvchanligi | 4096 daraja |
| Nishab sezuvchanligi | Qo'llab-quvvatlanadi |
| Zaryadlash porti | USB-C |
| Zaryadlash vaqti | Taxminan To'liq zaryadlash uchun 1 soat |
| Batareya muddati | Up to 100+ hours on a full charge (50 hours for 20 min charge) |
| Batareya turi | Litiy-ionli polimer |
| Avtomatik o'chirish xususiyati | 10 daqiqa ishlatilmagandan keyin |
10. Kafolat va qo'llab-quvvatlash
RENAISSER mahsulotlari yuqori sifat standartlariga muvofiq ishlab chiqariladi. Kafolat muddati, texnik yordam yoki xizmat ko'rsatish bo'yicha ma'lumot olish uchun mahsulotingiz bilan birga kelgan kafolat kartasiga murojaat qiling yoki RENAISSERning rasmiy veb-saytiga tashrif buyuring. websayt. Kafolat da'volari uchun xarid kvitansiyasini saqlang.
For further assistance, you may contact RENAISSER customer support through their official channels.
