1. Kirish
Thank you for choosing the horizont ABN60 Electric Fence Energizer. This device is designed to provide reliable and efficient electric fencing for various animals, including horses, cattle, wild boar, cats, and dogs. With its versatile power options (9V, 12V, 230V) and integrated energy-saving circuit, the ABN60 is an ideal solution for fence lengths up to 6.5 km (or 4.5 km with medium vegetation).

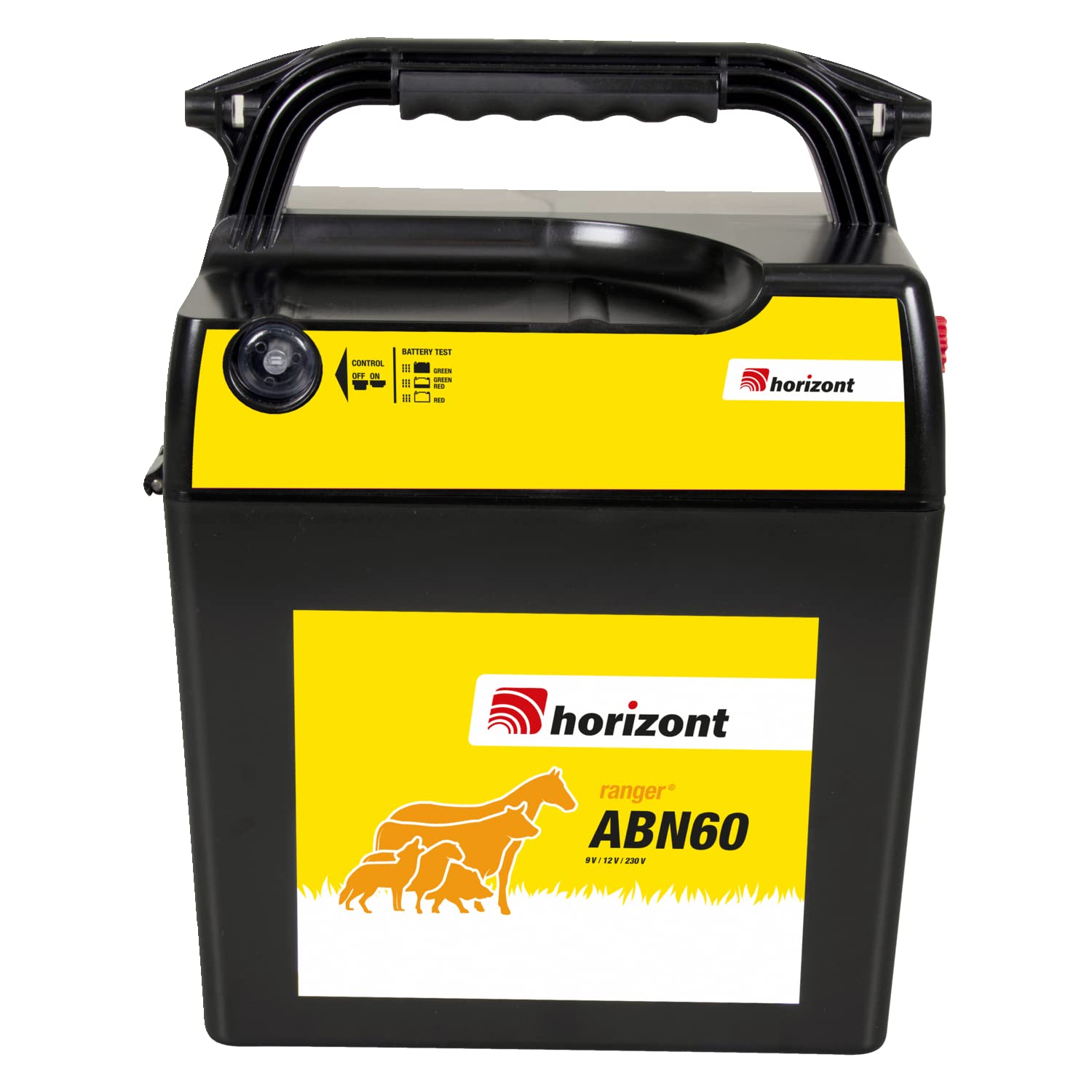

Image 1.1: The horizont ABN60 Electric Fence Energizer. This image shows the compact black and yellow casing of the energizer, highlighting its control panel and branding.
2. Xavfsizlik bo'yicha ko'rsatmalar
Please read all safety instructions carefully before operating the device to ensure safe and proper use.
- Always disconnect the energizer from all power sources before performing any maintenance or making connections.
- Ensure proper grounding of the energizer as per local regulations to prevent electrical hazards.
- Do not install the energizer in wet or damp conditions unless it is specifically rated for such environments.
- Bolalar va ruxsatsiz shaxslarni elektr to'siqqa yaqin tuting.
- Use only recommended accessories and power adapters.
- Regularly inspect the fence and energizer for damage or wear.
3. Mahsulot tugadiview
The horizont ABN60 is a robust and versatile electric fence energizer designed for ease of use and durability. Its high-quality plastic casing is UV-stabilized, splash-proof, torsion-resistant, shock-resistant, and oil-resistant, ensuring long-lasting performance in various outdoor conditions.
3.1 Asosiy xususiyatlar
- Moslashuvchan quvvat imkoniyatlari: Can be connected simultaneously to a 230V mains power supply and a 12V battery. Supports interrupted operation and optional solar panel connection.
- Energy Control LED Indicator: A 3-level LED indicator provides quick battery capacity checks and shows the energizer's activity by flashing with each pulse.
- Energy-Saving Circuit: The special energy-saving circuit adapts the energizer's power consumption to the pasture fence conditions, reducing energy consumption, environmental impact, and costs.
- Wide Animal Suitability: Suitable for horses, cattle, wild boar, cats, and dogs.
- Fence Length Capacity: Effective for fence lengths up to 6.5 km (or 4.5 km with medium vegetation).
4. O'rnatish va o'rnatish
4.1 Quvvat manbai imkoniyatlari
The ABN60 offers multiple power supply options:
- 230V Mains Power: Connect the energizer to a standard 230V AC outlet using the provided power adapter.
- 12V batareya: Connect a 12V DC battery to the designated terminals. Ensure correct polarity (+ to + and - to -).
- 9V batareya: For portable use, a 9V battery can be connected.
- Quyosh paneli (ixtiyoriy): The energizer is compatible with optional solar panels for continuous charging of a 12V battery. Refer to the solar panel's manual for specific connection instructions.
4.2 Connecting to the Fence
Follow these steps to connect the energizer to your electric fence system:
- Topraklama: Install a suitable ground rod (not included) deep into the soil, away from buildings and other grounding systems. Connect the energizer's ground terminal to the ground rod using a high-quality ground wire.
- Panjara ulanishi: Connect the energizer's fence output terminal to your electric fence line. Ensure all fence insulators are in good condition to prevent energy loss.
- Yoqilgan: Once all connections are secure, connect the chosen power source to the energizer. The 'Energy Control' LED indicator should begin flashing.
Image 4.1: The horizont ABN60 energizer deployed in a pasture, connected to an electric fence protecting sheep. This illustrates a typical setup in an agricultural environment.
Image 4.2: The horizont ABN60 energizer securely mounted on a fence post, demonstrating a common installation method for stability and optimal performance.
5. Operatsiya
5.1 Energy Control LED Indicator
The ABN60 features a clear LED indicator system for monitoring its status:
- Yashil LED: Indicates normal operation and sufficient battery capacity (if using battery power).
- Sariq LED: Indicates medium battery capacity, suggesting the battery may need recharging or replacement soon.
- Qizil LED: Indicates low battery capacity or a fault in the fence line (e.g., short circuit). Immediate attention is required.
- Miltillovchi: The LED will flash in sync with the energizer's pulse, confirming that it is actively sending out electrical impulses.
5.2 Energy Saving Circuit
The integrated energy-saving circuit automatically adjusts the energizer's power output based on the fence conditions. This intelligent feature optimizes energy consumption, extending battery life and reducing operational costs, especially in situations with varying vegetation or fence loads.
6. Xizmat ko'rsatish
Regular maintenance ensures the longevity and optimal performance of your horizont ABN60 energizer:
- Tozalik: Keep the energizer clean and free from dust, dirt, and debris. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
- Ulanishlar: Periodically check all electrical connections (power, fence, ground) to ensure they are secure and free from corrosion.
- Batareya (agar mavjud bo'lsa): If using a 12V battery, monitor its charge level using the LED indicator. Recharge or replace the battery as needed. For long-term storage, disconnect the battery.
- Devor liniyasi: Regularly inspect the entire fence line for breaks, shorts, or excessive vegetation touching the wires, which can reduce energizer effectiveness.
- Saqlash: When not in use for extended periods, store the energizer in a cool, dry place, disconnected from all power sources.
7. Muammolarni bartaraf qilish; nosozliklarni TUZATISH
If you encounter issues with your ABN60 energizer, refer to the table below for common problems and solutions:
| Muammo | Mumkin sabab | Yechim |
|---|---|---|
| Energizer not pulsing / No LED activity | No power supply; Faulty connection; Dead battery. | Check power source (mains/battery). Ensure all connections are secure. Recharge or replace battery. |
| Qizil LED yonadi | Low battery; Short circuit on fence line; Heavy vegetation. | Recharge/replace battery. Inspect fence for shorts (e.g., broken insulators, wire touching ground). Clear excessive vegetation. |
| Weak pulse / Animals crossing fence | Poor grounding; Fence shorting; Insufficient energizer power for fence length/vegetation. | Improve grounding (add more ground rods). Find and fix fence shorts. Ensure energizer is suitable for your fence size and conditions. |
| Energizer making unusual noises | Ichki nosozlik. | Disconnect power immediately. Do not attempt to repair. Contact customer support. |
8. Texnik spetsifikatsiyalar
Key technical details for the horizont ABN60 Electric Fence Energizer:
| Spetsifikatsiya | Qiymat |
|---|---|
| Model raqami | ABN60 (10983) |
| Ishlab chiqaruvchi | gorizontal |
| Kirish hajmitage | 9V / 12V / 230V |
| Chiqish hajmitage (maksimal) | 11000 V |
| Saqlangan energiya | 0.65 Joul |
| Effective Fence Length (Medium Vegetation) | 4.5 km gacha |
| Maximum Fence Length | 6.5 km gacha |
| ASIN | B09WJB3Z23 |
| Date Listed on Amazon.com.be | 25 yil 2022 mart |
| Ehtiyot qismlar mavjudligi | Ma'lumot mavjud emas |
9. Kafolat va qo'llab-quvvatlash
horizont products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official horizont website. If you require technical assistance, have questions about installation, or need to report a fault, please contact horizont customer support. Keep your purchase receipt as proof of purchase for any warranty claims.
For further assistance, please visit the horizont brand store on Amazon or their official websayt.
