ToolkitRC M9 ko'p funksiyali aqlli zaryadlovchi qurilmasi foydalanuvchi qo'llanmasi

1. Xavfsizlik choralari

Xavfsiz ishlashni ta'minlash va shikastlanishning oldini olish uchun quyidagi ehtiyot choralariga rioya qiling:

• The M9 charger accepts a DC input voltage range of 7-35V. Verify that your power supply voltage is compatible and correctly observe positive and negative polarity during connection.
• Do not operate this product near heat sources, in humid conditions, or in environments containing flammable or explosive gases.
• Always use this product under supervision to prevent potential accidents.
• When the product is not in use, disconnect the input power promptly.
• When utilizing the charging function, set the current appropriate for the battery type and capacity. Avoid setting excessively high charging currents, as this may damage the battery.

2. Mahsulot tugadiview

The ToolkitRC M9 is a versatile multifunction smart charger designed for various battery types and applications. It integrates balance charging, discharging, battery display, signal measurement, signal source, and other functionalities into a single compact device.

2.1 Asosiy xususiyatlar

• Ko'p funktsionallik: Combines balance charge/discharge, electric display, signal measurer, and signal source.
• Wide Battery Compatibility: Supports LiPo, LiHV, LiFe, Lion, LTO (1-8S), NiMh (1-20S), and Pb (1-10S) batteries.
• Signal Measurement & Output: Measures and outputs PWM/PPM/SBUS signals with microsecond accuracy.
• Drone Battery Compatibility: Automatically activates and charges mainstream drone batteries.
• Firmware Upgrade & Customization: Allows firmware upgrades and customization of voice and boot screen via USB (simulates a U disk).
• Dual USB Fast Charging: Features USB-A and Type-C ports with up to 65W output for fast charging external devices.

2.2 Paket tarkibi

• 1x ToolkitRC M9 Charger
• 1x Quick Manual
• 1x USB kabeli

Figure 2.1: ToolkitRC M9 Charger, packaging, quick manual, and USB cable.

Figure 2.2: Graphic illustrating the M9's all-in-one functionality, including balance charger, watt meter, battery meter, signal source, DC output, and signal tester.

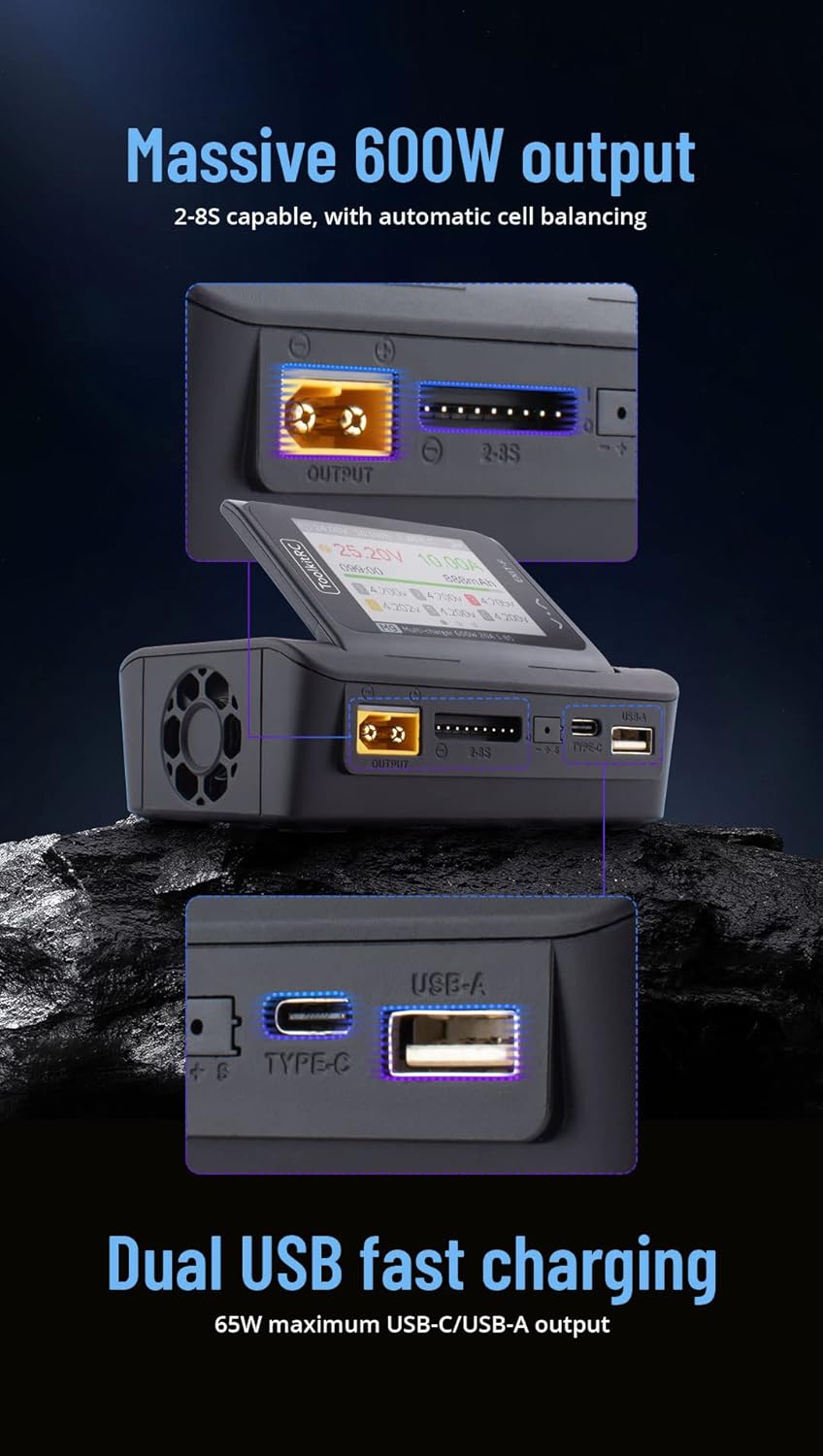

Figure 2.3: Graphic highlighting the M9's massive 600W output (2-8S capable with automatic cell balancing) and dual USB fast charging (65W maximum USB-C/USB-A output).

3. Texnik shartlar

4. Sozlash

4.1 Quvvatni ulash

1. Ensure your DC power supply provides a voltage 7V dan 35V gacha.
2. Connect the positive (+) terminal of your DC power supply to the positive input terminal of the M9 charger, and the negative (-) terminal to the negative input terminal. Observe polarity carefully.
3. Power on the DC supply. The M9 display should illuminate.

4.1-rasm: orqa view of the M9 charger showing the DC 7-35V input port and TF card slot.

4.2-rasm: Old view of the M9 charger showing the XT60 output port, balance port, Type-C, and USB-A ports.

4.2 Initial Power On and Navigation

Upon successful power-on, the device will display the main interface. Use the scroll knob and buttons to navigate through menus and select options.

Figure 4.3: Close-up of the M9's IPS display showing real-time charging data, including voltage, current, capacity, and individual cell voltages.

4.4-rasm: yon view of the M9, illustrating the adjustable display screen and various ports including output, balance, Type-C, and USB-A.

5. Operatsiya

5.1 Batareyani zaryadlash va zaryadsizlantirish

1. Connect your battery to the appropriate port (e.g., XT60 for main power, balance port for cell balancing).
2. Navigate to the "Charge" or "Discharge" menu on the M9 display.
3. Select the battery type (LiPo, LiHV, LiFe, Lion, LTO, NiMh, Pb) and cell count (S).
4. Set the desired charging or discharging current. Ensure the current is suitable for your battery's specifications to prevent damage.
5. Confirm settings and start the process. Monitor the display for real-time information.

The M9 supports balance charging for multi-cell lithium batteries, ensuring each cell reaches the same voltage optimal ishlash va uzoq umr ko'rish uchun.

5.2 USB Fast Charging

The M9 features dual USB ports (USB-A and Type-C) for fast charging external devices. These ports support various fast charging protocols (PD, QC, PPS, AFC, SCP) with a maximum output of 65W.

1. Connect your device to either the USB-A or Type-C port using a compatible cable.
2. The M9 will automatically detect the device and initiate charging.

5.3 Signal Measurement and Output

The M9 can measure and output PWM, PPM, and SBUS signals, useful for testing RC components like servos and ESCs.

1. Navigate to the "Signal Measurer" or "Signal Source" menu.
2. Select the desired signal type (PWM, PPM, SBUS).
3. Follow the on-screen instructions to connect your component for measurement or to configure the output signal parameters.

5.4 Firmware Updates and Customization

The M9 supports firmware updates and customization of the welcome screen and voice packs.

1. Connect the M9 to a computer via the USB port. The device will appear as a U disk.
2. Dasturiy ta'minot yangilanishini nusxalash file or custom voice/image files to the M9's storage.
3. Follow the specific instructions provided with the firmware update for installation.

6. Xizmat ko'rsatish

• Keep the charger clean and free from dust and debris. Use a soft, dry cloth for cleaning.
• Zaryadlovchini to'g'ridan-to'g'ri quyosh nuri va haddan tashqari haroratdan uzoqroq joyda, salqin va quruq joyda saqlang.
• Regularly inspect cables and connectors for any signs of wear or damage. Replace damaged components immediately.
• Haddan tashqari issiqlikning oldini olish uchun ish paytida to'g'ri shamollatishni ta'minlang.

7. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

7.1 Umumiy muammolar va yechimlar

• Zaryadlovchi yoqilmaydi:
  • Verify the DC input voltage is within the 7-35V range.
  • Check power supply connections for correct polarity and secure contact.
  • Elektr ta'minotining to'g'ri ishlashiga ishonch hosil qiling.
• Charging process not starting or stopping unexpectedly:
  • Confirm the battery type and cell count settings match the connected battery.
  • Check that the charging current is set appropriately for the battery.
  • Inspect battery and charger connections for looseness or damage.
  • Ensure the battery is not over-discharged or severely damaged, which might prevent charging.
• Display or navigation issues:
  • If the scroll knob is unresponsive or jumps, try pressing it firmly while turning.
  • Quvvatni uzish va qayta ulash orqali qurilmani qayta ishga tushiring.
  • Consider performing a firmware update if available, as this may resolve software-related issues.

For issues not covered here, please refer to the support section.

8. Kafolat va qo'llab-quvvatlash

Kafolat haqida ma'lumot, texnik yordam yoki xizmat ko'rsatish bo'yicha savollar uchun, iltimos, to'g'ridan-to'g'ri sotuvchi yoki ishlab chiqaruvchiga murojaat qiling. Xarid chekingizni xaridni tasdiqlovchi hujjat sifatida saqlang.

Manufacturer: Bestpriceic (as per product listing)

For the latest information and firmware updates, please visit the official ToolkitRC websaytga kiring yoki ularning qo'llab-quvvatlash kanallariga murojaat qiling.
