Kirish
This manual provides essential information for the safe and proper installation, operation, and maintenance of your Veepeak 30 Amp Flanged Outlet NEMA L14-30R Locking Receptacle. Please read all instructions carefully before installation and use. Retain this manual for future reference.
Xavfsizlik ma'lumotlari
OGOHLANTIRISH: Electrical shock hazard. Improper installation or use can result in serious injury or death. Always follow local electrical codes and consult a qualified electrician if you are unsure about any part of the installation process.
- Always disconnect power at the circuit breaker or fuse box before installing or servicing this device.
- Ensure all wiring connections are secure and correct according to the wiring diagram and local codes.
- Qurilmaning belgilangan elektr ko'rsatkichlaridan oshib ketmang.
- This product is designed for use with NEMA L14-30P compatible plugs only.
- Keep the weatherproof cap closed when the outlet is not in use to protect against moisture and dust.
Paket tarkibi
- 1 x Veepeak 30 Amp NEMA L14-30R Flanged Outlet
- O'rnatish vintlari
Texnik xususiyatlari
| Spetsifikatsiya | Qiymat |
|---|---|
| Amptozalash | 30 Amps |
| jildtage | 125/250 Volts AC |
| NEMA konfiguratsiyasi | L14-30R |
| Poles / Wires | 3 qutbli, 4 simli topraklama |
| Maksimal yuk | 7500 vatt |
| Tavsiya etilgan sim o'lchagich | 10 AWG/4C |
| Material | Polivinilxlorid (PVX) |
| Sertifikatlar | ETL Listed (Conforms to UL & CSA standards) |
| Kerakli teshik o'lchami | 2.5 dyuym |
O'rnatish va o'rnatish
Kerakli vositalar: Screwdriver, wire strippers, drill (for mounting hole), appropriate drill bit.
- O'rnatish joyini tayyorlash: Choose a suitable, dry location for installation. Drill a 2.5-inch diameter hole for the receptacle body. Ensure there is enough space behind the mounting surface for wiring connections.
- Simli ulanishlar:
Refer to the wiring diagram below and the color-coded terminals on the back of the receptacle. Strip approximately 1/2 inch of insulation from each wire. Insert the wires into the corresponding terminals and tighten the screws securely. Ensure no bare wire strands are exposed outside the terminals.
Rasm: orqa view of the L14-30R outlet, displaying the four color-coded terminals for wiring connections (Green for Ground, White for Neutral, Red and Black for Hot).
Image: NEMA L14-30R configuration diagram. 'X' and 'Y' are hot lines (125V each to neutral, 250V between them), 'W' is neutral, and 'G' is ground.
- Green (G): Topraklama simlari.
- Oq (W): Neytral sim.
- Black (X): Hot wire (Line 1).
- Red (Y): Hot wire (Line 2).
- Idishni o'rnatish: Insert the receptacle body into the drilled hole. Secure the flanged outlet to the mounting surface using the provided screws. Ensure it is flush and stable.
- Quvvatni tiklash: Once installation is complete and all connections are verified, restore power at the circuit breaker.

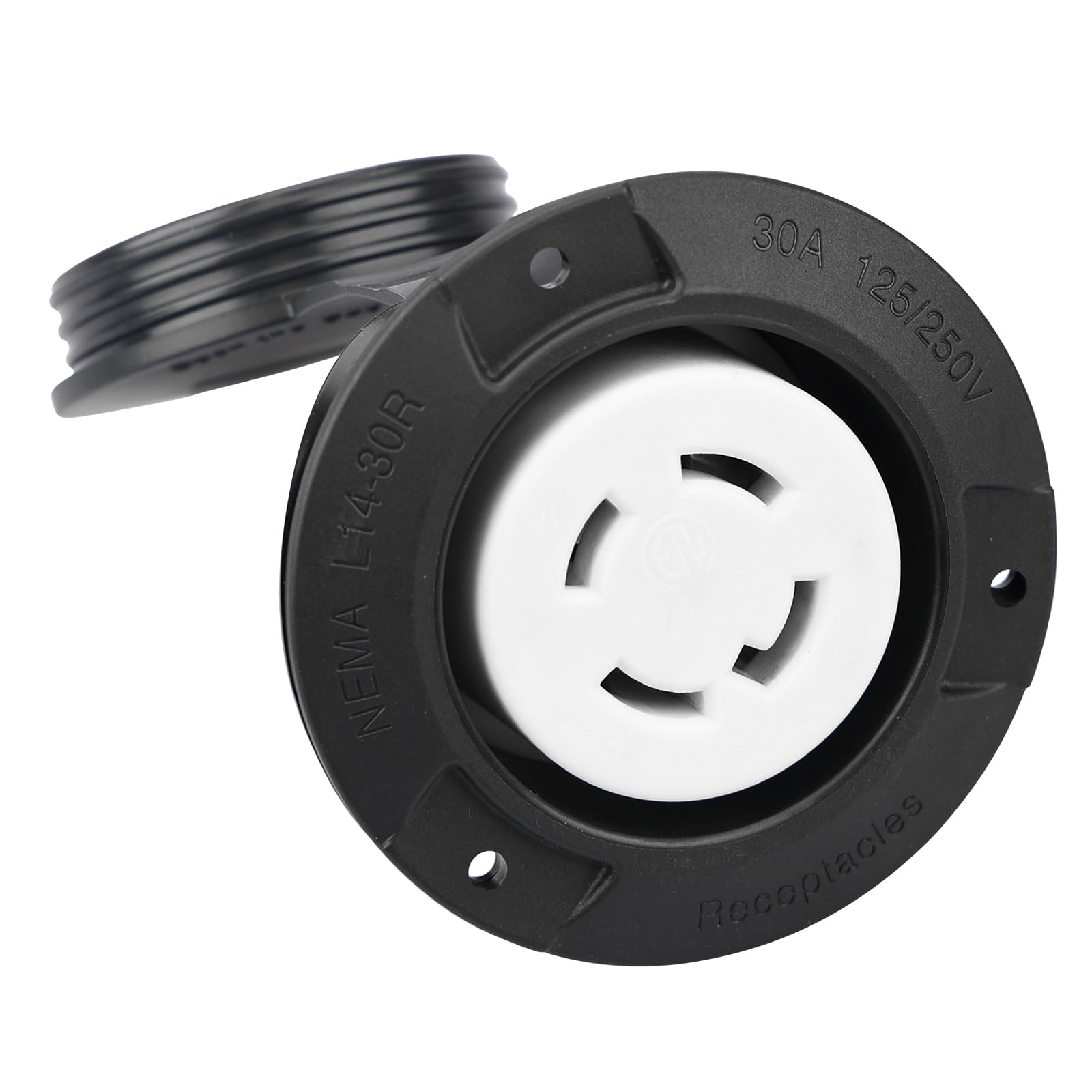

Rasm: old view of the Veepeak L14-30R flanged outlet with its weatherproof cap open, revealing the NEMA L14-30R locking receptacle.
Foydalanish bo'yicha ko'rsatmalar
- Qopqoqni ochish: Lift the weatherproof cap to access the receptacle.
- Connecting a Plug: Align the NEMA L14-30P plug with the receptacle. Insert the plug and twist clockwise to lock it into place. Ensure the plug is fully seated and locked.
- Disconnecting a Plug: Twist the plug counter-clockwise to unlock, then pull it straight out from the receptacle.
- Closing the Cap: When the outlet is not in use, ensure the weatherproof cap is securely closed over the receptacle to protect it from environmental elements like rain, snow, and dust.
Rasm: old view of the Veepeak L14-30R flanged outlet with its weatherproof cap securely closed, providing protection.
Xizmat
Muntazam parvarishlash optimal ishlash va xavfsizlikni ta'minlaydi.
- Tozalash: Periodically clean the exterior of the outlet with a damp cloth. Do not use abrasive cleaners or solvents. Ensure the cap is closed during cleaning.
- Tekshirish: Regularly inspect the outlet for any signs of damage, wear, or corrosion. Check the weatherproof cap for proper sealing.
- Ulanishni tekshirish: Annually, or if issues arise, disconnect power and check the wiring connections for tightness. Loose connections can cause overheating.
Muammolarni bartaraf qilish; nosozliklarni TUZATISH
- Quvvat yo'q:
- O'chirish to'xtatuvchisini yoki sug'urtani tekshiring. Agar yoqilsa, qayta o'rnating.
- Quvvat manbai faol ekanligini tekshiring.
- Ensure the plug is fully inserted and locked into the receptacle.
- Bo'shashgan ulanish:
- If the plug feels loose or power is intermittent, disconnect power and inspect the wiring connections at the back of the receptacle for tightness.
- Inspect the plug on the appliance for damage.
- Damage to Outlet:
- If the outlet housing or terminals show signs of damage, cracking, or burning, discontinue use immediately and replace the unit.
If troubleshooting steps do not resolve the issue, consult a qualified electrician.
Kafolat va qo'llab-quvvatlash
Veepeak provides a one-year hassle-free replacement warranty for this product. For warranty claims or customer service inquiries, please contact Veepeak customer support through the retailer where the product was purchased or visit the official Veepeak websayt.
