VINABTY GZ-12A-E1 Remote Control User Manual

1. Kirish

This manual provides comprehensive instructions for the VINABTY GZ-12A-E1 replacement remote control. Designed for ease of use, this remote is compatible with various YORK Split and Portable AC units, offering convenient control over your air conditioning system.

Compatible YORK AC Models:

• YJDC09FS-AAA
• YJJC07FS-AAA
• YJJC09FS-AAA
• YJDC12FS-AAA
• YJJC12FS-AAA
• YJDC18FS-AAA
• YJJC18FS-AAA
• YJJC24FS-AAA
• GZ-12B-E1
• YJKEC07FS-AAA
• YJKC07FS-AAA
• YJKEC12FS-AAA
• YJKC12FS-AAA
• YJKEC09FS-AAA
• YJKC09FS-AAA
• YJKC18FS-AAA
• YJKC24FS-AAA
• YJDC07FS-AAA

2. Sozlash

2.1 Batareyani o'rnatish

The VINABTY GZ-12A-E1 remote control requires two AAA batteries (not included) for operation. Follow these steps to install the batteries:

1. Masofadan boshqarish pultining orqa tarafidagi batareya bo'limi qopqog'ini toping.
2. Bo'limni ochish uchun qopqoqni pastga suring yoki mandalni bosing va ko'taring.
3. Insert two new AAA batteries, ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
4. Batareya bo'limi qopqog'ini mahkam chertilguncha joyiga surib qo'ying.

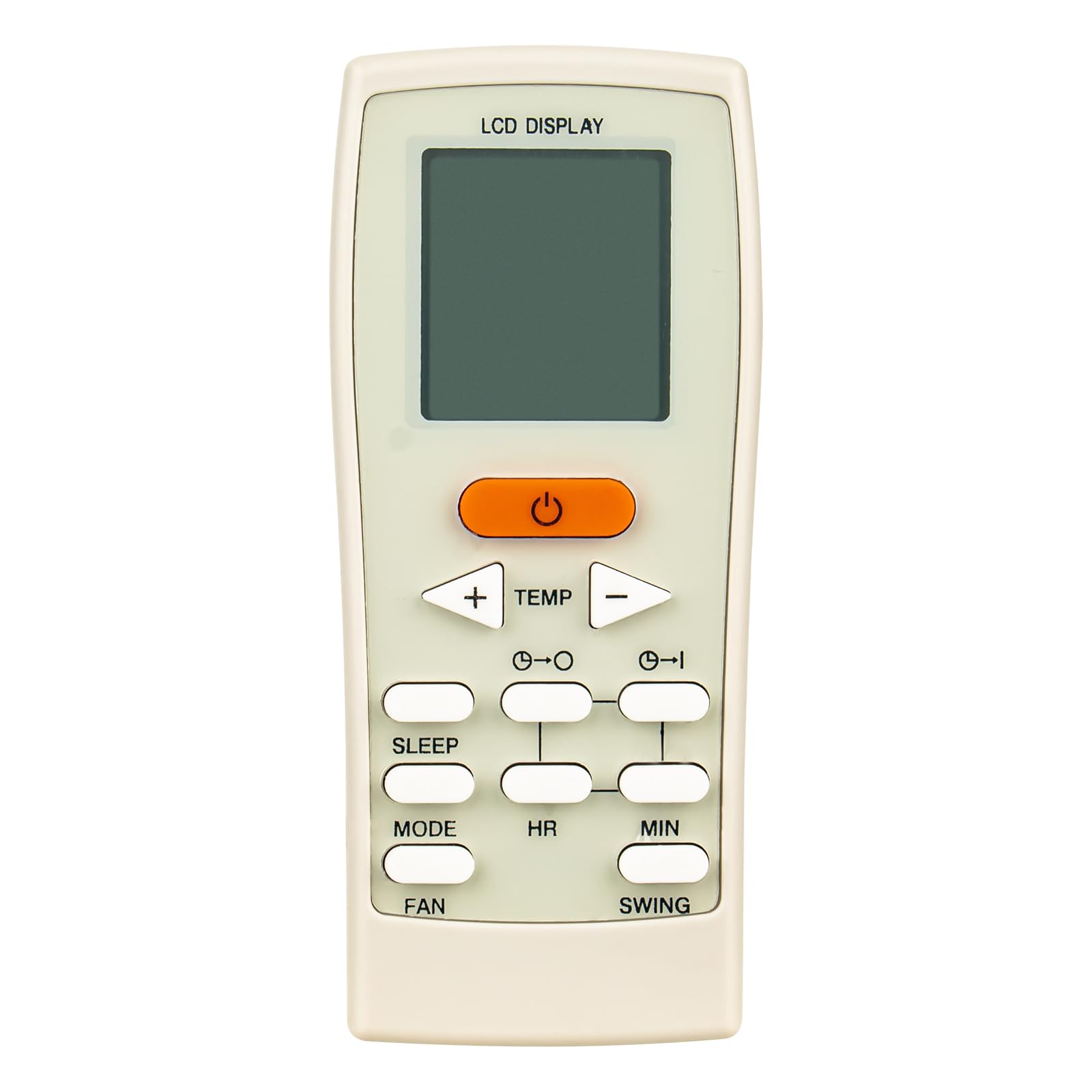

1-rasm: Old view of the VINABTY GZ-12A-E1 remote control, showing its ergonomic design and button layout.

3. Foydalanish bo'yicha ko'rsatmalar

Point the remote control directly at the indoor unit of your AC system. Ensure there are no obstructions between the remote and the AC unit.

3.1 Asosiy funksiyalar

• Quvvat tugmasi: Press to turn the AC unit ON or OFF.
• MODE tugmasi: Cycles through available operating modes: Auto, Cool, Dry, Fan, Heat (if supported by your AC unit).
• TEMP ▲/▼ tugmalari: Adjusts the desired temperature setting. Press ▲ to increase and ▼ to decrease the temperature.
• FAN tugmasi: Selects the fan speed: Auto, Low, Medium, High.
• SWING tugmasi: Activates or deactivates the louver swing function for air direction control.

3.2 Kengaytirilgan funksiyalar

• TIMER tugmasi: Sets the timer for automatic ON/OFF operation. Refer to your AC unit's manual for specific timer programming details.
• SLEEP tugmasi: Activates the sleep mode, which adjusts temperature and fan speed for comfortable sleep and energy saving.
• LIGHT/LED Button: Ichki blokdagi displey chirog'ini YOQadi yoki o'chiradi.
• TURBO/JET Button: Activates maximum cooling or heating for rapid temperature change.

4. Xizmat ko'rsatish

4.1 Batareyani almashtirish

Replace batteries when the remote control's response becomes sluggish or the display dims. Always replace both batteries simultaneously with new AAA batteries. Do not mix old and new batteries, or different types of batteries.

4.2 Masofadan boshqarish pultini tozalash

To clean the remote control, wipe it gently with a soft, dry cloth. Do not use liquid cleaners, abrasive materials, or chemical solvents, as these can damage the remote's surface or internal components.

5. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

• Masofadan boshqarish pulti javob bermayapti:
  • Check if the batteries are correctly installed with the correct polarity.
  • Eski batareyalarni yangi AAA batareyalari bilan almashtiring.
  • Masofadan boshqarish pulti va AC birligi qabul qilgichi o'rtasida hech qanday to'siqlar yo'qligiga ishonch hosil qiling.
  • Masofadan boshqarish pulti to'g'ridan-to'g'ri AC qurilmasiga qaratilganligini tasdiqlang.
• AC unit not receiving signal:
  • Verify that the AC unit is powered on.
  • Check if the remote control's infrared emitter is clean and unobstructed.
  • Test the remote from a closer distance to the AC unit.

6. Texnik shartlar

7. Kafolat va qo'llab-quvvatlash

For warranty information or technical support regarding your VINABTY GZ-12A-E1 remote control, please refer to the documentation provided by your retailer or contact the seller directly. Specific warranty terms and support channels may vary depending on your region and point of purchase.
