AceGamer T47 2.4G simsiz Bluetooth kontrolleri foydalanuvchi qo'llanmasi

1. Kirish

This manual provides detailed instructions for the setup, operation, and maintenance of your AceGamer T47 2.4G Wireless Bluetooth Controller. This controller is designed for multi-platform compatibility, offering a versatile gaming experience across various devices.

Image 1.1: AceGamer T47 Wireless Bluetooth Controller and 2.4G wireless receiver.

2. Paket tarkibi

Iltimos, paketingizda barcha narsalar mavjudligini tekshiring:

• 1x AceGamer T47 Wireless Controller
• 1x USB Type-C Data Cable
• 1x 2.4G Wireless Receiver
• 1x Foydalanuvchi qo'llanmasi (ushbu hujjat)

Image 2.1: Included items in the product package.

3. Controller Layout

Familiarize yourself with the buttons and features of your AceGamer T47 controller:

• Hall effektli joystiklar: Provide precise and reliable input.
• Harakat tugmalari (A, B, X, Y): Standard gaming input.
• D-Pad: Yo'nalishli kiritish.
• Shoulder Buttons (L, R) & Triggers (ZL, ZR): Top-mounted input.
• HOME tugmasi: Power on/off, connection, and system menu access.
• TURBO tugmasi: Activates turbo function for rapid input.
• M1/M2 Orqaga Tugmalari: Customizable for various functions.
• USB-C porti: Zaryadlash va simli ulanish uchun.
• RGB yoritish: Customizable lighting effects around joysticks.

4. Sozlash va ulanish

The AceGamer T47 controller supports three connection modes: 2.4G Wireless, Bluetooth, and Wired.

4.1-rasm: tugadiview of the three connection modes.

4.1. 2.4G Wireless Connection (PC, Switch Docked)

1. Insert the 2.4G wireless receiver into an available USB port on your PC or Switch dock.
2. ni bosing va ushlab turing 'A' button, then simultaneously press and hold the 'HOME' button 3 soniya davomida.
3. The controller will enter pairing mode, indicated by flashing LED lights.
4. Once connected, the LED indicator on the controller will become solid.

4.2. Bluetooth Connection (PC, Switch, iOS, Android)

1. ni bosing va ushlab turing 'HOME' button for 3 seconds to put the controller into Bluetooth pairing mode. The LED lights will flash rapidly.
2. On your device (PC, Switch, iOS, Android), navigate to the Bluetooth settings.
3. Ni qidirish new devices and select "AceGamer T47" (or similar) from the list.
4. Once paired, the LED indicator on the controller will become solid.

4.3. Wired Connection (PC, Switch)

1. Connect the USB Type-C end of the data cable to the controller.
2. Connect the USB-A end of the data cable to an available USB port on your PC or Switch dock.
3. The controller will automatically be recognized by your device.

5. Foydalanish bo'yicha ko'rsatmalar

5.1. Xoll effekti joystiklari

The controller features Hall Effect joysticks, which utilize magnetic sensors for enhanced precision, durability, and reduced drift. This technology ensures accurate and responsive control during gameplay.

Image 5.1: Hall Effect Joystick technology benefits.

5.2. Adjustable Vibration

The dual vibration motors provide haptic feedback, enhancing immersion. The vibration intensity can be adjusted to four different grades (0%, 50%, 80%, 100%) to suit your preference. Refer to the included physical manual for specific button combinations to adjust vibration levels.

Image 5.2: Four-level vibration adjustment.

5.3. Customizable Back Keys (M1, M2)

The controller features two programmable back buttons (M1 and M2). These can be customized to perform single button presses or complex trigger combos, providing additional convenience and strategic options during gameplay. There are also two back button switches for easy access and locking.

To program the back keys, please refer to the detailed instructions in the physical user manual provided with your controller.

Image 5.3: Customizable back keys functionality.

5.4. Turbo funksiyasi

The Turbo function allows for rapid, repeated input of a button press. The controller supports three turbo speeds: 5 shots/s, 12 shots/s, and 20 shots/s. This can be freely switched between manual and auto TURBO mode.

To activate and adjust the Turbo function, consult the specific instructions in your physical user manual.

Image 5.4: Turbo function speeds.

5.5. RGB Lighting Effects

The controller features RGB lighting around the joysticks, offering 7 color combinations and 5 diverse lighting models (Brightness, Breathing, Colorful, Fade-OFF). This allows for personalization of your controller's appearance.

For detailed instructions on how to change the LED colors and lighting effects, please refer to the physical user manual included with your product.

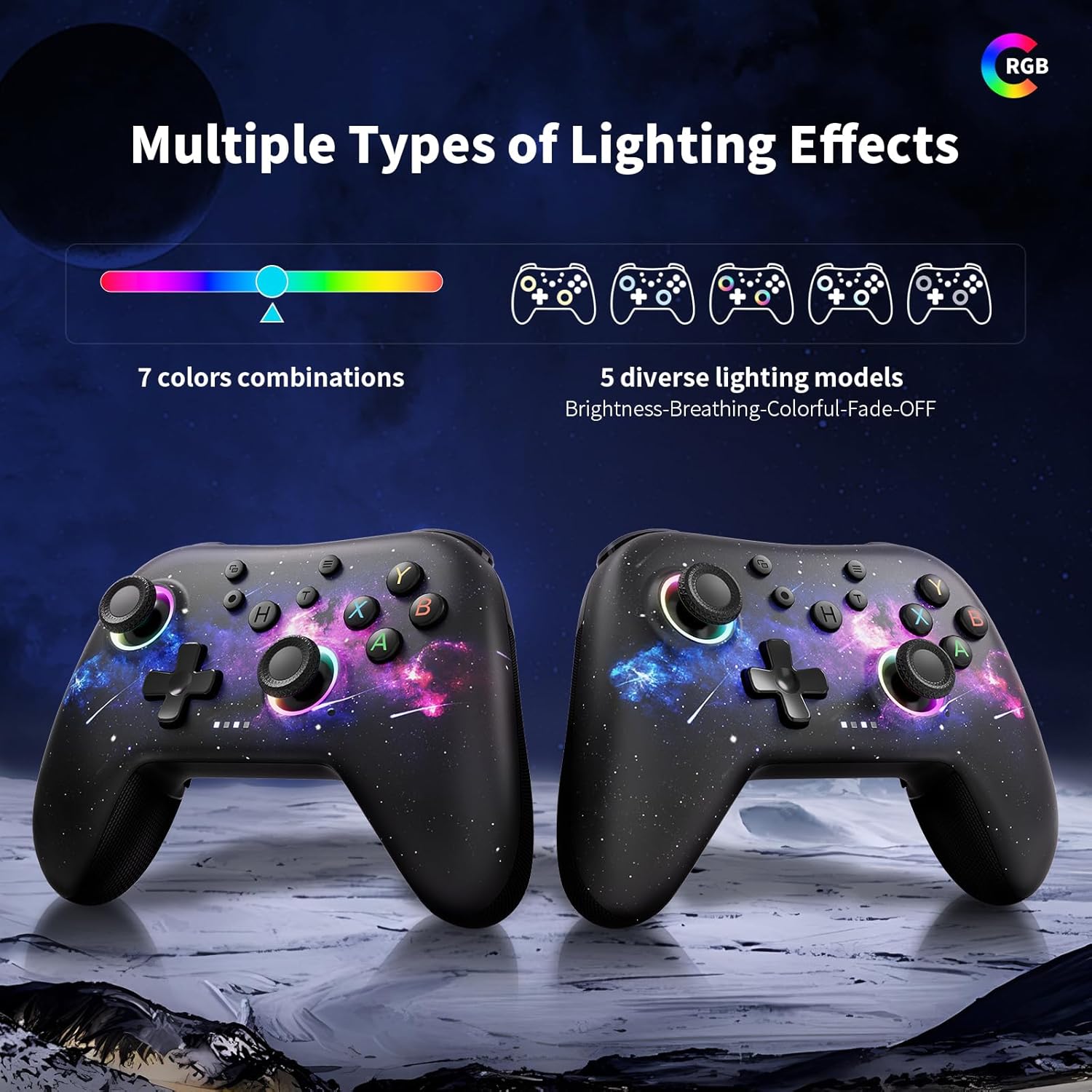

Image 5.5: Multiple types of RGB lighting effects.

6. Zaryadlash va batareya

The AceGamer T47 controller is equipped with a 1000mAh battery, providing extended playtime on a single charge. The charging time is approximately 2-3 hours, offering up to 8 hours of playing time.

• Connect the USB Type-C data cable to the controller's charging port and the other end to a USB power source (e.g., PC, wall adapter).
• The LED indicators around the joysticks will glow and a four-LED charge level indicator will flash during charging.
• Once fully charged, the LED indicators will typically stop flashing or turn off, depending on the controller's state.

Image 6.1: Battery capacity and charging information.

7. Ko'p platformali moslik

The AceGamer T47 controller is designed for broad compatibility, supporting various gaming platforms:

• Kompyuter: Windows operatsion tizimlari bilan mos keladi.
• Nintendo Switch: Connects wirelessly or via wired mode.
• iOS: iOS qurilmalari bilan mos keladi.
• Android: Android qurilmalari bilan mos keladi.

Image 7.1: Supported platforms.

8. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

If you encounter issues with your AceGamer T47 controller, please refer to the following common solutions:

• Tekshirish moslamasi ulanmayapti: Ensure the controller is fully charged. Re-attempt the pairing process for 2.4G or Bluetooth connections. For wired connection, ensure the cable is securely plugged into both the controller and the device.
• Kirish kechikishi yoki uzilishi: Move closer to the receiver/device to reduce interference. Ensure no other wireless devices are causing interference.
• Tugmalar yoki joystiklar javob bermayapti: Try resetting the controller (refer to your physical manual for reset instructions, usually a small pinhole button). Ensure the controller's firmware is up to date if applicable (check manufacturer's websayt).
• LED lights not changing: Consult the specific instructions in your physical user manual for RGB lighting control. There may be a specific button combination or sequence required.
• Vibratsiya ishlamayapti: Check if vibration is enabled in your game settings. Ensure the vibration intensity is not set to 0% on the controller.

If problems persist, please contact AceGamer customer support for further assistance.

9. Texnik shartlar

10. Kafolat va qo'llab-quvvatlash

AceGamer products are designed for quality and reliability. For warranty information, product registration, or technical support, please refer to the warranty card included in your product packaging or visit the official AceGamer websayt. Iltimos, kafolat da'volari uchun sotib olinganligingizni tasdiqlovchi hujjatingizni saqlab qo'ying.
