1. Kirish
Welcome to the user manual for the Autonics TC4S series temperature controllers, models TC4S-24R and TC4S-14R. These devices are designed for precise temperature regulation in various industrial and commercial applications. This manual provides essential information for safe and efficient operation, including installation, setup, operation, maintenance, and troubleshooting. Please read this manual thoroughly before operating the device and keep it for future reference.

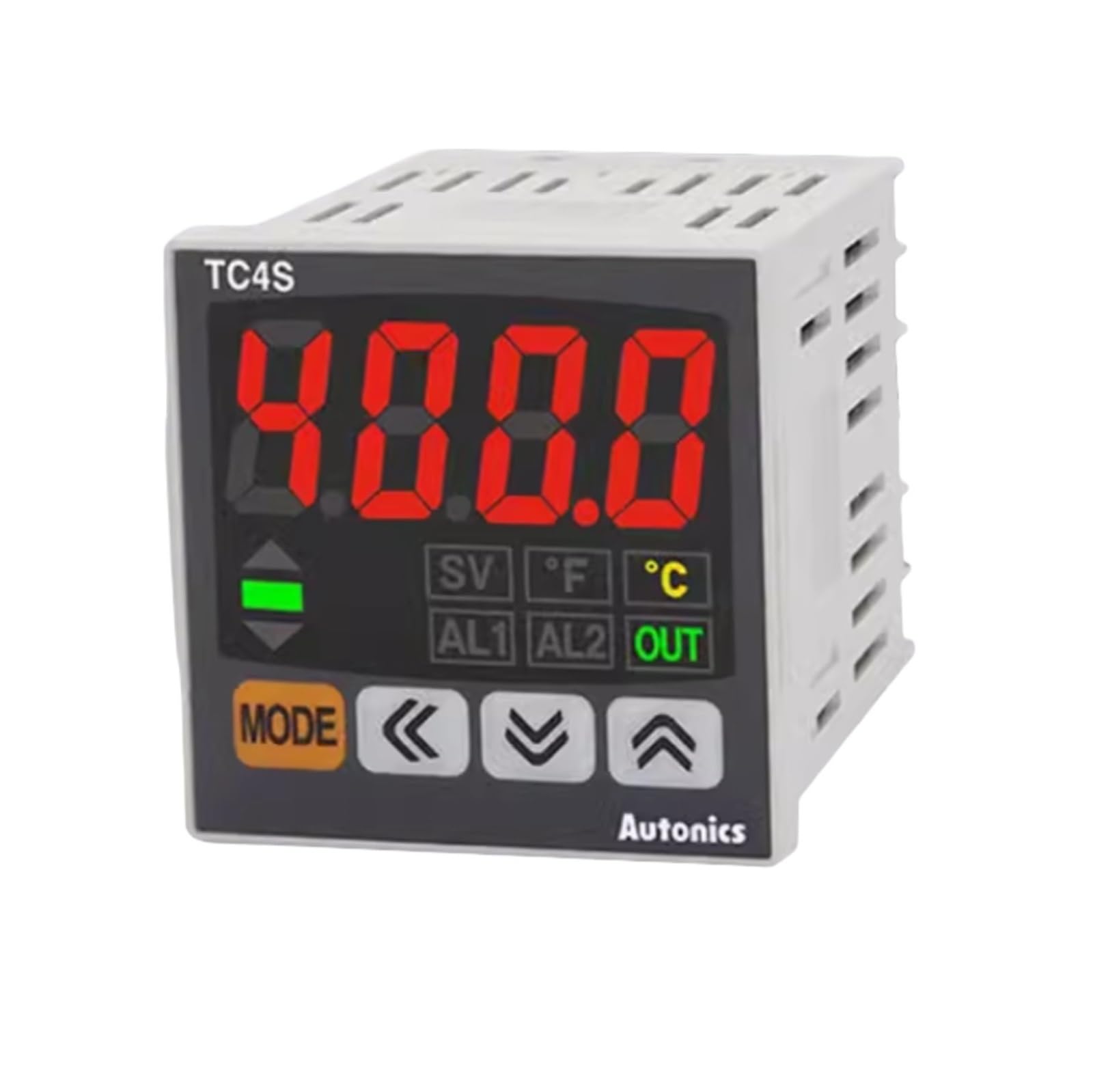

1-rasm: Old view of the Autonics TC4S Temperature Controller. This image shows the display, control buttons, and indicator lights on the front panel of the device.
2. Xavfsizlik choralari
To ensure safe operation and prevent product damage, observe the following safety precautions:
- Har qanday simlarni ulash yoki texnik xizmat ko'rsatishni amalga oshirishdan oldin har doim quvvatni uzing.
- Elektr toki urishining oldini olish uchun to'g'ri erga ulashni ta'minlang.
- Jihozni qismlarga ajratmang yoki o'zgartirmang. Barcha xizmatlarni malakali xodimlarga topshiring.
- Install the unit in an environment free from excessive vibration, dust, moisture, and corrosive gases.
- Belgilangan quvvat manbaidan foydalaning voltage. Noto'g'ri jildtage zarar etkazishi mumkin.
- Ensure all wiring connections are secure and correct according to the wiring diagrams.
3. Mahsulot tugadiview
The Autonics TC4S series temperature controllers feature a compact design and precise control capabilities. Key components include:
- Displey: Shows current temperature (PV) and set temperature (SV).
- Boshqarish tugmalari: Used for setting parameters and navigating menus.
- Ko'rsatkich chiroqlari: Provide status feedback (e.g., output ON, alarm).
- Terminal bloki: Located at the rear for power, sensor input, and control output connections.
4. O'rnatish va simlarni ulash
4.1 O'rnatish
The TC4S series controllers are designed for panel mounting. Ensure adequate space for ventilation and wiring connections. Cut a panel opening of the specified dimensions (refer to specifications for exact cutout size). Insert the controller into the opening and secure it using the provided mounting brackets.
4.2 Bolalar
Connect the power supply, temperature sensor, and control output devices to the terminal block at the rear of the controller. Refer to the wiring diagram typically found on the side of the unit or in the full product datasheet for specific terminal assignments. Ensure all connections are tight and correct to prevent malfunction or damage.
- Quvvatlantirish manbai: Connect to the designated power terminals (e.g., 100-240VAC).
- Sensorli kirish: Connect your temperature sensor (e.g., thermocouple, RTD) to the sensor input terminals. Observe polarity for thermocouples.
- Nazorat chiqishi: Connect your heating/cooling element or relay to the control output terminals. Model TC4S-24R typically features a relay output, while TC4S-14R may have a different output type.
5. Dastlabki sozlash
5.1 Quvvatni yoqish
After completing all wiring, apply power to the controller. The display will typically show the current process value (PV) and the set value (SV). The unit will perform a self-test upon initial power-up.
5.2 Asosiy parametr sozlamalari
Access the parameter settings menu using the designated buttons (e.g., MODE or SET button). Common initial settings include:
- Kirish turi: Select the type of temperature sensor connected (e.g., K-type thermocouple, Pt100 RTD).
- Harorat birligi: Choose between Celsius (°C) or Fahrenheit (°F).
- Boshqarish rejimi: Select between ON/OFF control or PID control, depending on application requirements.
Refer to the detailed parameter list in the full product manual for advanced settings and their functions.
6. Operatsiya
6.1 Setting the Target Temperature (Set Point)
To set the desired temperature, press the SET button. The SV display will flash, allowing you to adjust the value using the UP/DOWN arrow buttons. Press SET again to confirm the new set point.
6.2 Displey indikatorlarini tushunish
- PV (jarayon qiymati): Displays the current measured temperature.
- SV (Qiymatni o'rnatish): Maqsadli haroratni ko'rsatadi.
- OUT ko'rsatkichi: Illuminates when the control output is active (e.g., heating element is ON).
- ALM ko'rsatkichi: Illuminates when an alarm condition is met.
6.3 Boshqarish rejimi
The controller supports different control modes:
- ON/OFF boshqaruvi: The output turns ON when the PV is below the SV and OFF when it exceeds the SV (or vice versa for cooling). This mode is simple but can lead to temperature cycling.
- PID boshqaruvi: Proportional-Integral-Derivative control provides more precise and stable temperature regulation by calculating the required output based on the error, integral of the error, and derivative of the error. Auto-tuning functions are often available to automatically calculate optimal PID parameters.
7. Xizmat ko'rsatish
7.1 Tozalash
Regularly clean the front panel with a soft, dry cloth. Do not use abrasive cleaners, solvents, or water, as these can damage the display or internal components.
7.2 Tekshirish
Periodically inspect wiring connections for looseness or signs of damage. Ensure the ventilation openings are not obstructed. Check for any unusual noises or smells during operation.
7.3 Saqlash
If storing the unit for an extended period, ensure it is kept in a dry, dust-free environment within the specified storage temperature and humidity ranges.
8. Muammolarni bartaraf qilish; nosozliklarni TUZATISH
This section addresses common issues you might encounter with your temperature controller.
| Muammo | Mumkin sabab | Yechim |
|---|---|---|
| Kontroller yoqilmaydi | Elektr ta'minoti yo'q; noto'g'ri simlar; yonib ketgan sug'urta. | Check power connections; verify wiring against diagram; replace fuse if necessary. |
| Incorrect temperature reading (PV) | Sensor disconnected or faulty; incorrect sensor input type setting; sensor outside measurement range. | Check sensor wiring and connection; verify sensor type setting in parameters; ensure sensor is suitable for the temperature range. |
| Chiqish faollashmayapti | Set point not reached; output mode incorrect; faulty output device; alarm condition active. | Adjust set point; check control mode (ON/OFF, PID); test external heating/cooling device; check alarm settings. |
| Harorat keng tebranadi | PID parameters not tuned correctly; ON/OFF control with large hysteresis. | Perform auto-tuning for PID parameters; adjust hysteresis for ON/OFF control. |
9. Texnik shartlar
Key technical specifications for the Autonics TC4S series temperature controllers:
- Modellar: TC4S-24R, TC4S-14R
- Tekshirish usuli: ON/OFF nazorat qilish, P, PI, PD, PID nazorati
- Kirish sensori: Thermocouple (K, J, T, E, N, R, S, B, C, G, L, U, P), RTD (Pt100, JPt100) - Specific types may vary by model.
- Chiqish turi: Relay output (TC4S-24R), SSR drive output, Current output - Specific type varies by model.
- Quvvatlantirish manbai: 100-240VAC 50/60Hz (standard), 24VAC 50/60Hz / 24-48VDC - Maxsus jildtage modelga qarab farq qiladi.
- Ko'rsatish usuli: 7-segment LED (PV: red, SV: green)
- Tekshirish aniqligi: ±0.5% FS ±1 digit (thermocouple/RTD)
- Material: Plastik casing
- Ishlash harorati: -10°C dan 50°C gacha (14°F dan 122°F gacha)
- Ishlash namligi: 35 dan 85% gacha RH (kondensatsiz)
10. Kafolat va qo'llab-quvvatlash
This Autonics temperature controller is covered by a standard manufacturer's warranty against defects in materials and workmanship. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for warranty claims.
For technical support, service, or warranty inquiries, please contact your authorized Autonics distributor or the customer support department. Provide the model number (TC4S-24R or TC4S-14R) and a detailed description of the issue when seeking assistance.
For the most up-to-date contact information and detailed warranty terms, please visit the official Autonics websaytga yoki xaridingiz bilan birga taqdim etilgan hujjatlarga murojaat qiling.
