The Joso Simhon01 Controller is a high-performance USB-C mobile gaming controller designed to transform your smartphone into a dedicated gaming device. It offers precise controls and a comfortable ergonomic design for an immersive gaming experience.
The Joso Simhon01 Controller with a smartphone inserted, ready for gaming. This controller is designed to provide a console-like experience on your mobile device.
Komponentlar va xususiyatlar
Familiarize yourself with the key components and advanced features of your Joso Simhon01 Controller:
This diagram highlights the key components of the Joso Simhon01 Controller:
(A) 3.5mm Audio Jack: Compatible with headsets with or without microphones.
(B) USB-C Charging Port: Supports charging while you play, allowing for continuous gaming.
(C) USB-C Connection Port: Provides a Type-C wired connection with the lowest possible latency.
(D) TURBO Function: Supports manual and auto Turbo functions to improve skill.
(E) Hall Effect Joysticks: Offers accuracy of up to 0.1 mm, preventing rocker drift and ensuring smooth range of motion.
(F) Hall Effect Triggers: Analog triggers with 100% Response Area and excellent consistent smoothness.
- USB-C Mobile Gaming Controller: Direct wired connection for minimal latency.
- Hall Effect Technology: Utilizes Hall Effect sensors for joysticks and triggers, ensuring high precision, durability, and preventing stick drift.
- O'tish orqali zaryadlash: Charge your phone while gaming through the controller's USB-C port.
- 3.5 mm audio uyasi: Connect your wired headphones directly to the controller for immersive audio.
- Programmable Rear Buttons: Two customizable back buttons (L4/R4) for enhanced gameplay.
- Makroyozuv funktsiyasi: Create and assign complex button sequences to the programmable back buttons.
Sozlash; o'rnatish
Inserting Your Smartphone
The Joso Simhon01 Controller is designed for easy and secure smartphone integration.
- Gently expand the controller's sides to create an opening for your smartphone.
- Align your USB-C compatible smartphone with the central USB-C connection port (C) on the controller.
- Carefully push your phone into the controller until the USB-C port is fully connected and the phone is securely seated.
The controller supports ultra-low latency 3.5mm audio output and pass-through charging, allowing you to connect your headset and charge your phone simultaneously while gaming.
Dastlabki ulanish
The controller connects directly via USB-C, eliminating the need for Bluetooth pairing.
- Once your phone is securely connected, the controller should automatically power on.
- If the controller indicator does not light up after plugging in your mobile, simply push the sides of the controller into the center to ensure a firm and complete connection.
- For some Android phones, you may need to enable OTG (On-The-Go) in your phone's settings for the controller to function correctly.
Foydalanish bo'yicha ko'rsatmalar
Asosiy boshqaruv elementlari
The Joso Simhon01 Controller features standard gaming controls for intuitive gameplay:
- A/B/X/Y tugmalari: Standard action buttons for in-game commands.
- D-Pad: Directional pad for precise movement and menu navigation.
- Hall Effect Joysticks (E): Dual analog sticks for 360-degree movement and camera control, offering superior accuracy and preventing drift.
- Hall Effect Triggers (F): Analog triggers (LT/RT) for precise input in racing, shooting, and other games.
- Shoulder Buttons (LB/RB): Digital buttons located on the top of the controller.
- Turbo Function (D): Activate for rapid, repeated button presses. Refer to the in-app settings for configuration.
Supported Games and Platforms
The Joso Simhon01 Controller is compatible with a wide range of games and platforms:
The Joso Simhon01 Controller is designed for broad compatibility, supporting games from the App Store and Play Store, various cloud gaming services, Xbox Remote Play, PS4/PS5 Remote Play, and Steam Link for PC streaming.
- Mobile Games: Supports a vast library of games available on the App Store and Google Play Store.
- Bulutli oʻyinlar: Compatible with popular cloud gaming services.
- Masofadan oʻynatish: Seamlessly integrates with Xbox Remote Play and PS4/PS5 Remote Play for console gaming on your phone.
- PC Streaming: Use with Steam Link for streaming PC games to your mobile device.
Customization and Software

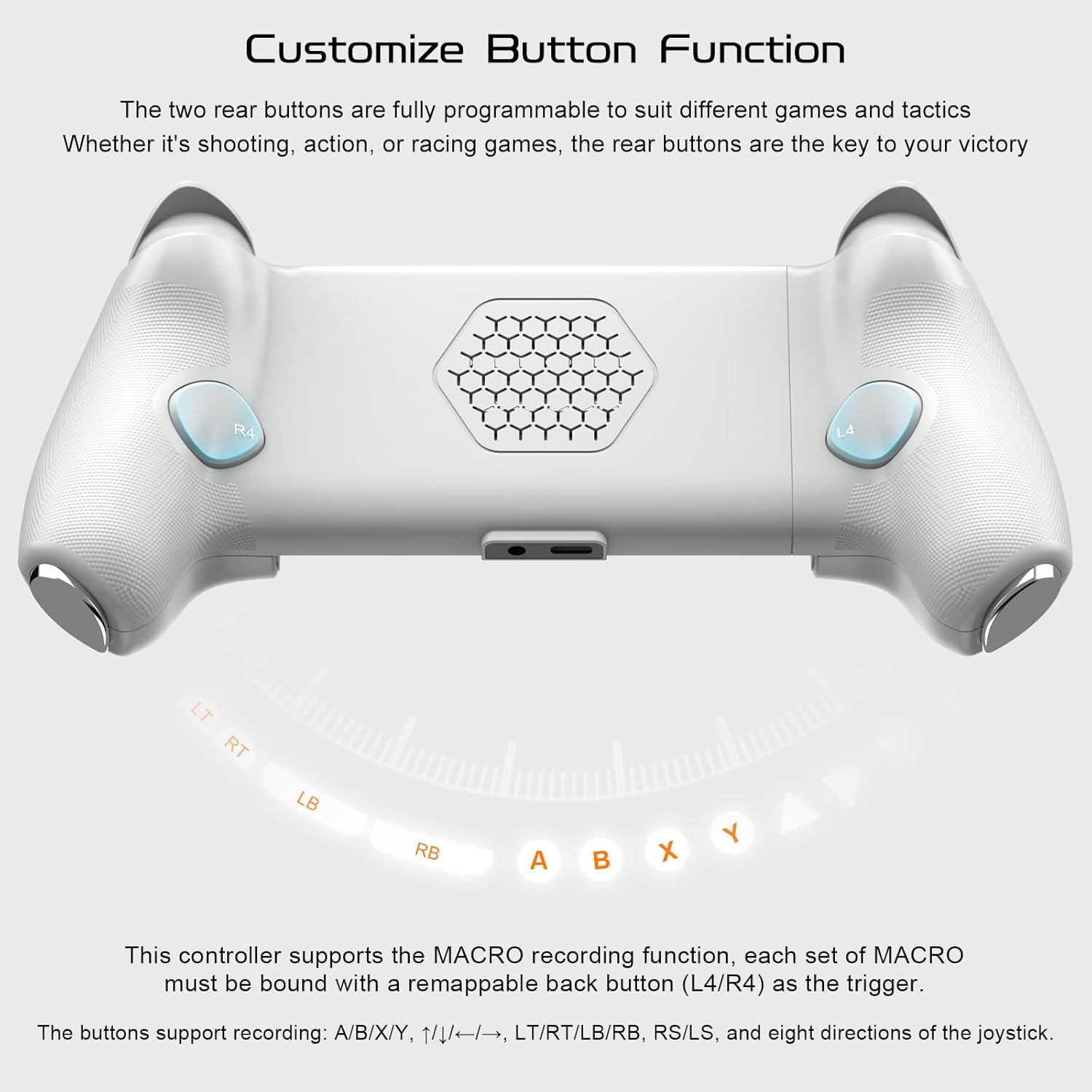

Button Function Customization
The controller offers advanced customization options to tailor your gaming experience.
The two rear buttons (L4/R4) are fully programmable to suit different games and tactics. The controller also supports a MACRO recording function, where each set of MACROs must be bound to a remappable back button (L4/R4) as the trigger. Supported buttons for recording include A/B/X/Y, directional inputs, LT/RT/LB/RB, RS/LS, and eight directions of the joystick.
- Programmable Rear Buttons (L4/R4): These two buttons can be assigned to any other button function, providing quick access to critical commands without lifting your thumbs from the joysticks.
- Makroyozuv: Record a sequence of button presses and assign it to a programmable rear button. This allows for complex actions to be executed with a single press.
MooWii Gaming APP
For comprehensive customization and fine-tuning, download the MooWii Gaming APP.
Enhance your gaming experience with the MooWii Gaming APP, available on the App Store and Google Play. This application allows for advanced customization, including Keys Mapping, Joystick Deadzone Setting, Trigger Lever Setting, and Controller Test Function. Note: Some Android phones may require OTG to be enabled for the controller to power on and function.
- Keys Mapping: Remap any button on the controller to your preferred function.
- Joystick Deadzone Setting: Adjust the deadzone of the joysticks for personalized sensitivity.
- Trigger Lever Setting: Fine-tune the response curve of the analog triggers.
- Controller Test Function: Diagnose and verify the functionality of all buttons and sticks.
Moslik
The Joso Simhon01 Controller is designed to be broadly compatible with modern smartphones.
The controller is designed for phones between 115-193mm (4.5-7.6 inches) in length. It is recommended to use the controller without a phone case or with a case within 1mm thickness. It works with iPhone 15 & 16 Series and most Android phones, including various Samsung Galaxy S and Note series, LG, Honor, OnePlus, Realme, and Xiaomi models. It is compatible with USB-C phones running Android and iPhone 15 & 16 Series. It does not work with iPhone 14 series and older Lightning devices.
- Phone Dimensions: Supports smartphones with a length between 115mm and 193mm (4.5-7.6 inches).
- Case muvofiqligi: For optimal fit and connection, it is recommended to use the controller without a phone case or with a case that is within 1mm thickness.
- Operatsion tizim: Works with USB-C phones running Android and iPhone 15 & 16 Series.
- Mos kelmaydigan qurilmalar: Does not work with iPhone 14 series and older Lightning devices.
Texnik xususiyatlari
- Model raqami: Simhon 01
- Ulanish turi: USB-C simli
- Ovoz chiqishi: 3.5 mm raz'em
- Zaryadlash: Pass-through USB-C
- Joystik turi: Hall effekti
- Trigger turi: Hall Effect Analog
- Ishlab chiqaruvchi: SHENZHEN JIAYINGHUANQIU TECHNOLOGY CO., LTD.
Muammolarni bartaraf qilish; nosozliklarni TUZATISH
- Kontroller yoqilmaydi:
Ensure your mobile phone is securely plugged into the USB-C port. If the indicator light does not illuminate, gently push the sides of the controller inwards to ensure a firm connection. For some Android phones, enabling OTG (On-The-Go) in your phone's settings may be required. - Input Lag or Unresponsive Controls:
Verify the USB-C connection is clean and free of debris. Ensure your phone's operating system is up to date. Close any background applications that may be consuming significant resources. For optimal performance, ensure your phone is within the recommended size range and not using an overly thick case. - Audio bilan bog'liq muammolar:
If using a 3.5mm headset, ensure it is fully plugged into the controller's audio jack. Check your phone's audio settings to ensure output is directed correctly. - Buttons Not Responding or Incorrectly Mapped:
Check the MooWii Gaming APP for custom key mappings or macro settings that might be overriding default functions. Use the Controller Test Function within the app to diagnose specific button issues.
Xizmat
- Tozalash: Use a soft, dry cloth to wipe the controller. Avoid using abrasive cleaners, solvents, or excessive moisture, as these can damage the device.
- Saqlash: Store the controller in a cool, dry place away from direct sunlight and extreme temperatures. When not in use, ensure it is protected from dust and spills.
- Ishlov berish: Avoid dropping the controller or subjecting it to strong impacts. Do not attempt to disassemble the controller, as this will void the warranty and may cause irreparable damage.
Kafolat va qo'llab-quvvatlash
For warranty information and technical support, please refer to the product packaging or contact Joso customer service through their official website or the retailer where the product was purchased. Please retain your proof of purchase for all warranty claims.
