Kirish
This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your Lenovo V15 (83CC0053IN) laptop. Please read this document thoroughly to ensure proper use and to maximize the lifespan of your device.

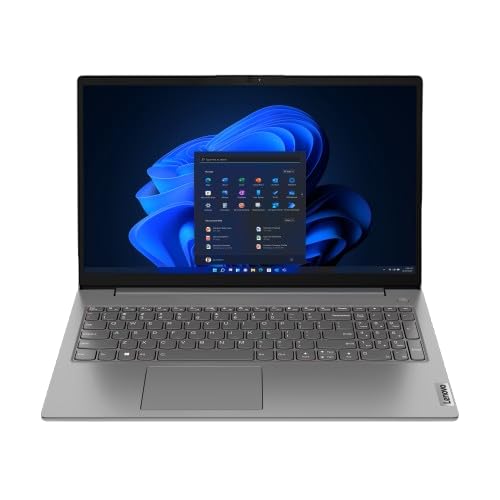

Image: The Lenovo V15 laptop, showcasing its full display and keyboard. The screen displays a graphical user interface, indicating a functional system.
Sozlash; o'rnatish
1. Paketni ochish
Paketdagi barcha komponentlarni ehtiyotkorlik bilan olib tashlang. Quyidagi elementlar mavjudligini tekshiring:
- Lenovo V15 Laptop
- Quvvat adapteri
- Foydalanuvchi uchun qo'llanma (ushbu hujjat)
2. Quvvatga ulanish
Connect the power adapter to the laptop's power input port and then plug the adapter into a grounded electrical outlet. The battery will begin charging automatically.

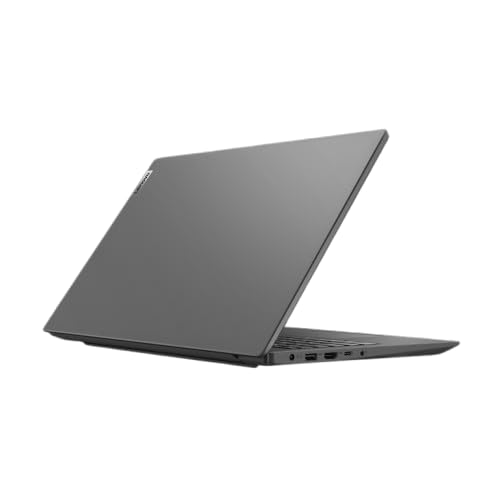

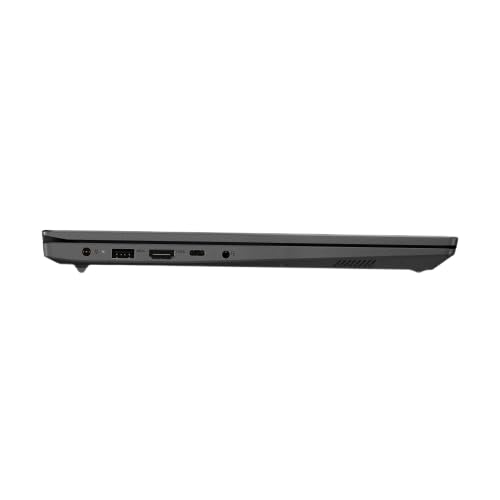

Rasm: Yon mutaxassisfile of the Lenovo V15 laptop, highlighting the various ports available for connectivity, including the power input.
3. Dastlabki yuklash
Press the power button located on the keyboard deck to turn on the laptop. Since the laptop comes with DOS, you will need to install an operating system (e.g., Windows, Linux) to utilize its full functionality. Follow the on-screen prompts or your chosen operating system's installation guide.
Noutbuk bilan ishlash
Quvvatni yoqish/o‘chirish
- Yoqilgan: Quvvat tugmasini bosing.
- O'chirish: From your operating system, select the shutdown option. Alternatively, press and hold the power button for several seconds for a forced shutdown (use only when necessary).
Klaviatura va sensorli panel
The laptop features a 6-row, spill-resistant keyboard with multimedia Fn keys and a numeric keypad. The buttonless Mylar surface multi-touch touchpad supports Precision TouchPad gestures.
Image: A clear top-down view of the Lenovo V15 laptop's keyboard, including the numeric keypad, and the integrated touchpad below.
Tashqi qurilmalarni ulash
The Lenovo V15 offers various ports for connecting peripherals:
- USB portlari: 1x USB 2.0, 1x USB 3.2 Gen 1, 1x USB-C 3.2 Gen 1 (supports data transfer, Power Delivery (20V only), and DisplayPort 1.2).
- HDMI: 1x HDMI 1.4b for connecting to external displays.
- Ethernet: 1x RJ-45 port for wired network connection.
- Audio: 1x Eshitish vositasi/mikrofon birlashgan uyasi (3.5 mm).
Xizmat
Noutbukni tozalash
- Bir oz yumshoq, tuklarsiz matodan foydalaning dampdispleyni tozalash uchun suv yoki ekran tozalagich bilan ishlang.
- Klaviatura va shassi uchun yumshoq matodan foydalaning. Qattiq kimyoviy yoki abraziv materiallardan saqlaning.
- Tozalashdan oldin noutbuk o'chirilganligiga va elektr tarmog'idan uzilganligiga ishonch hosil qiling.
Batareya parvarishi
- Tez-tez batareyani to'liq zaryadsizlantirishdan saqlaning.
- Agar uzoq vaqt ishlatilmasa, noutbukni salqin va quruq joyda saqlang.
- Batareyani haddan tashqari haroratga ta'sir qilmang.
Saqlash
When storing the laptop, especially for long durations, ensure it is turned off and disconnected from power. Protect it from dust and extreme environmental conditions.
Muammolarni bartaraf qilish; nosozliklarni TUZATISH
This section addresses common issues you might encounter with your Lenovo V15 laptop.
Quvvat yo'q
- Quvvat adapteri ham noutbukga, ham ishlaydigan elektr rozetkaga mahkam ulanganligiga ishonch hosil qiling.
- Elektr rozetkasining ishlashini boshqa qurilmaga ulash orqali tekshiring.
- Batareya to'liq zaryadsizlangan bo'lsa, yoqishdan oldin uni bir necha daqiqa zaryad qilishiga ruxsat bering.
Ko'rsatish muammolari
- If the screen is blank, try adjusting the display brightness using the keyboard function keys.
- If an external monitor is connected, ensure the display output is correctly configured (e.g., duplicate, extend).
- Laptopni qayta ishga tushiring.
Peripheral Not Detected
- Ensure the peripheral is correctly plugged into the appropriate port.
- Try connecting the peripheral to a different port or another device to confirm its functionality.
- Laptopni qayta ishga tushiring.
Texnik xususiyatlari
| Xususiyat | Tafsilot |
|---|---|
| Model | Lenovo V15 (83CC0053IN) |
| Protsessor | 13-avlod Intel Core i7-13620H (10 yadro, 4.9 gigagertsgacha) |
| Xotira (RAM) | 16GB DDR4 3200 MHz (upgradable up to 16GB) |
| Saqlash | 512GB SSD M.2 (upgradable up to 1TB) |
| Operatsion tizim | DOS |
| Displey | 15.6" FHD (1920x1080) Antiglare, 250 nits |
| Grafika | Intel UHD Graphics (DirectX 12.1) |
| Portlar | 1x USB 2.0, 1x USB 3.2 Gen 1, 1x USB-C 3.2 Gen 1 (data/PD/DP), 1x HDMI 1.4b, 1x Ethernet (RJ-45), 1x Headphone/mic combo, 1x Power Connector |
| Klaviatura | 6 qatorli, to'kilmasin, multimedia Fn tugmalari, raqamli klaviatura |
| Sensorli panel | Buttonless Mylar surface multi-touch, Precision TouchPad support |
| Og'irligi | 1.65 kg |
| Batareyalar | 1 AAA battery required (included) - 38 Wh Lithium-Ion (2 cells) |
Kafolat va qo'llab-quvvatlash
Your Lenovo V15 laptop comes with a 1-year Carry-in Warranty. To avail of service, visit your nearest authorized service center.
It is recommended to register your laptop's warranty, starting from the date of your Amazon invoice. You can do this by visiting the official Lenovo support portal:
Image: A graphic detailing the 1-year carry-in warranty and providing instructions and a link for warranty registration via the Lenovo support websayt.
