KKnoon E24848 Electric Wood Trimmer Router User Manual

1. Kirish

This manual provides comprehensive instructions for the safe and effective use of your KKnoon E24848 Electric Wood Trimmer Router. This versatile power tool is designed for various woodworking tasks, including trimming, grooving, carving, and drilling in wood and other materials. Please read this manual thoroughly before operation and retain it for future reference.

2. Xavfsizlik bo'yicha ko'rsatmalar

Yong'in, elektr toki urishi va shaxsiy jarohatlar xavfini kamaytirish uchun har doim asosiy xavfsizlik choralariga rioya qiling.

• Ish maydoni xavfsizligi: Ish joyingizni toza va yaxshi yoritilgan holda saqlang. Tartibsiz yoki qorong'i joylar baxtsiz hodisalarni chaqiradi. Elektr asboblarini portlovchi muhitda, masalan, yonuvchan suyuqliklar, gazlar yoki changlar mavjud bo'lganda ishlatmang.
• Elektr xavfsizligi: Elektr asbob vilkalari rozetkaga mos kelishi kerak. Hech qachon vilkani hech qanday tarzda o'zgartirmang. Tuproqli yoki tuproqli yuzalar bilan tana aloqa qilishdan saqlaning. Elektr asboblarini yomg'ir yoki nam sharoitda qoldirmang.
• Shaxsiy xavfsizlik: Always wear eye protection, dust mask, non-skid safety shoes, hard hat, or hearing protection as appropriate. Do not overreach. Keep proper footing and balance at all times. Dress properly; avoid loose clothing or jewelry.
• Asbobdan foydalanish va parvarish qilish: Elektr asbobini majburlamang. Ilovangiz uchun to'g'ri elektr asbobidan foydalaning. Har qanday sozlash, aksessuarlarni almashtirish yoki elektr asboblarni saqlashdan oldin vilkasini quvvat manbaidan uzing.
• Xizmat: Elektr asboblarini saqlang. Elektr moslamasining ishlashiga ta'sir qilishi mumkin bo'lgan harakatlanuvchi qismlarning noto'g'ri joylashuvi yoki bog'lanishi, qismlarning sinishi va boshqa holatlarni tekshiring.

3. Paket tarkibi

Paketni ochishda barcha narsalar mavjudligini tekshiring:

• Electric Trimmer (with transparent base) x 1
• Router Bit Set (15 pieces) x 1
• Trim Guide Base x 1
• Straight Trim Guide Ruler x 1
• X 1 vint
• Carbon Brush x 2
• Kalit x 2
• Guide Line x 1

4. Mahsulot xususiyatlari va komponentlari

Familiarize yourself with the main parts of your electric trimmer:

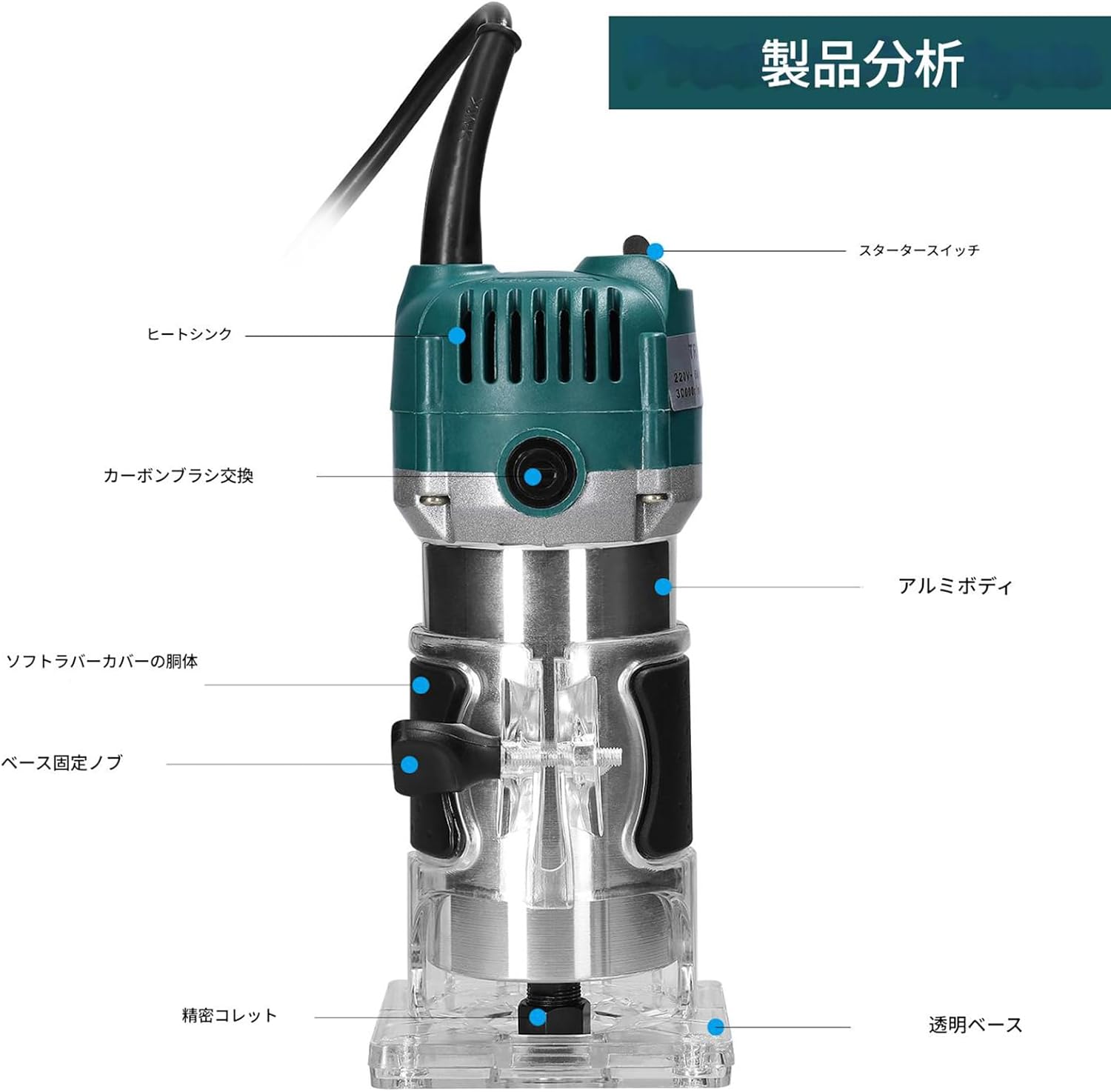

Rasm: Product analysis diagram highlighting key components such as the starter switch, heat sink, carbon brush access, aluminum body, soft rubber cover, base fixing knob, precision collet, and transparent base.

• Bardoshli qurilish: The main body is constructed from aluminum and plastic, with an internal aluminum heat dissipation fan for efficient cooling and extended tool life. The exterior is waterproof, dustproof, and durable.
• Shaffof asos: Allows for clear observation of the cutting process, ensuring precision and control.
• Tightening Adjustment Knob: Enables precise adjustment of the transparent cover's tightness.
• External Carbon Brush Design: Facilitates easy replacement of carbon brushes, enhancing safety and convenience.
• Kengaytirilgan quvvat simi: Provides a wider working range.
• Sirpanmaydigan tutqich: High-quality rubber handle with non-slip pads ensures a comfortable grip and precise control, reducing fatigue during prolonged use.

5. Sozlash

Follow these steps to prepare your trimmer for operation:

Rasm: Batafsil view of the guide bracket, transparent base, tightening adjustment knob, and the included 15-piece router bit set.

1. Installing a Router Bit:
   • Asbobning elektrdan uzilganligiga ishonch hosil qiling.
   • Taqdim etilgan kalit yordamida gaykani bo'shating.
   • Insert the desired router bit into the collet, ensuring it is fully seated.
   • Kalit bilan gaykani mahkam torting.
2. Kesish chuqurligini sozlash:
   • Place the trimmer on the workpiece.
   • Loosen the base fixing knob.
   • Adjust the trimmer body up or down until the router bit reaches the desired cutting depth.
   • Tighten the base fixing knob securely.
3. Attaching Guide Bases:
   • For straight cuts, attach the straight trim guide ruler to the transparent base using the provided screw.
   • For curved or edge trimming, attach the trim guide base.

6. Foydalanish bo'yicha ko'rsatmalar

Har doim ish qismi ishonchli clamped before starting. Wear appropriate personal protective equipment.

Rasm: The electric trimmer being used in a workshop setting for woodworking tasks.

1. Quvvatni yoqish/oʻchirish: Plug the tool into a suitable power outlet. Use the starter switch to turn the trimmer ON and OFF.
2. Kesishni boshlash: Hold the trimmer firmly with both hands. Allow the motor to reach full speed before contacting the workpiece.
3. Kesish: Guide the trimmer smoothly and steadily along the desired cutting line. Apply consistent pressure. Avoid forcing the tool, as this can lead to poor cut quality and motor strain.
4. Types of Operations:
   • Kesish: Use appropriate bits for edge profiling or flush trimming.
   • Kanal ochish: Use straight bits and the straight guide ruler for creating grooves.
   • O‘ymakorlik/Gravyura: Select specialized bits for detailed work.
   • Teshik burg'ulash: For specific applications, use appropriate bits and ensure stable positioning.
5. Tugatish: Once the cut is complete, lift the trimmer from the workpiece before turning it off.

7. Xizmat ko'rsatish

Muntazam texnik xizmat ko'rsatish optimal ishlashni ta'minlaydi va asbobingizning ishlash muddatini uzaytiradi.

• Tozalash: After each use, unplug the tool and clean dust and debris from the motor vents and transparent base using a soft brush or compressed air. Do not use solvents or abrasive cleaners.
• Karbon cho'tkasini almashtirish: The carbon brushes are external for easy access. When the motor performance decreases or sparks become excessive, the carbon brushes may need replacement. Unscrew the brush caps, remove the old brushes, and insert new ones. Ensure the new brushes are seated correctly before replacing the caps.
• Kolletga texnik xizmat ko'rsatish: Keep the collet and collet nut clean and free of debris to ensure proper bit gripping.
• Saqlash: Trimmerni quruq, xavfsiz, bolalar qo'li etmaydigan joyda saqlang.

8. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

Umumiy muammolar va ularning yechimlari uchun ushbu bo'limga qarang.

Muammo davom etsa, mijozlarni qo'llab-quvvatlash xizmatiga murojaat qiling.

9. Texnik shartlar

Rasm: Diagram illustrating the dimensions of the electric trimmer: 206mm (8.11in) height, 90mm (3.54in) width, and 87mm (3.43in) depth.

10. Kafolat va qo'llab-quvvatlash

For warranty information or technical support, please refer to the retailer or manufacturer's official websayt. Xarid kvitansiyasini xaridni tasdiqlovchi hujjat sifatida saqlang.
