KOOSMILE Mini PC N150 (Model N80) User Manual

1. Kirish

This manual provides detailed instructions for the KOOSMILE Mini PC N150 (Model N80). This device is a compact and portable computer featuring an 8-inch multi-touch display, designed for various applications from daily tasks to light entertainment. Please read this manual thoroughly before using the product to ensure proper operation and to maximize its lifespan.

1.1-rasm: The KOOSMILE Mini PC N150, showcasing its integrated 8-inch touchscreen and various connectivity ports.

Asosiy xususiyatlar:

• Protsessor: Twin Lake N150 CPU (4 cores, 4 threads, up to 3.6 GHz)
• Xotira: 12 GB DDR5 operativ xotira
• Saqlash: 256GB M.2 SSD (expandable, other variants available)
• Displey: 8-inch HD multi-touch screen
• Ulanish: WiFi 6, Bluetooth 5.2, Dual RJ45 Ethernet
• Portlar: 2x USB 3.0, 2x USB 2.0, HDMI, DisplayPort, Full-function Type-C, 3.5mm Audio Jack, TF Card Slot
• Operatsion tizim: Windows 11 Pro
• Batareya: Integrated 5000mAh battery for portable use

2. Paket tarkibi

Qutini ochgandan so'ng paketda barcha narsalar mavjudligiga ishonch hosil qiling:

• KOOSMILE Mini PC N150 (Model N80)
• Quvvat adapteri
• HDMI kabeli
• DP kabeli
• Foydalanuvchi uchun qo'llanma (ushbu hujjat)

3. Mahsulot tugadiview (Ports and Features)

Familiarize yourself with the various ports and features of your Mini PC for optimal connectivity and usage.

3.1-rasm: Batafsil view of the KOOSMILE Mini PC N150's 12-port design, highlighting each port's function.

Port tavsiflari:

• USB 3.0 portlari (x2): Mos qurilmalar bilan yuqori tezlikda ma'lumotlarni uzatish uchun.
• USB 2.0 portlari (x2): For connecting standard USB peripherals like keyboards and mice.
• HDMI porti: Connects to external displays, TVs, or projectors for video and audio output.
• DisplayPort (DP): Connects to external displays for high-resolution video output.
• Full-function Type-C Port: Supports 4K@60Hz video output, data transfer, and power delivery.
• RJ45 Ethernet Ports (x2): Simli tarmoq ulanishlari uchun.
• 3.5 mm audio uyasi: Eshitish vositalarini yoki tashqi dinamiklarni ulash uchun.
• TF karta uyasi: For expanding storage or transferring data from TF cards.
• Quvvat tugmasi: Qurilmani yoqish/o‘chirish uchun.

3.2-rasm: The integrated adjustable metal bracket allows for flexible viewburchaklar.

4. O'rnatish bo'yicha qo'llanma

4.1 Quvvatni ulash

1. Connect the provided power adapter to the power input port on the Mini PC.
2. Quvvat adapterini rozetkaga ulang.
3. The device is now ready for initial power on.

4.2 Dastlabki yuklash va Windows-ni sozlash

1. Press the power button located on the side of the Mini PC.
2. The device will boot up, and the 8-inch touchscreen will display the Windows 11 Pro setup wizard.
3. Dastlabki Windows sozlamalarini, jumladan, til, mintaqa, tarmoq ulanishi va foydalanuvchi hisobini yaratishni yakunlash uchun ekrandagi ko'rsatmalarga amal qiling.

4.3 Periferik qurilmalarni ulash

You can connect external devices such as a keyboard, mouse, and external monitors.

• Klaviatura va sichqoncha: Connect USB keyboards and mice to the available USB 2.0 or USB 3.0 ports. Wireless peripherals can be connected via Bluetooth 5.2.
• External Monitors: Use the provided HDMI or DP cables to connect to external displays. The full-function Type-C port also supports video output.

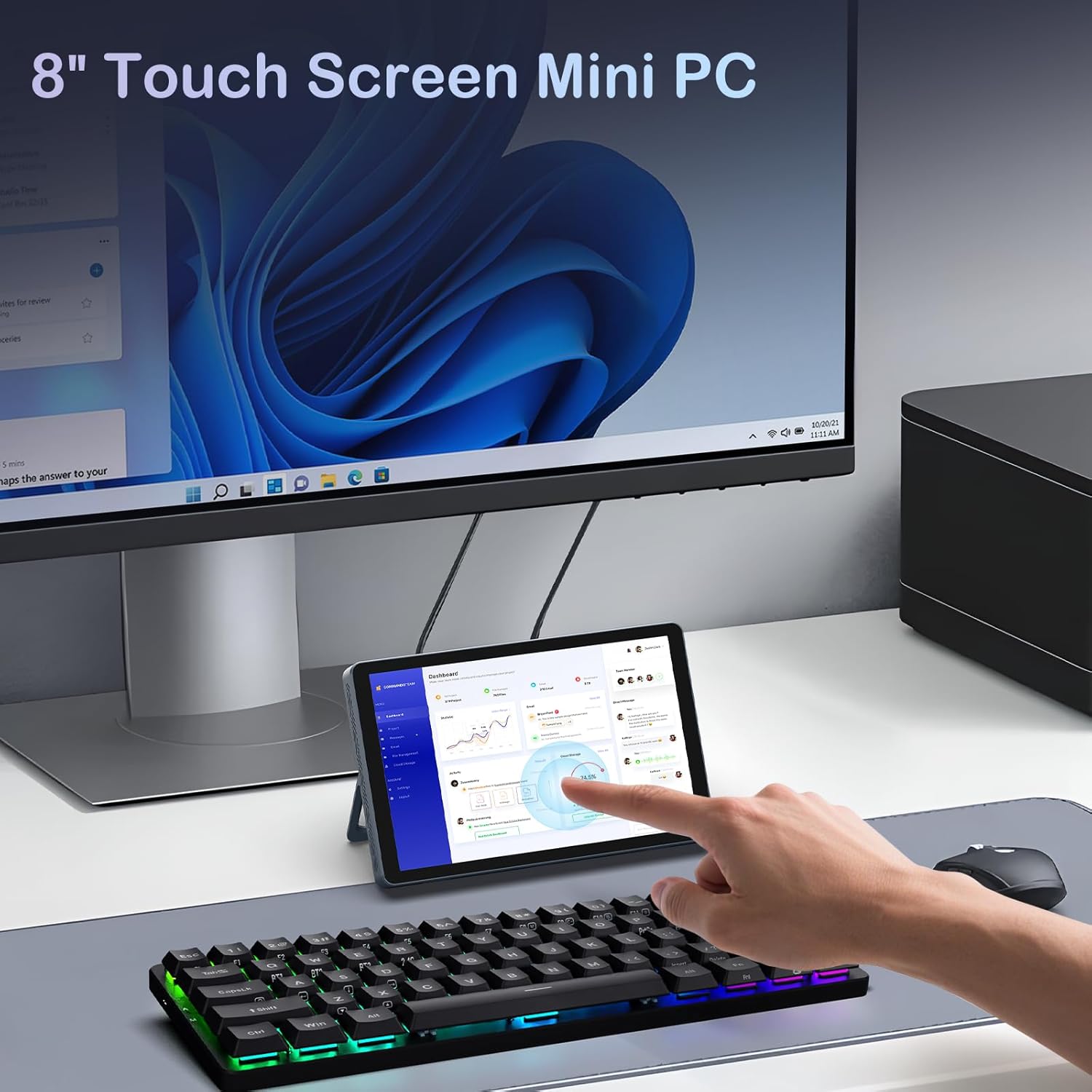

4.1-rasm: The Mini PC N150 in a desktop setup, utilizing an external monitor and peripherals.

4.4 Tarmoqqa ulanish

• Wi-fi: During Windows setup or via Windows settings, connect to your preferred Wi-Fi 6 network.
• Ethernet: Connect an Ethernet cable from your router or modem to one of the two RJ45 ports on the Mini PC for a wired network connection.

5. Foydalanish bo'yicha ko'rsatmalar

5.1 Sensorli ekrandan foydalanish

The 8-inch display supports multi-touch gestures, allowing for intuitive interaction with Windows 11 Pro. Use standard touch gestures for navigation, scrolling, zooming, and selecting items.

5.2 Connecting External Displays (Dual Display)

The Mini PC supports dual 4K displays simultaneously via HDMI, DisplayPort, and the full-function Type-C port. This allows for an extended desktop experience.

1. Connect your external monitors using the appropriate cables (HDMI, DP, or Type-C).
2. Once connected, Windows will automatically detect the displays. You can configure display settings (extend, duplicate, or second screen only) via the Display Settings in Windows.

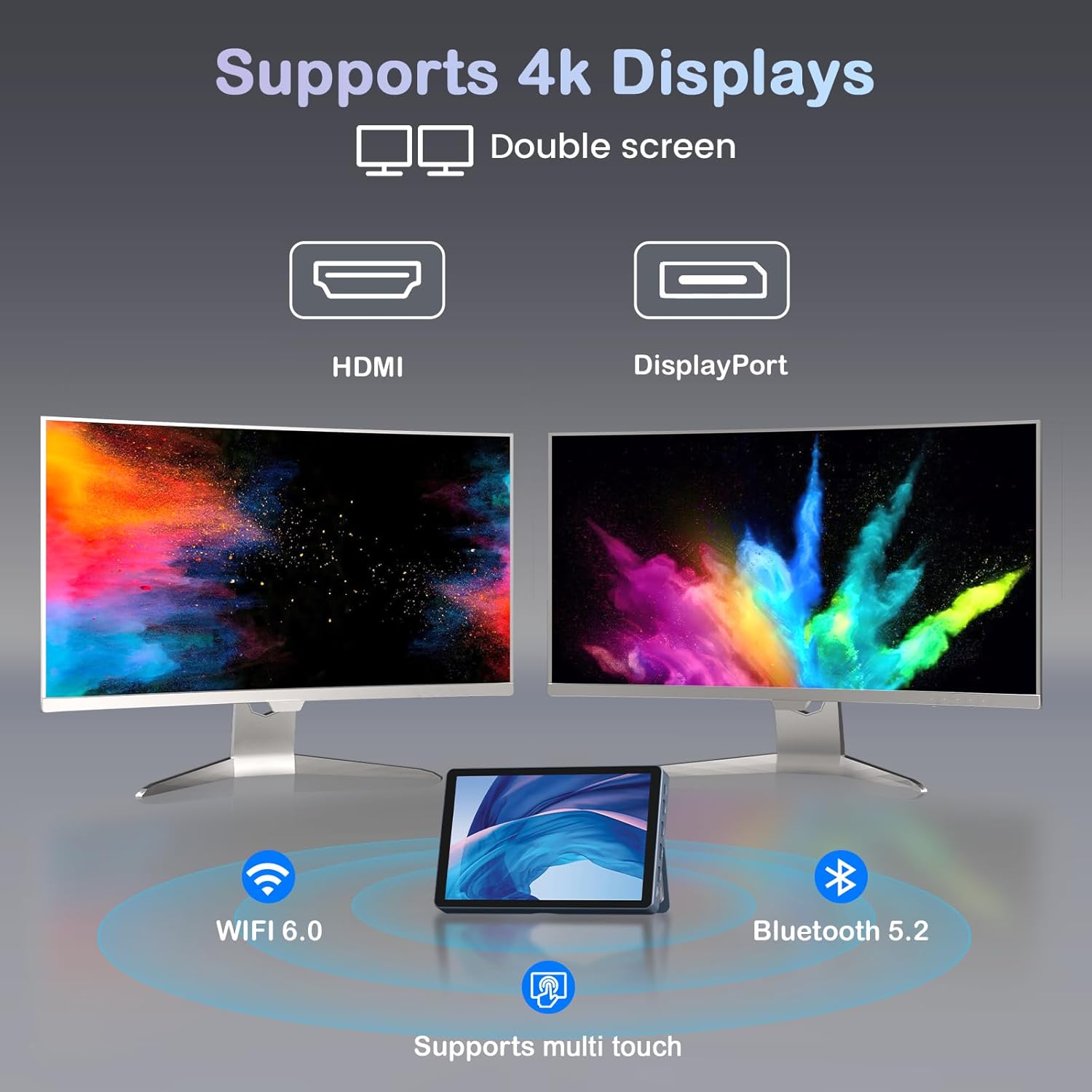

5.1-rasm: The Mini PC N150 supporting a dual 4K monitor setup, enhancing productivity.

5.3 Batareyani boshqarish

The integrated 5000mAh battery provides power for portable use. The battery also supports charging other devices via its Type-C port.

• Charging the Mini PC: Connect the power adapter to fully charge the internal battery.
• Tashqi qurilmalarni zaryadlash: Use a compatible USB-C cable to connect your smartphone or other devices to the Mini PC's full-function Type-C port for charging. Ensure the Mini PC has sufficient battery charge.

5.2-rasm: The Mini PC N150 can provide power to charge other portable devices.

5.4 Adjusting the Integrated Stand

The Mini PC features an adjustable metal bracket on its rear, allowing you to set the device at various viewqulay foydalanish uchun burchaklar.

1. Gently pull out the metal bracket from the back of the device.
2. Adjust the bracket to your desired angle (e.g., 45 degrees or 165 degrees) to prop up the screen.
3. Ensure the bracket is stable before releasing qurilma.

6. Xizmat ko'rsatish

6.1 Tozalash

• Use a soft, dry, lint-free cloth to clean the exterior of the device.
• For the touchscreen, use a screen-specific cleaning solution and a microfiber cloth. Avoid harsh chemicals.
• Tozalashdan oldin qurilma o'chirilgan va elektr tarmog'idan uzilganligiga ishonch hosil qiling.

6.2 Saqlash hajmini kengaytirish

The Mini PC comes with an M.2 SSD, which can be upgraded. Refer to the manufacturer's guidelines or a qualified technician for storage upgrades to avoid voiding the warranty or damaging the device.

• The device supports M.2 SSDs.
• Consult the technical support team for recommended compatible M.2 SSD types and installation procedures.

7. Muammolarni bartaraf qilish; nosozliklarni TUZATISH

If you encounter issues with your KOOSMILE Mini PC N150, refer to the following common troubleshooting steps:

• Quvvat yo'q:
  • Quvvat adapteri Mini PC va ishlaydigan elektr rozetkasiga ishonchli ulanganligiga ishonch hosil qiling.
  • Elektr rozetkasining ishlashini boshqa qurilmaga ulash orqali tekshiring.
  • If using the battery, ensure it is charged.
• No Display on External Monitor:
  • Check that the HDMI, DP, or Type-C cable is securely connected to both the Mini PC and the monitor.
  • Tashqi monitor yoqilganligiga va to'g'ri kirish manbasiga o'rnatilganligiga ishonch hosil qiling.
  • Agar mavjud bo'lsa, boshqa kabel yoki monitorni sinab ko'ring.
• Wi-Fi/Bluetooth ulanish muammolari:
  • Windows sozlamalarida Wi-Fi/Bluetooth yoqilganligiga ishonch hosil qiling.
  • Mini kompyuteringizni va router/modemingizni qayta ishga tushiring.
  • Check for updated network drivers in Device Manager.
• Sensorli ekran javob bermayapti:
  • Restart the Mini PC.
  • Ekran toza va axlatdan xoli ekanligiga ishonch hosil qiling.
  • Check for updated touchscreen drivers.

If these steps do not resolve the issue, please contact KOOSMILE technical support for further assistance.

8. Texnik shartlar

The following table outlines the technical specifications for the KOOSMILE Mini PC N150 (Model N80):

9. Kafolat va qo'llab-quvvatlash

KOOSMILE is committed to providing reliable products and customer satisfaction.

• Kafolat: Each KOOSMILE Mini PC N150 comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects and hardware malfunctions under normal use.
• Texnik yordam: We offer lifetime technical support for your product. Our professional after-sales team is available 24 hours a day to assist you with any technical inquiries or issues.
• Mijozlarga xizmat ko'rsatish: For responsive customer service, please refer to the contact information provided on the KOOSMILE official websayt yoki xarid platformangiz.
